homebuildy.com Electrical conduit provides superior protection by fully enclosing wires in a durable metal or plastic tube, making it ideal for environments requiring high durability and resistance to physical damage. Wire mold, on the other hand, consists of surface-mounted raceways that are easier and quicker to install but offer less protection and are better suited for simple wiring needs or retrofit projects. Choosing between electrical conduit and wire mold depends on the level of protection needed, installation complexity, and aesthetic preferences.
Table of Comparison
| Feature | Electrical Conduit | Wire Mold |
|---|---|---|
| Material | Metal (steel, aluminum), PVC | Plastic or metal surface raceways |
| Installation | Embedded or surface-mounted, requires bending tools | Surface-mounted, easy snap-on installation |
| Protection | High - protects wiring from physical damage and moisture | Moderate - protects wiring mostly from physical damage |
| Applications | Industrial, outdoor, wet locations, harsh environments | Office, commercial, retrofit, indoor dry locations |
| Code Compliance | Meets NEC requirements for exposed and underground wiring | Meets NEC for surface raceways, limited for wet areas |
| Cost | Higher initial cost, durable long-term | Lower cost, easier to install and reconfigure |
| Flexibility | Rigid or flexible conduits available | Modular sections, easy to expand or modify |
| Maintenance | Less frequent, requires tools to access wiring | Easy access for wiring changes or upgrades |
Overview of Electrical Conduit and Wire Mold
Electrical conduit provides a rigid or flexible protective tubing system for electrical wiring, ensuring durability, protection against physical damage, and compliance with electrical codes. Wire mold is a surface-mounted raceway system designed for easy installation and modification, primarily used for organizing and concealing wires in commercial and residential settings. Both systems enhance safety and aesthetics but differ in installation methods, protection levels, and typical applications.
Key Differences Between Electrical Conduit and Wire Mold
Electrical conduit is a robust protective tubing made from metal or PVC that encloses electrical wiring, offering superior mechanical protection and compliance with stringent electrical codes. Wire mold, composed of surface-mounted raceways typically made from plastic or metal, provides easier installation and access for wiring changes without extensive wall work. Key differences include conduit's durability and code compliance versus wire mold's convenience and flexibility for retrofits or surface mounting.
Material Types: Electrical Conduit vs Wire Mold
Electrical conduit is typically made from durable materials such as steel, aluminum, or PVC, providing robust protection against physical damage and environmental factors. Wire mold, often constructed from plastic or metal composites, offers a more aesthetic and flexible solution for surface wiring in commercial and residential spaces. The choice between electrical conduit and wire mold depends on the installation environment, with conduits preferred for heavy-duty applications and wire molds suited for accessible, low-impact areas.
Applications: Where to Use Conduit vs Wire Mold
Electrical conduit is ideal for environments requiring high durability and protection against physical damage, such as industrial settings, outdoor installations, and areas with exposure to moisture or chemicals. Wire mold is better suited for commercial interiors and offices where easy access for wiring modifications and a clean aesthetic are priorities. Conduit is preferred in construction projects demanding code compliance and superior electrical safety, while wire mold is favored for retrofit applications and flexible wiring solutions.
Installation Process Comparison
Electrical conduit installation involves rigid or flexible tubing that requires precise cutting, threading, and secure mounting, ensuring protection for wiring in exposed or hazardous areas. Wire mold installation is generally faster and less labor-intensive, utilizing surface-mounted channels that snap open and closed for easy wire placement and accessibility. Conduit systems demand more skill and time due to the need for conduit bending and secure fittings, while wire mold offers a straightforward setup ideal for retrofit applications or areas with limited structural modifications.
Aesthetics and Space Considerations
Electrical conduit offers a streamlined, concealed wiring solution that enhances aesthetics by minimizing visible components and maintaining smooth wall surfaces. Wire mold, while easier to install, tends to be bulkier and more visually intrusive, potentially disrupting interior design coherence. Space considerations favor electrical conduit systems in tight or high-traffic areas where flush installation preserves room functionality and reduces trip hazards.
Durability and Protection Levels
Electrical conduit offers superior durability and protection compared to wire mold, as it is typically made from robust materials like steel or PVC that resist impact, corrosion, and environmental hazards. Conduits provide a continuous, enclosed pathway, safeguarding wiring from physical damage, moisture, and chemical exposure, essential in industrial or outdoor applications. Wire mold, while easier to install and aesthetically flexible, generally offers lower protection against harsh conditions and mechanical stresses.
Cost Analysis: Electrical Conduit vs Wire Mold
Electrical conduit generally involves higher upfront material and installation costs due to its rigid structure and labor-intensive setup, but offers superior durability and long-term protection for electrical wiring. Wire mold systems tend to have lower initial expenses and simpler installation, making them cost-effective for surface-mounted applications and temporary setups. Evaluating total cost of ownership requires considering maintenance, replacement frequency, and specific project requirements to determine the most economical choice between electrical conduit and wire mold.
Code Compliance and Safety Standards
Electrical conduit offers superior protection for wiring by meeting stringent National Electrical Code (NEC) and Underwriters Laboratories (UL) safety standards, making it ideal for areas requiring enhanced durability and grounding. Wire mold systems provide ease of access and installation but may not satisfy code requirements for exposed or certain high-risk environments where conduit is mandated. Ensuring compliance with NEC Article 300 and UL listings is critical to maintaining electrical safety and preventing potential hazards like physical damage or fire.
Choosing the Right Solution for Your Project
Electrical conduit provides superior protection for wiring in harsh environments, making it ideal for outdoor and industrial applications where durability and compliance with electrical codes are critical. Wire mold offers a flexible and aesthetically pleasing option for indoor projects requiring easy installation and access to cables without extensive wall modifications. Evaluating factors such as environment, installation complexity, code requirements, and budget ensures selecting the most effective solution for your electrical wiring needs.

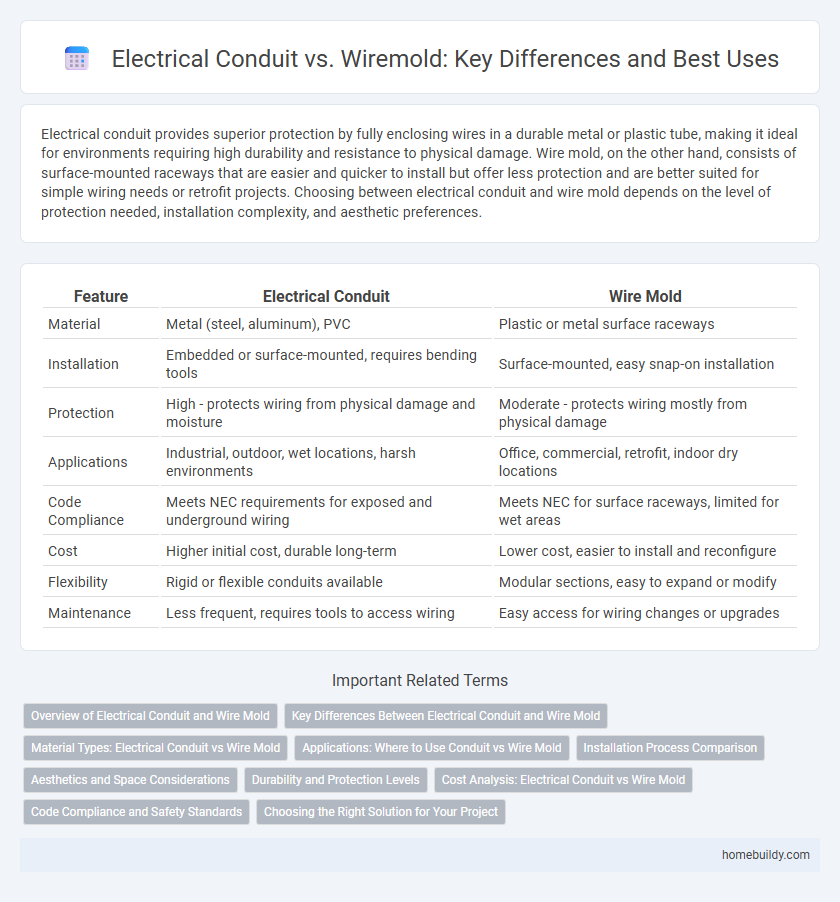

Electrical conduit vs Wire mold Infographic
