homebuildy.com Conduit wiring offers enhanced protection for electrical cables by enclosing them in a metal or plastic tube, reducing the risk of damage and electrical hazards compared to surface wiring. Surface wiring is easier and quicker to install, making it suitable for temporary setups or less demanding environments. However, conduit wiring provides better durability and organized routing, ideal for long-term or industrial applications.
Table of Comparison
| Feature | Conduit Wiring | Surface Wiring |
|---|---|---|
| Definition | Electrical wires run inside protective metal or PVC conduits embedded in walls or floors. | Electrical wires fixed directly on surface walls using clips or plastic casing. |
| Protection | High protection against mechanical damage, moisture, and corrosion. | Lower protection; wires exposed to external damage and weather elements. |
| Installation Cost | Higher due to materials and labor for embedding conduits. | Lower, faster installation with minimal materials. |
| Maintenance | Requires conduit removal for repairs; more complex. | Easier access; quick repairs and modifications. |
| Aesthetics | Neat, concealed wiring suitable for permanent installations. | Visible wiring; less aesthetic appeal. |
| Applications | Residential, commercial buildings needing durable wiring. | Temporary setups, industrial workshops, or low-budget projects. |
Introduction to Conduit and Surface Wiring
Conduit wiring involves running electrical wires through protective tubes, typically made of metal or plastic, which safeguard the wiring from physical damage and environmental factors, ensuring long-term durability and safety. Surface wiring, in contrast, is installed openly on walls or ceilings without additional protective coverings, making it easier and faster to install but more vulnerable to damage. The choice between conduit and surface wiring depends on factors such as installation environment, safety requirements, and maintenance considerations.
Key Differences Between Conduit and Surface Wiring
Conduit wiring involves running electrical cables through protective metal or plastic tubes, offering enhanced safety, durability, and resistance to physical damage, while surface wiring runs cables along or on walls without such protective enclosures. Conduit systems provide superior protection against moisture, fire hazards, and mechanical impact, making them ideal for industrial or outdoor settings, whereas surface wiring is easier and faster to install, preferable for temporary or low-risk environments. Maintenance of conduit wiring is more complex but ensures longer lifespan and compliance with stringent electrical codes, contrasting with the accessibility and flexibility of surface wiring for quick modifications.
Advantages of Conduit Wiring
Conduit wiring offers superior protection against physical damage, moisture, and chemical exposure, extending the lifespan of electrical cables and enhancing overall safety. It facilitates easier maintenance and future upgrades by allowing wires to be pulled through conduits without the need for extensive remodeling. Additionally, conduit wiring provides improved fire resistance and reduces the risk of electrical faults caused by external interference.
Pros and Cons of Surface Wiring
Surface wiring offers easy access for maintenance and modifications, reducing labor time and costs compared to conduit wiring embedded in walls. However, surface wiring is more exposed to physical damage, environmental factors, and potential tampering, which can impact safety and durability. It is ideal for temporary setups or locations where concealed wiring is impractical, but may not meet aesthetic or regulatory requirements in finished spaces.
Installation Process: Conduit Wiring vs Surface Wiring
Conduit wiring involves encasing electrical cables within metal or PVC tubes, requiring precise cutting, fitting, and securing of conduits to walls or ceilings, which ensures enhanced protection and durability but extends installation time. Surface wiring installs cables externally along walls or ceilings using clips or channels, allowing easier access for maintenance and faster installation while offering less protection from physical damage. The choice between conduit and surface wiring installation depends on factors such as environmental conditions, safety requirements, and ease of future upgrades.
Safety Considerations in Conduit and Surface Wiring
Conduit wiring offers superior safety by protecting electrical cables from physical damage, environmental factors, and fire hazards due to its rigid or flexible metal or PVC encasement. Surface wiring, exposed on walls or ceilings, is more susceptible to accidental impact, wear, and moisture, increasing risks of short circuits and electrical shock. Proper conduit installation enhances grounding and insulation integrity, reducing potential electrical faults and enhancing overall system safety.
Cost Comparison: Conduit vs Surface Wiring
Conduit wiring typically incurs higher initial costs due to materials such as metal or PVC pipes and labor-intensive installation processes compared to surface wiring, which uses exposed cables secured with clips on walls. Surface wiring offers lower upfront expenses, making it a cost-effective choice for temporary setups or budget-conscious projects, but it may lead to increased maintenance costs and reduced durability over time. Conduit wiring provides better protection against physical damage and environmental factors, potentially reducing long-term repair and replacement expenses despite its higher starting cost.
Applications and Ideal Environments
Conduit wiring is ideal for industrial and commercial settings where protection from physical damage, moisture, and corrosive elements is critical, such as factories, warehouses, and outdoor installations. Surface wiring is better suited for residential or temporary setups where easy access for maintenance and modifications is required, like interior rooms and temporary event spaces. Applications demanding durability and safety prioritize conduit systems, while surface wiring fits environments favoring cost-effectiveness and simplicity.
Maintenance and Durability
Conduit wiring offers superior durability by protecting cables within rigid or flexible pipes, reducing exposure to physical damage and environmental factors, which significantly lowers maintenance requirements. Surface wiring, typically exposed or installed on walls without protective coverings, is prone to wear, accidental impacts, and environmental degradation, leading to more frequent repairs and replacements. Choosing conduit wiring enhances long-term system reliability and reduces maintenance costs due to its robust protective properties.
Making the Right Choice for Your Project
Conduit wiring offers superior protection against physical damage and environmental factors, making it ideal for industrial and outdoor applications where safety and durability are critical. Surface wiring provides easier access for maintenance and modifications, suited for residential or temporary installations where flexibility is prioritized. Choosing between conduit and surface wiring depends on your project's specific requirements for protection, accessibility, and long-term reliability.

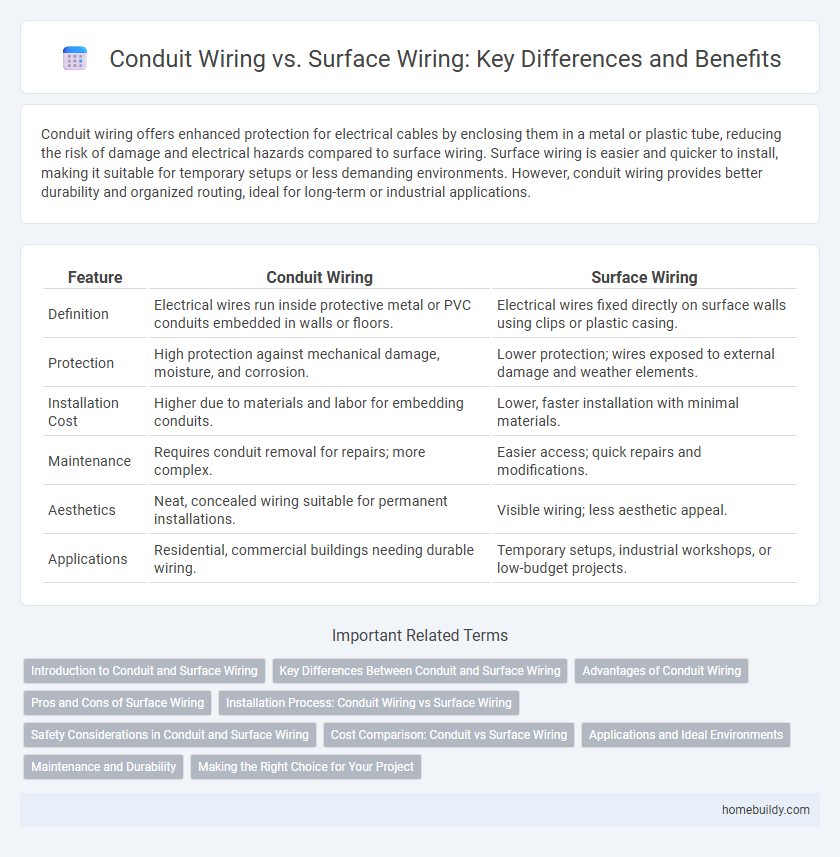

Conduit wiring vs Surface wiring Infographic
