homebuildy.com Conduit fill refers to the total cross-sectional area of cables or wires within an electrical conduit, measured against the conduit's internal capacity, ensuring safe and efficient installation. Cable fill specifically measures the space occupied by the electrical cables themselves, excluding any voids or insulation gaps, which directly impacts heat dissipation and ease of cable pulling. Accurate assessment of conduit fill versus cable fill is crucial for compliance with electrical codes, preventing overheating and mechanical damage.
Table of Comparison
| Aspect | Conduit Fill | Cable Fill |
|---|---|---|
| Definition | Percentage of conduit cross-sectional area occupied by wires and cables. | Percentage of conduit area occupied by cables alone, including insulation and sheathing. |
| Measurement Basis | Sum of cable and wire areas vs conduit cross-section. | Sum of cable sheathed areas vs conduit cross-section. |
| Applicable Standards | NEC Chapter 9, Table 1 and Annex C guidelines. | NEC Article 347 and cable manufacturer specifications. |
| Fill Limits | Max 40% for one cable, 31% for two cables, 40% for more than two per NEC. | Varies by cable type; generally lower due to insulation thickness. |
| Purpose | Ensure safe heat dissipation and mechanical protection. | Prevent cable damage and maintain installation integrity. |
| Calculation Method | Use conduit internal diameter and wire cross-sectional area. | Use cable outer diameter or cross-sectional data from datasheets. |
| Key Considerations | Conduit size, number of conductors, NEC compliance. | Cable type, sheath thickness, bending radius. |
Understanding Conduit Fill vs Cable Fill
Conduit fill refers to the maximum allowable space occupied by electrical conductors within a conduit to ensure safety, heat dissipation, and ease of installation, as specified by NEC (National Electrical Code) guidelines. Cable fill, on the other hand, involves the volume occupied by pre-assembled cables or multicore cables within the conduit, accounting for the cable's overall diameter including insulation and sheathing. Understanding the distinction between conduit fill and cable fill is critical for proper conduit sizing, preventing overheating, reducing mechanical damage risk, and ensuring compliance with electrical code standards.
Key Definitions: What is Conduit Fill?
Conduit fill refers to the maximum volume of conductors or cables that can safely fit inside an electrical conduit without compromising heat dissipation or electrical performance. It is quantified as a percentage of the conduit's cross-sectional area, ensuring compliance with NEC (National Electrical Code) guidelines to prevent overheating or mechanical damage. Accurate conduit fill calculations are essential for maintaining proper cable management, electrical safety, and system reliability.
Key Definitions: What is Cable Fill?
Cable fill refers to the percentage of the interior cross-sectional area of an electrical conduit occupied by the cables or conductors within it. It is a critical factor in conduit design and installation, ensuring proper heat dissipation, ease of cable pulling, and compliance with National Electrical Code (NEC) fill limits. Understanding cable fill helps prevent overcrowding, reduces insulation damage, and maintains system safety and performance in electrical conduit applications.
NEC Standards for Conduit and Cable Fill
NEC standards for conduit and cable fill specify maximum fill percentages to ensure safe wire installation and heat dissipation; for example, a single cable in conduit must not exceed 53% conduit fill, while two cables can fill up to 31%. These regulations prevent conductor overheating and maintain mechanical protection, crucial for compliant electrical systems. Following NEC Article 300.17 and Chapter 9, Table 1 clarifies conduit sizing based on the type and number of conductors, optimizing conduit fill versus cable fill for safe, efficient wiring.
Calculating Conduit Fill: Step-by-Step
Calculating conduit fill involves determining the percentage of the conduit's internal cross-sectional area occupied by cables, ensuring compliance with NEC (National Electrical Code) guidelines for safety and efficiency. Measure the total cross-sectional area of all cables intended for installation, then divide this by the conduit's internal cross-sectional area to find the fill ratio, which must not exceed 40% for more than two cables or 53% for a single cable. Accurate conduit fill calculation prevents overheating and facilitates future cable pulls, optimizing electrical conduit performance.
Calculating Cable Fill: Essential Guidelines
Calculating cable fill in electrical conduit involves determining the maximum allowable cross-sectional area of cables relative to the conduit's internal volume, based on standards set by the National Electrical Code (NEC). Accurate cable fill calculations ensure adequate space for heat dissipation and prevent damage or interference, with common fill percentages set at 40% for a single cable and 31% for two or more cables. Using conductor cross-sectional area and conduit interior dimensions in these calculations guarantees compliance with safety regulations and optimal electrical performance.
Common Mistakes in Fill Calculations
Common mistakes in conduit fill calculations often stem from confusing conduit fill with cable fill, leading to overloading and potential code violations. Conduit fill refers to the maximum allowable cross-sectional area of all conductors inside a conduit as specified by NEC tables, while cable fill accounts for the actual volume occupied by cables, including insulation and sheathing. Overlooking differences between conductor sizes and cable construction can result in inaccurate fill percentages, increasing heat buildup and risking electrical hazards.
Effects of Overfilling Conduit or Cable
Overfilling electrical conduit or cable can lead to excessive heat buildup, which increases the risk of insulation damage and potential electrical fires. High conduit fill also restricts cable flexibility, making installation and future maintenance more difficult while increasing mechanical stress on conductors. Compliance with NEC conduit fill tables ensures optimal cable performance, longevity, and safety by maintaining proper airflow and minimizing thermal and physical strain.
Tools and Resources for Accurate Fill Calculations
Accurate conduit fill calculations require specialized tools such as conduit fill calculators, software, and reference charts that comply with NEC (National Electrical Code) standards to ensure safe and efficient installations. Digital tools like mobile apps and online calculators simplify the process of determining the maximum allowable cable fill percentage within various conduit types, including EMT, PVC, and steel. Access to updated NEC tables and industry-specific guidelines helps electricians and engineers avoid overfilling, which can cause heat buildup and signal interference in electrical conduit systems.
Best Practices for Safe Conduit and Cable Installation
Maintaining proper conduit fill is essential to prevent overheating and ensure electrical safety by allowing adequate space for wire expansion and heat dissipation. Following National Electrical Code (NEC) guidelines, conduit fill should not exceed 40% for one cable, 31% for two cables, and 40% for more than two cables to minimize risks. Proper cable fill optimizes mechanical protection and facilitates easier cable pulling, reducing damage and extending the lifespan of electrical installations.

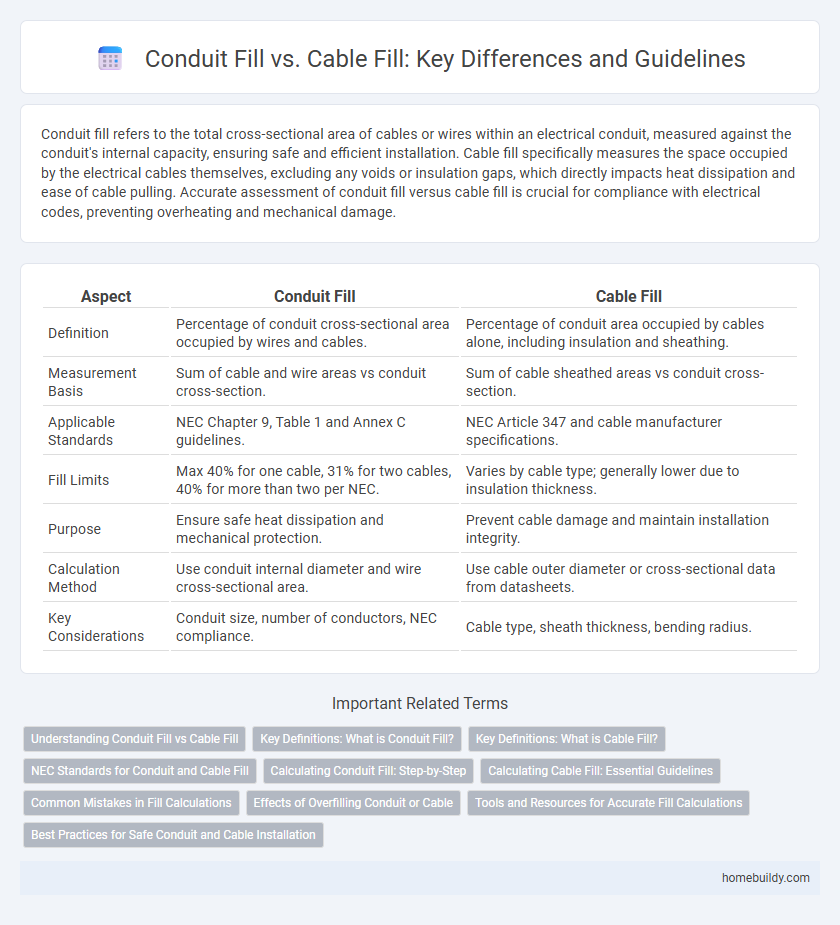

Conduit fill vs Cable fill Infographic
