homebuildy.com Conduit straps provide a secure and straightforward method for fastening electrical conduit to surfaces, typically used in drywall or wood applications where stability is required. Conduit hangers offer more flexibility and support for suspended or overhead conduit runs, preventing sagging and maintaining proper alignment. Selecting between conduit straps and hangers depends on the installation environment, load requirements, and conduit routing preferences.
Table of Comparison
| Feature | Conduit Straps | Conduit Hangers |
|---|---|---|
| Purpose | Secure conduit to flat surfaces | Support conduit from ceilings or beams |
| Material | Metal or plastic | Metal, often galvanized steel |
| Installation | Screwed directly onto walls | Suspended with hooks or rods |
| Conduit Types Supported | Rigid, EMT, PVC | Rigid, EMT, PVC |
| Weight Capacity | Light to moderate conduit support | Heavy conduit and cable bundles |
| Cost | Lower cost, simple design | Higher cost, more complex support |
| Common Use | Wall mounting electrical conduit | Ceiling or overhead conduit routing |
Overview: Conduit Straps vs Conduit Hangers
Conduit straps are metal or plastic fasteners designed to secure conduits tightly against surfaces, providing straightforward installation for wall or ceiling mounting. Conduit hangers, typically made from steel or galvanized materials, support conduits by suspending them from overhead structures, allowing for easier alignment and adjustment in suspended or exposed conduit runs. Both serve crucial roles in electrical conduit management, with straps excelling in fixed surface attachment and hangers offering flexible overhead support.
Functional Differences Between Straps and Hangers
Conduit straps secure electrical conduit tightly against surfaces, providing stable support and preventing movement in fixed installations. Conduit hangers, designed for suspension, allow conduit to hang from ceilings or beams, accommodating vertical or horizontal runs with flexibility. Straps are ideal for close-to-wall applications, whereas hangers facilitate conduit routing in open spaces requiring elevation and adjustment.
Material Options for Straps and Hangers
Conduit straps typically come in materials such as stainless steel, galvanized steel, and plastic, offering varying levels of corrosion resistance and strength for different electrical applications. Conduit hangers are often made from heavy-duty steel or stainless steel, designed to support greater loads and provide secure mounting for larger conduit sizes in industrial or commercial environments. Both options prioritize durability, but the choice between straps and hangers depends on specific installation requirements, including environmental exposure and conduit weight.
Installation Methods: Straps vs Hangers
Conduit straps secure electrical conduit directly to surfaces using screws or bolts, providing a tight, flush installation ideal for walls or flat panels. Conduit hangers suspend conduit from ceilings or beams with hooks or clamps, allowing for adjustments and reducing strain on the conduit system. Straps are best for fixed, low-clearance runs while hangers accommodate flexible routing and overhead support.
Load-Bearing Capabilities
Conduit hangers provide superior load-bearing capabilities compared to conduit straps by offering full support around the conduit, reducing stress and potential deformation. Straps typically secure conduits at single points, which can lead to increased strain under heavy loads or long spans. For applications requiring strong, reliable support, especially in industrial or commercial settings, conduit hangers are preferred due to their enhanced stability and load distribution.
Applications: Where to Use Straps or Hangers
Conduit straps are ideal for securing electrical conduit to flat surfaces such as walls or ceilings, providing stable support in residential and commercial wiring systems. Conduit hangers are better suited for suspending conduit in open spaces or industrial settings, allowing easy access for maintenance while ensuring safe separation from structural elements. Selecting between straps and hangers depends on load requirements, conduit size, and installation environment for optimal safety and code compliance.
Code Compliance and Safety Standards
Conduit straps and conduit hangers both serve to secure electrical conduit, but their selection must align with NEC (National Electrical Code) requirements to ensure code compliance and safety. Conduit straps are typically used for rigid and IMC conduits in exposed locations and must be spaced according to NEC Table 352.30 for EMT conduit, ensuring mechanical protection against stress and vibration. Conduit hangers, often employed for heavier conduits or in suspended installations, must meet ASTM standards for load capacity and durability to maintain electrical system integrity and prevent physical damage or displacement.
Cost Comparison: Straps vs Hangers
Conduit straps generally offer a lower upfront cost compared to conduit hangers due to their simple design and ease of installation, making them ideal for budget-sensitive projects. Conduit hangers, while typically more expensive initially, provide better long-term durability and support, especially in overhead or heavy-duty applications, potentially reducing maintenance costs over time. Evaluating total lifecycle expenses reveals that straps suit short-term or light-duty needs, whereas hangers can offer more cost-effective performance in demanding environments.
Durability and Environmental Resistance
Conduit straps are typically made from galvanized steel or stainless steel, offering high durability and resistance to corrosion, making them suitable for both indoor and outdoor applications. Conduit hangers, often constructed from metal or heavy-duty plastic, provide excellent environmental resistance by securely supporting conduits in harsh conditions such as wet or corrosive environments. Both options ensure long-term structural integrity, but hangers usually offer better protection against environmental factors due to their design and material flexibility.
Selecting the Right Support for Your Conduit System
Selecting the right support for your conduit system depends on factors such as conduit size, weight, and installation environment. Conduit straps offer a simple, cost-effective solution for securing conduit to flat surfaces, ideal for smaller or lighter conduit runs. Conduit hangers provide greater flexibility and strength for suspending heavier conduits in ceilings or open spaces, ensuring proper alignment and load distribution.

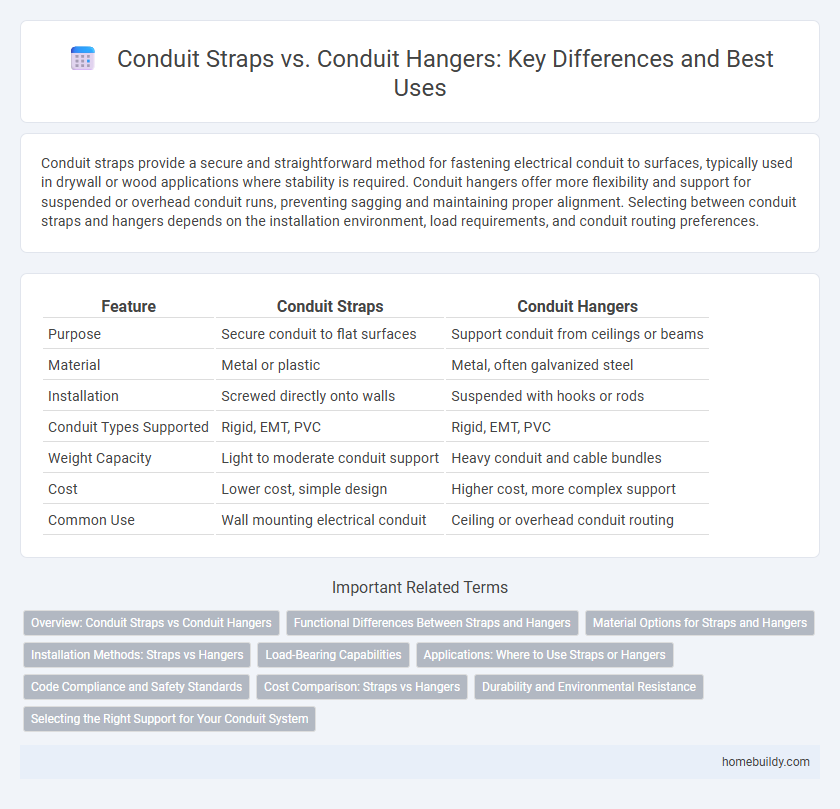

Conduit straps vs Conduit hangers Infographic
