homebuildy.com Conduit benders provide precise, consistent bends ideal for professional electrical installations, reducing the risk of damaging the conduit. Manual bending offers a cost-effective solution for small projects but may lead to uneven bends and requires more physical effort. Choosing between conduit bender and manual bending depends on the project's scale, accuracy requirements, and available tools.
Table of Comparison
| Feature | Conduit Bender | Manual Bending |
|---|---|---|
| Precision | High accuracy for consistent angles | Less precise, depends on skill |
| Speed | Faster bends, improves productivity | Slower, time-consuming |
| Effort | Requires less physical strength | Physically demanding |
| Cost | Moderate initial investment | Low cost, minimal tools needed |
| Applications | Ideal for professional electrical conduit installation | Suitable for simple or occasional bends |
| Material Compatibility | Works well with EMT, RMC, and IMC conduits | Best for thin, flexible conduit types |
| Portability | Typically portable but bulkier | Highly portable, minimal equipment |
Understanding Conduit Bending: Manual vs. Conduit Bender
Manual bending relies on physical force and skill to shape electrical conduit, often requiring precise measurement and experience to avoid deforming the material. A conduit bender, typically made of metal with a curved shoe, ensures consistent bends by guiding the conduit along preset angles, improving accuracy and reducing material waste. Using a conduit bender enhances efficiency and accuracy in conduit installations compared to purely manual methods.
Overview: What Is a Conduit Bender?
A conduit bender is a specialized hand tool designed for bending electrical conduit pipes to precise angles, ensuring proper fit and alignment in electrical installations. Unlike manual bending, which relies on force and judgment, conduit benders feature calibrated shoe and handle components for accurate, repeatable bends. This tool enhances efficiency and quality in electrical conduit routing by minimizing errors and material waste.
Manual Bending Techniques Explained
Manual bending techniques involve using hand tools such as conduit benders, reamers, and fish tapes to shape electrical conduit accurately on-site. Precision is achieved by following specific measurements, bending angles, and applying consistent force to avoid kinks or deformation in materials like EMT, IMC, or PVC conduit. Mastery of manual bending ensures customized conduit layouts, compliance with electrical codes, and efficient installation in tight or complex spaces.
Accuracy and Consistency: Which Method Prevails?
Conduit benders offer superior accuracy by providing precise angle measurements and repeatable bends, essential for meeting electrical code requirements. Manual bending relies heavily on the skill and experience of the operator, which can lead to inconsistencies and slight deviations in angle precision. Consistency is best achieved with conduit benders as they minimize human error, ensuring uniform bends that improve installation quality and safety.
Speed and Efficiency: Bender vs. Manual Effort
Conduit benders significantly increase speed and efficiency by enabling precise bends with minimal physical effort, reducing job time compared to manual bending. Manual bending requires more physical strength and repetition, often leading to inconsistencies and slower progress on electrical conduit installations. Using conduit benders optimizes workflow and enhances accuracy, making them the preferred choice for professional electricians.
Tools and Equipment Needed for Each Method
Conduit benders require specialized tools such as hand-held benders with calibrated angle markings designed for accurate and repeatable bends in electrical conduit, often including shoe, handle, and form components tailored to specific conduit sizes. Manual bending typically involves basic tools like a pipe wrench, bending spring, or a lever pipe bender, relying more on physical force and skill to achieve the desired angle without precision markings. The conduit bender method offers cleaner, standardized bends due to built-in measurement guides, whereas manual bending tools demand more experience to prevent deforming or kinking the conduit.
Cost Comparison: Manual Bending vs. Conduit Bender Investment
Manual bending of electrical conduit significantly reduces upfront costs by eliminating the need for specialized tools, relying solely on basic equipment like a bending spring or hand-held tools. Investing in a conduit bender involves higher initial expenses but offers greater precision and efficiency, minimizing material waste and labor time over extended projects. For contractors handling frequent or large-scale conduit installations, the return on investment with conduit benders often outweighs manual bending expenses due to improved accuracy and productivity.
Best Scenarios for Using a Conduit Bender
Conduit benders are ideal for precise and repeatable bends in electrical conduit installations, particularly in complex wiring systems requiring consistent angles such as 90-degree or 45-degree bends. They excel in on-site applications where portability and ease of use facilitate efficient conduit shaping without specialized machinery. Manual bending is better suited for simpler, less frequent bends, but conduit benders outperform in scenarios demanding accuracy and professional finish.
Manual Bending: Advantages and Limitations
Manual bending of electrical conduit offers precise control and flexibility for custom angles, reducing the need for additional fittings and minimizing material waste. It requires minimal equipment, making it cost-effective and ideal for small-scale projects or onsite adjustments. However, manual bending demands skilled labor and can result in inconsistent bends or conduit damage if not performed correctly, limiting its efficiency on large or repetitive jobs.
Choosing the Right Bending Method for Your Project
Selecting the appropriate bending method depends on the project's scale, precision requirements, and budget. Conduit benders offer consistent, accurate bends ideal for large or repetitive jobs, while manual bending provides flexibility and cost savings for smaller, custom tasks. Evaluating factors such as conduit size, bend radius, and available tools ensures efficient and safe electrical conduit installation.

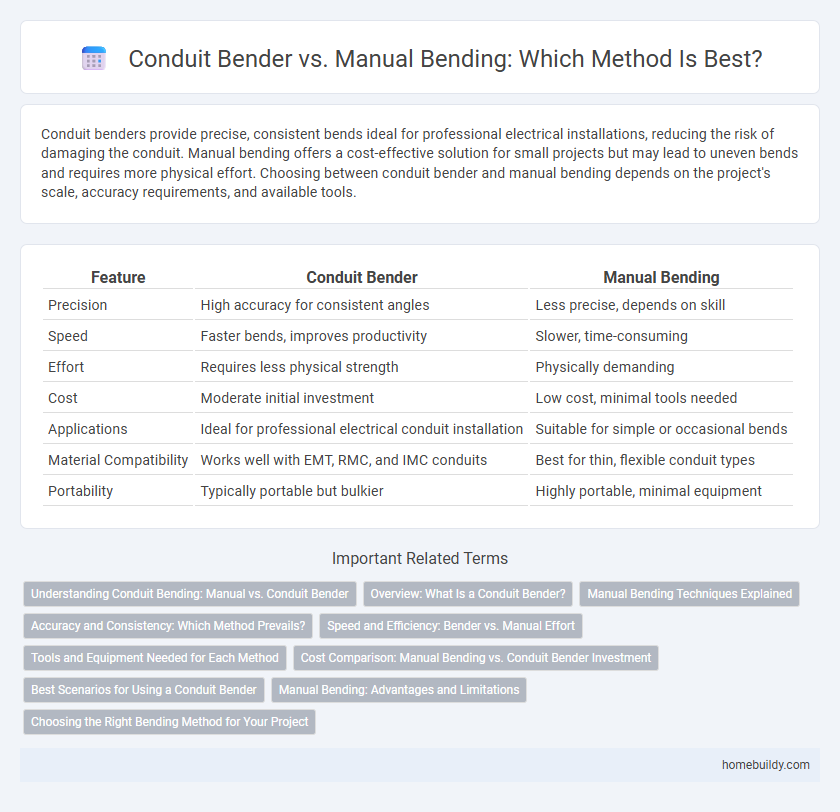

Conduit bender vs Manual bending Infographic
