homebuildy.com Electrical conduit provides a rigid or flexible protective pathway for electrical wiring, offering superior durability and resistance to physical damage compared to armored cable. Armored cable, also known as BX cable, integrates metal sheathing around conductors for protection but can be less flexible and harder to modify than conduit systems. Choosing between electrical conduit and armored cable depends on installation requirements, environmental conditions, and the need for future wiring changes.
Table of Comparison
| Feature | Electrical Conduit | Armored Cable (AC) |
|---|---|---|
| Material | Metal (Steel, Aluminum) or PVC | Flexible steel armor over insulated conductors |
| Installation | Requires conduit bending and fittings | Runs like cable; faster to install |
| Protection | High mechanical protection against impact | Moderate mechanical protection |
| Moisture Resistance | PVC conduit is highly moisture resistant | Limited moisture resistance without special jacketing |
| Flexibility | Rigid or flexible conduit options available | Highly flexible for complex runs |
| Cost | Generally higher material and labor cost | Lower labor cost, moderate material cost |
| Code Compliance | Widely accepted in electrical codes (NEC) | Accepted as wiring method per NEC |
| Use Cases | Commercial, industrial, exposed areas | Residential, commercial, indoor wiring |
Introduction to Electrical Conduit and Armored Cable
Electrical conduit is a protective tubing system designed to route and shield electrical wiring in residential, commercial, and industrial installations, typically made from metal or plastic materials such as PVC, EMT, or rigid steel. Armored cable (AC), also known as BX or MC cable, combines insulated conductors with a flexible metallic sheath that provides mechanical protection and grounding capabilities, simplifying installation without the need for separate conduit. Both electrical conduit and armored cable serve critical roles in protecting electrical circuits from physical damage and environmental exposure, with choices dependent on installation requirements, code compliance, and environmental conditions.
Key Differences Between Electrical Conduit and Armored Cable
Electrical conduit is a rigid or flexible tube that protects and routes electrical wiring, offering superior mechanical protection and facilitating easier wire replacement, whereas armored cable (AC) consists of insulated conductors wrapped in a flexible metal sheath combining protection and wiring in a single assembly. Conduit requires separate wiring inside, allowing for higher customization and better compliance with complex electrical codes, while armored cable is typically faster to install but less adaptable for future modifications or repairs. Key differences include conduit's enhanced durability and adaptability versus armored cable's convenience and integrated design, impacting selection based on project-specific requirements and environment.
Construction and Material Comparison
Electrical conduit is typically made from rigid or flexible metal, PVC, or fiberglass, providing superior mechanical protection and durability compared to armored cable, which consists of insulated conductors wrapped in a flexible metallic sheath. Conduit systems require fittings and connectors to route and protect wires, allowing for easier upgrades and repairs, whereas armored cable integrates protection and conductors in one assembly, speeding installation but offering less flexibility in modification. The choice between electrical conduit and armored cable depends on project requirements, with conduit favored for harsh environments due to its robust construction and armored cable preferred for simplified wiring in less demanding applications.
Installation Procedures: Conduit vs Armored Cable
Electrical conduit installation involves rigid or flexible tubing secured with fittings and fasteners, requiring cutting, threading, and bending to navigate building structures, and necessitates adherence to electrical codes for support and spacing. Armored cable installation is generally faster, as it combines conductors with flexible metal armor, allowing direct routing through studs or walls without additional conduit, reducing labor and material costs. Choosing between conduit and armored cable depends on project complexity, environmental conditions, and anticipated electrical load requirements.
Flexibility and Versatility in Electrical Systems
Electrical conduit offers superior flexibility and versatility in electrical systems by allowing easy routing through complex building structures, making it ideal for custom installations and future modifications. Armored cable provides a durable, protective sheath around conductors but lacks the same adaptability for bending and re-routing once installed. Conduit systems also enable easier upgrades and repairs without disturbing the existing wiring, enhancing long-term system management.
Safety and Protection Considerations
Electrical conduit offers superior safety by providing a continuous, rigid barrier that protects wiring from physical damage, moisture, and fire hazards, ensuring enhanced electrical insulation and reducing risk of short circuits. Armored cable combines conductors with a flexible metal sheath, offering mechanical protection while simplifying installation but may be less resistant to environmental factors compared to conduit systems. Choosing conduit is recommended for environments requiring maximum protection and compliance with strict electrical codes, whereas armored cable serves well in moderate-risk applications needing flexibility and ease of use.
Durability and Resistance to Environmental Factors
Electrical conduit offers superior durability and enhanced resistance to environmental factors such as moisture, chemicals, and physical impact compared to armored cable. Made from materials like steel, aluminum, or PVC, conduits provide robust protection against corrosion, UV exposure, and extreme temperatures, extending the lifespan of electrical wiring in harsh conditions. Armored cable, while flexible and easier to install, lacks the same level of shielding and is more susceptible to damage from external elements and abrasion.
Cost Analysis: Electrical Conduit vs Armored Cable
Electrical conduit generally incurs higher initial installation costs compared to armored cable due to the expense of conduit materials and labor-intensive mounting requirements. Armored cable, combining wiring and protective armor in a single product, often reduces installation time and labor costs, offering a cost-effective solution for many applications. Over the long term, electrical conduit can provide better protection and easier future upgrades, potentially offsetting its higher upfront expenditure.
Typical Applications and Use Cases
Electrical conduit is commonly used in commercial and industrial settings requiring rigid protection for wiring in exposed or hazardous environments, such as factories or outdoor installations. Armored cable is preferred for residential and renovation projects where flexible, pre-assembled wiring protection is needed, especially in areas with limited space or frequent movement. Both solutions ensure electrical safety but differ in installation complexity and adaptability to specific use case demands.
Choosing the Right System for Your Project
Selecting between electrical conduit and armored cable depends on project-specific requirements such as environmental conditions, installation complexity, and budget constraints. Electrical conduit offers superior protection against physical damage and is ideal for outdoor or industrial settings, while armored cable provides easier installation and flexibility, suited for residential or commercial interiors. Evaluating factors like code compliance, mechanical protection, and ease of maintenance ensures choosing the right system that meets safety standards and project efficiency.

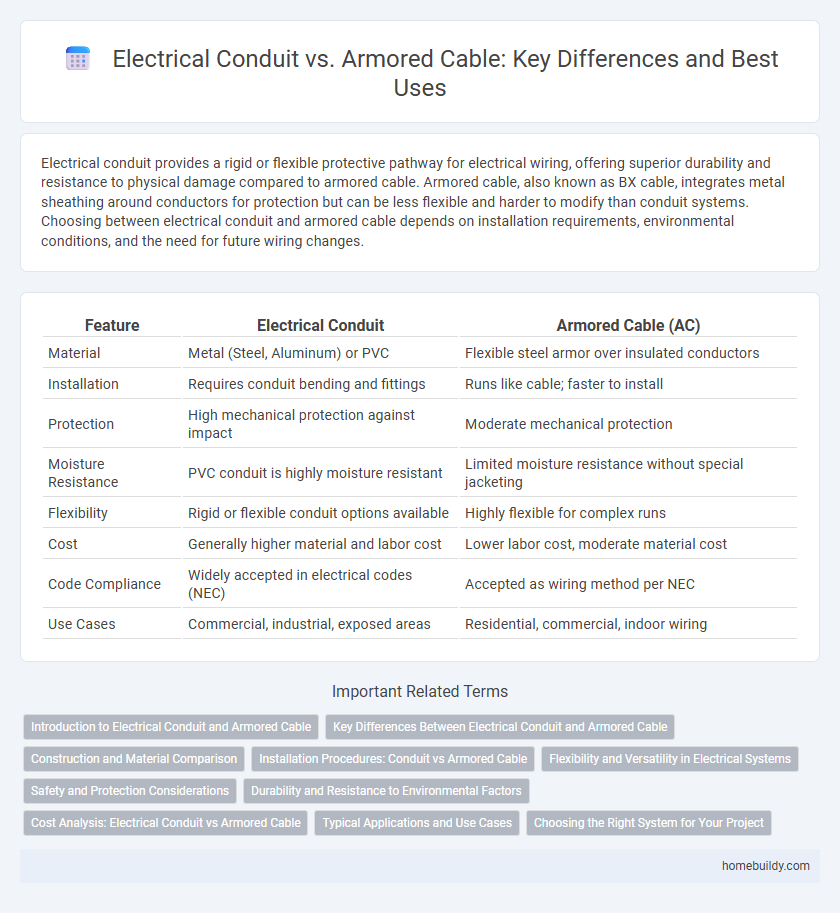

Electrical conduit vs Armored cable Infographic
