homebuildy.com Conduit bodies and pull boxes both facilitate wire pulling and conduit system access, but conduit bodies are smaller, designed for easier directional changes and limited access points, while pull boxes provide larger space for complex wire pulling and splicing. Conduit bodies typically have capped openings for quick access, whereas pull boxes have removable covers, making them ideal for maintenance and future wiring additions. Selecting between the two depends on project requirements, available space, and ease of wire management.
Table of Comparison
| Feature | Conduit Body | Pull Box |
|---|---|---|
| Purpose | Provides access to conduit runs for wire pulling and maintenance | Allows pulling, splicing, and junctions in conduit systems |
| Size | Small, fits inline with conduit | Larger, box-shaped for easier wire handling |
| Installation Location | Used at bends, offsets, or direction changes | Placed at long conduit runs or junction points |
| Accessibility | Limited access, covers removable | Full access, removable covers on multiple sides |
| Cost | Lower cost | Higher cost due to size and complexity |
| Wire Capacity | Suitable for small wire pulling | Supports large wire bundles and splicing |
| Common Materials | Aluminum, steel, PVC | Steel, aluminum, fiberglass |
Introduction to Electrical Conduit Bodies and Pull Boxes
Electrical conduit bodies provide accessible junction points for pulling, splicing, and maintenance within conduit systems, typically featuring removable covers for easy access. Pull boxes serve as larger enclosure spaces designed to facilitate wire pulling and provide sufficient room for bending conductors while preventing damage in complex conduit runs. Both components are essential for efficient electrical conduit installations, ensuring proper cable management and system reliability.
Definitions: What is a Conduit Body?
A conduit body is a prefabricated fitting used in electrical conduit systems to provide access for pulling, splicing, and maintaining wires within a conduit run. It typically features a removable cover, allowing easy access to conductors and enabling changes in direction without disrupting the entire conduit layout. Conduit bodies serve as essential junction points while maintaining protection and continuity of the electrical wiring system.
Definitions: What is a Pull Box?
A pull box is an electrical enclosure designed to facilitate the pulling and splicing of conductors in conduit systems, providing access points for wire installation and maintenance. Unlike conduit bodies, which are smaller and typically used at bends or junctions, pull boxes are larger, allowing electricians to easily maneuver cables through complex conduit runs. Pull boxes are essential for ensuring smooth conduit transitions and preventing cable damage in electrical wiring projects.
Key Differences Between Conduit Bodies and Pull Boxes
Conduit bodies provide easy access to electrical conduit runs for pulling wires, making bends, and performing maintenance, typically available in various shapes like C, T, and L. Pull boxes are larger enclosures designed to facilitate wire pulling across long conduit runs, offering more space for splicing and wire management. Key differences include conduit bodies being smaller and used for short distances or directional changes, while pull boxes accommodate larger cable volumes and complex pulling requirements.
Common Applications for Conduit Bodies
Conduit bodies are commonly used in electrical conduit systems to provide access points for pulling wires, making bends, and changing conduit directions in tight or complex spaces. They are ideal for applications where quick inspection, maintenance, or wire pulling is necessary without dismantling the entire conduit run. Typical uses include turning corners, branching off runs, or servicing wiring in commercial, industrial, and residential electrical installations.
Common Applications for Pull Boxes
Pull boxes are commonly used in electrical conduit systems to facilitate wire pulling and cable management in long conduit runs or complex conduit bends. They provide accessible junction points for maintenance and future expansions, making them ideal for commercial and industrial construction projects. Unlike conduit bodies, pull boxes offer larger internal space to accommodate multiple conduit entries and splices.
Installation Guidelines for Conduit Bodies
Conduit bodies are designed for easier access to conductors at bends and junctions, facilitating wire pulling and maintenance without disconnecting conduit sections. When installing conduit bodies, ensure proper sealing with compatible gaskets or sealant to maintain environmental protection, and securely fasten covers to prevent moisture ingress. Unlike pull boxes that provide larger working space, conduit bodies require careful selection of size and type to comply with NEC raceway fill and bending radius requirements for safe and efficient installation.
Installation Guidelines for Pull Boxes
Pull boxes require precise installation to ensure ease of wire pulling and compliance with electrical codes, with clearances typically mandated by the NEC to facilitate conductor bends and minimize cable stress. Placement must allow unobstructed access, maintain proper sealing against moisture, and accommodate conduit sizes without overcrowding, preserving the system's integrity and safety. Proper labeling and grounding within the pull box are essential to meet safety standards and support efficient maintenance and troubleshooting.
Code Compliance and Safety Considerations
Conduit bodies offer convenient access points for pulling and splicing conductors while complying with NEC requirements for fill capacity and grounding connections, ensuring safe and accessible wiring systems. Pull boxes typically provide larger, unobstructed interiors to accommodate cable pulling, reducing stress on conductors and meeting code mandates for working space and conductor bend radius. Both conduit bodies and pull boxes must adhere to National Electrical Code (NEC) provisions on volume, accessibility, and grounding to maintain electrical safety and prevent conduit system failures.
Choosing Between a Conduit Body and a Pull Box
Choosing between a conduit body and a pull box depends on access and installation needs within electrical conduit systems. Conduit bodies provide simpler bends and easier wire pulling in limited spaces, while pull boxes offer larger access areas for complex conduit junctions and multiple conduit entries. Evaluating the conduit run length, wiring complexity, and maintenance requirements ensures optimal selection for efficiency and compliance with electrical codes.

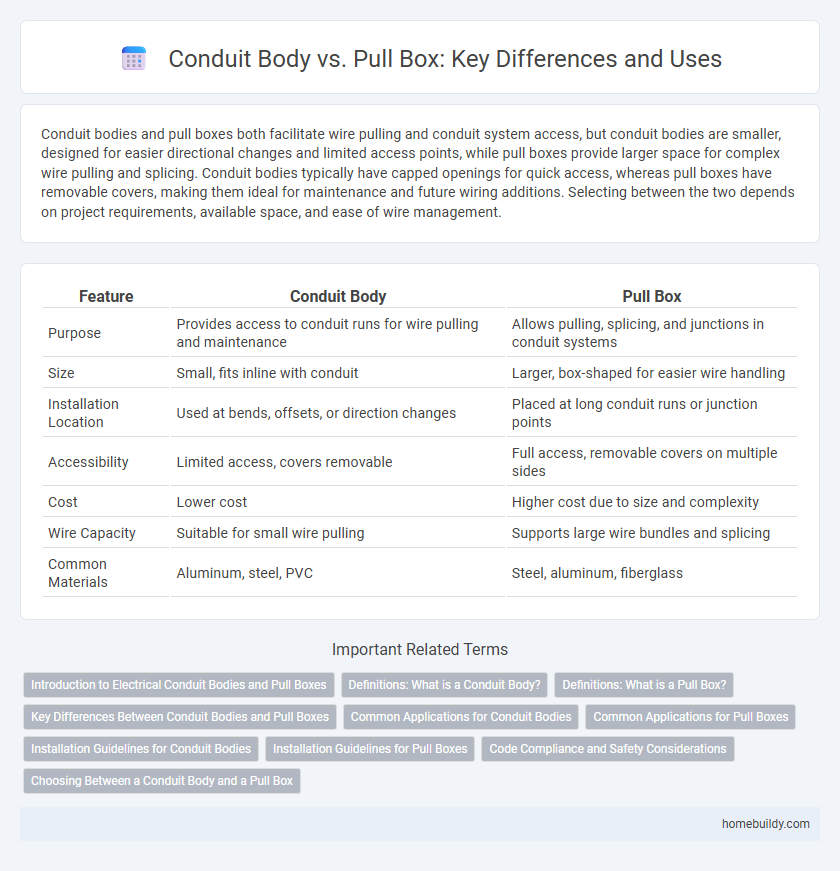

Conduit body vs Pull box Infographic
