homebuildy.com Rafter ties are horizontal members that connect opposing rafters to prevent outward spreading under roof load, providing structural stability primarily in traditional roof framing. Strapping, on the other hand, consists of metal or wood strips used to reinforce or secure roof components, often enhancing resistance to uplift forces during high winds. While rafter ties handle compressive forces within the roof structure, strapping offers supplementary support by tying rafters to ceiling joists or walls, ensuring overall roof integrity.
Table of Comparison
| Feature | Rafter Tie | Strapping |
|---|---|---|
| Purpose | Prevents roof spread by tying opposite rafters | Secures and reinforces connections between framing members |
| Material | Typically wood or metal rods | Galvanized steel or metal strips |
| Installation Location | Horizontally at ceiling level across rafters | Along joints between framing components |
| Structural Role | Resists outward thrust of rafters | Improves shear and tension resistance |
| Typical Use | Roof framing systems | Wall, roof, and floor framing reinforcement |
| Code Compliance | Required in many building codes for roof stability | Often mandated for seismic and wind resistance |
Introduction to Rafter Ties and Strapping
Rafter ties are horizontal structural members designed to connect opposing rafters, preventing outward spread and maintaining roof stability under load. Strapping, typically made of metal, serves to reinforce connections between roof components, providing tensile strength against uplift forces. Both rafter ties and strapping contribute to the overall integrity of roofing systems, but rafter ties primarily resist rafter thrust while strapping enhances joint reinforcement.
Key Functions of Rafter Ties
Rafter ties are crucial components in roof framing that prevent the outward spread of rafters, maintaining the structural integrity of the roof. Rafter ties primarily resist horizontal thrust and provide tension support, securing the roof's stability during heavy loads such as snow or wind. Unlike strapping, which connects various framing elements for lateral support, rafter ties specifically counteract rafter spread, making them essential in traditional pitched roof construction.
Purpose and Benefits of Strapping
Strapping is designed to enhance the lateral stability of roof structures by connecting rafters to ceiling joists, preventing outward spreading under load. This method provides superior resistance to wind uplift and seismic forces compared to traditional rafter ties, reducing the risk of structural failure. The benefits of strapping include improved load distribution, increased overall roof durability, and compliance with modern building codes for enhanced safety.
Structural Differences: Rafter Tie vs Strapping
Rafter ties are horizontal members that connect opposing rafters, preventing the roof from spreading and providing critical tension support within the attic space. Strapping consists of narrow metal or wooden strips fastened across rafters to increase lateral stability and resist uplift forces from wind. Structurally, rafter ties act as tension elements in the roof's triangular framing, while strapping primarily enhances the connection between roof sheathing and framing, ensuring overall rigidity.
Installation Methods: Rafter Tie vs Strapping
Rafter ties are typically installed by nailing or screwing the tie directly across the bottom of the rafters to keep them from spreading, providing a straightforward and strong tension connection. Strapping installation involves securing metal straps vertically or diagonally between rafters and ceiling joists, requiring precise alignment and often additional fasteners for stability. The choice between rafter ties and strapping depends on roof design and load requirements, with rafter ties offering simpler, more direct reinforcement and strapping providing flexible options for uneven or complex framing.
Advantages of Using Rafter Ties
Rafter ties provide superior structural stability by effectively preventing roof rafters from spreading and maintaining the roof's integrity under load. Unlike strapping, rafter ties offer enhanced resistance to uplift forces caused by high winds or seismic activity, thereby improving overall building safety. Their installation is more straightforward and cost-effective, ensuring a reliable connection between rafters and ceiling joists without the need for additional hardware.
Benefits and Limitations of Strapping
Strapping provides a versatile and cost-effective solution for securing rafters by offering increased flexibility in installation and accommodating various roof shapes. Its primary benefits include ease of application and resistance to tension forces, while limitations involve reduced effectiveness in preventing rafter spread compared to traditional rafter ties. Strapping may also require careful selection of materials to ensure adequate corrosion resistance and long-term durability in different environmental conditions.
Building Code Requirements for Rafter Ties and Strapping
Building code requirements for rafter ties and strapping specify load-bearing capacities and anchorage standards to ensure roof structural integrity. Rafter ties are mandated in many codes to resist outward thrust of rafters, typically sized and spaced per prescriptive guidelines such as the International Residential Code (IRC) Table R802.5.1, while strapping must meet specific tensile strength and fastening criteria outlined in sections like IRC R602.3 and ASTM standards to prevent uplift and lateral movement during high wind events.
Common Applications and Best Practices
Rafter ties primarily reinforce roof structures by preventing outward spreading of rafters, commonly used in residential wood-framed roofs to enhance stability and load distribution. Strapping, often metal, secures rafters to walls or trusses, providing lateral support and resistance against uplift forces in high-wind or seismic zones. Best practices recommend using rafter ties in conjunction with strapping for comprehensive roof system reinforcement, ensuring compliance with local building codes and maximizing structural integrity.
Choosing Between Rafter Tie and Strapping
Choosing between a rafter tie and strapping depends on structural needs and load distribution in roof framing. Rafter ties are essential for preventing outward thrust in traditional roof designs by connecting opposing rafters at the base. Strapping offers increased flexibility and tensile strength, ideal for reinforcing connections and accommodating complex roof geometries.

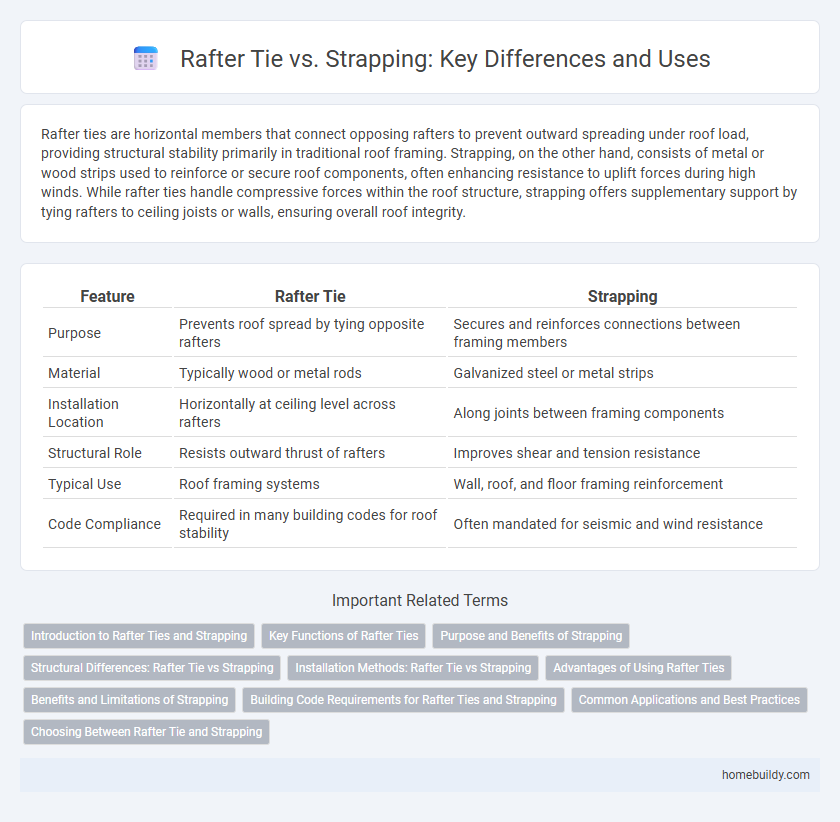

Rafter tie vs Strapping Infographic
