homebuildy.com A rafter tie is a horizontal member that connects opposing rafters to prevent roof spreading, while a scab plate is a short reinforcement piece fastened over a damaged or weak joint area. Rafter ties provide structural stability by resisting outward thrust, ensuring the roof's integrity throughout heavy loads or high winds. Scab plates serve as repair or reinforcement elements rather than primary structural components, typically enhancing the connection strength without altering roof geometry.
Table of Comparison
| Feature | Rafter Tie | Scab Plate |
|---|---|---|
| Purpose | Prevents roof spreading by connecting rafters at the base | Reinforces or repairs damaged rafters by overlaying a plate |
| Material | Typically wood or metal straps | Wood or metal plates |
| Installation Location | Bottom edge of rafters, spanning from one side to the other | On face or edge of existing rafters |
| Structural Role | Resists outward thrust, maintains roof stability | Strengthens weak or damaged rafters |
| Load Bearing | Direct tension member, critical in roof framing | Supplemental load support |
| Common Use | New construction and framing | Repairs and reinforcement |
Understanding Rafter Ties and Scab Plates
Rafter ties are critical structural components that connect opposing rafters to prevent roof spreading and maintain the integrity of the roof framing, especially in residential construction. Scab plates, by contrast, are typically used as reinforcement elements that splice or strengthen existing rafters by overlapping damaged or weak sections with an additional piece of lumber or metal. Understanding the distinct roles of rafter ties and scab plates ensures proper application in roof framing, where rafter ties primarily provide tension support while scab plates offer localized reinforcement.
Structural Roles: Rafter Tie vs Scab Plate
Rafter ties function primarily to prevent roof rafters from spreading and support the stability of the roof structure by connecting opposing rafters across the ceiling. Scab plates serve as reinforcement pieces, typically used to splice or strengthen existing rafter joints without directly preventing rafter spread. While rafter ties maintain structural integrity by resisting horizontal thrust, scab plates provide localized repair or load distribution but do not substitute the comprehensive role of rafter ties in roof framing.
Installation Differences Between Rafter Ties and Scab Plates
Rafter ties are installed by nailing or screwing directly across the rafters to prevent outward thrust on the walls, providing a continuous tension member that secures the roof structure. Scab plates are applied as additional reinforcements by attaching metal or wooden plates over the joint between two rafters, often requiring precise alignment and bolting or screwing for load transfer. The installation of rafter ties tends to be simpler and more integral to structural stability, while scab plates serve as supplementary supports primarily used for reinforcing or repairing existing connections.
Load Distribution: Rafter Tie versus Scab Plate
Rafter ties evenly distribute tensile loads across the roof structure, preventing spreading and maintaining stability by connecting opposing rafters near the base. Scab plates, typically narrow and localized, provide limited load transfer and mainly reinforce joints or damaged areas without effectively addressing overall roof tension. The superior load distribution of rafter ties reduces the risk of structural deformation compared to the concentrated stresses managed by scab plates.
Common Applications for Rafter Ties and Scab Plates
Rafter ties are commonly used in residential roof framing to prevent outward wall spreading by connecting opposing rafters near the base of a roof, providing structural stability in pitched roofs. Scab plates are typically applied to reinforce or repair existing roof rafters by joining two sections of wood along the same plane, often utilized in retrofit projects or damaged framing. Both components play crucial roles in maintaining roof integrity but serve distinct purposes based on the specific structural needs of the roof system.
Advantages and Disadvantages: Rafter Tie vs Scab Plate
Rafter ties provide significant structural stability by preventing roof spread and enhancing the load distribution across a roof system, making them ideal for supporting traditional truss designs. Scab plates, while easier to install and useful for repairing or reinforcing damaged rafters, may not offer the same continuous load-bearing capacity as rafter ties, potentially compromising long-term roof integrity. Choosing between a rafter tie and a scab plate depends on the specific roof design, load requirements, and the need for structural reinforcement or repair.
Building Code Requirements for Rafter Ties and Scab Plates
Building codes typically mandate rafter ties to be continuous and firmly secured across the span of a roof to prevent rafters from spreading under load, ensuring structural stability. Scab plates, often used as reinforcement or repair elements, must comply with specific fastening schedules outlined in building codes, but they do not replace the need for properly installed rafter ties. Compliance with codes like the International Residential Code (IRC) requires rafter ties to be installed at designated locations, while scab plates are supplementary and must be used according to manufacturer specifications and local amendments.
Material Selection: Rafter Tie or Scab Plate
Rafter ties are typically made from galvanized steel straps designed for tensile strength and resistance to corrosion, making them ideal for securing roof rafters and preventing uplift. Scab plates, on the other hand, are usually constructed from plywood or metal and serve to reinforce or join existing wood members, with material selection depending on load requirements and compatibility with the wood substrate. Selecting between a rafter tie and a scab plate requires consideration of structural demands, environmental exposure, and the mechanical properties of materials such as strength, flexibility, and durability.
Cost Comparison: Rafter Tie vs Scab Plate
Rafter ties generally offer a more cost-effective solution than scab plates due to lower material and labor expenses, as they typically require less hardware and simpler installation. Scab plates, while providing additional reinforcement where rafters meet, often involve higher costs because of the extra fasteners and time needed for precise placement. Choosing between a rafter tie and a scab plate depends on balancing budget constraints with the required structural support and long-term durability.
When to Choose Rafter Ties Over Scab Plates
Rafter ties are essential when preventing the outward spread of rafters and enhancing the overall stability of a roof structure, especially in traditional timber framing or open ceiling designs. Scab plates serve best for reinforcing or repairing existing rafters by providing localized support and alignment without altering the entire roof system. Choose rafter ties over scab plates when you need continuous tension support to resist uplift forces and maintain rafter spacing across the roof span.

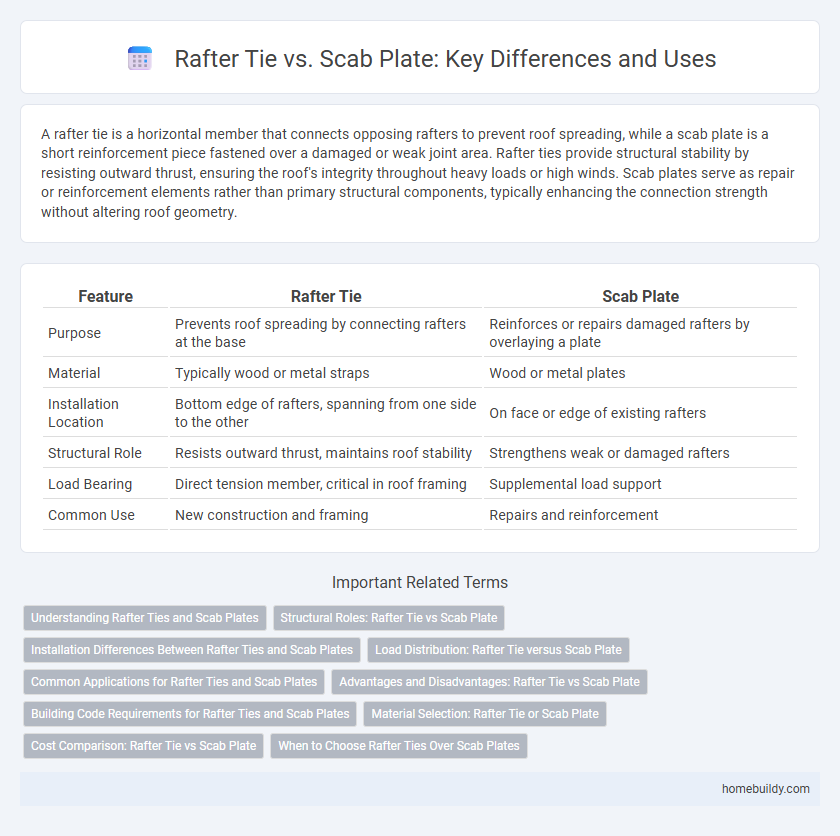

Rafter tie vs Scab plate Infographic
