homebuildy.com Installing a rafter tie involves securing horizontal beams between opposing rafters near the ceiling to prevent outward wall thrust, providing essential structural stability. Installing a collar tie takes place higher up in the roof structure, connecting rafters closer to the ridge to resist uplift forces but offers less resistance to wall spreading. Choosing between rafter ties and collar ties depends on the specific roof design and load requirements for optimal support and stability.
Table of Comparison
| Feature | Installing Rafter Tie | Installing Collar Tie |
|---|---|---|
| Purpose | Prevents roof spreading by connecting rafters at the base. | Increases roof stability by connecting rafters near the ridge. |
| Location | Placed low, near wall plates or ceiling joists. | Placed high, between rafters in the upper third of the roof. |
| Structural Role | Resists outward thrust and prevents wall bowing. | Reduces rafter sag and lateral movement. |
| Installation Complexity | Generally easier, accessible from attic or ceiling. | More complex, often requires attic access and precise measurements. |
| Common Use | Essential in most pitched roofs to maintain structural integrity. | Used as reinforcement to stiffen rafters on longer spans. |
| Effect on Roof Strength | Critical for preventing roof spread and wall damage. | Enhances roof rigidity but does not prevent spreading. |
Understanding Rafter Ties and Collar Ties
Rafter ties are horizontal members installed between opposite rafters near the ceiling to prevent outward wall spread and provide structural stability. Collar ties are positioned higher up in the roof slope to resist uplift forces and prevent rafters from sagging but do not counteract wall spreading effectively. Choosing between rafter ties and collar ties depends on the roof design; rafter ties are essential in roofs without ceiling joists, while collar ties complement rafter ties in complex or steep roof structures.
Key Differences Between Rafter Ties and Collar Ties
Rafter ties are horizontal members installed near the bottom of rafters to prevent wall spreading and provide tension resistance, making them essential for structural stability in roof framing. Collar ties are placed higher in the roof structure, connecting opposing rafters in tension to resist uplift forces and reduce sagging, but they do not prevent wall spreading. The key difference lies in their position and function: rafter ties act as tension ties at the roof base controlling outward thrust on walls, while collar ties support mid-to-upper rafter bracing against deflection without bearing load on wall integrity.
Structural Roles and Building Code Requirements
Installing rafter ties prevents outward wall thrust by connecting opposing rafters near the ceiling, effectively maintaining roof stability under lateral loads, and is typically required by building codes for steep-slope roofs. Collar ties, installed higher in the rafter assembly, primarily resist uplift forces and do not address wall spreading, thus often serving as supplementary support rather than a primary structural element according to code standards. Building codes mandate rafter ties to ensure structural integrity of roof framing, whereas collar ties may be optional or specified depending on roof design and local regulations.
Tools and Materials Needed for Installation
Installing rafter ties requires heavy-duty framing hammers, galvanized nails or structural screws, and metal rafter tie plates to secure the ties firmly against the rafters and prevent roof spreading. In contrast, installing collar ties involves using similar tools such as framing hammers and nails but typically requires lighter metal connectors or lag screws due to their placement higher in the roof structure. Both installations benefit from safety equipment like ladders, gloves, and protective eyewear, but rafter tie installation often demands sturdier materials for load-bearing support.
Preparing the Roof Structure for Tie Installation
Preparing the roof structure for installing rafter ties involves ensuring access to the underside of the rafters and verifying that joists or ceiling joists are properly aligned and secured for tie attachment. For collar tie installation, the preparation focuses on locating and reinforcing the upper third of rafters, where the collar ties will connect to resist lateral forces effectively. Both methods require precise measurement and removal of any insulation or obstructions that could interfere with secure fastening and load distribution.
Step-by-Step Installation of Rafter Ties
Installing rafter ties involves securing horizontal members between opposing rafters to prevent outward wall thrust and maintain roof stability, typically by measuring and cutting 2x4 lumber to fit snugly near the rafters' lower third. Begin by spotting the exact location across each rafter pair, then nail or screw the rafter tie directly into the rafters at both ends using galvanized fasteners for durability. Unlike collar ties installed higher in the roof to control rafter separation, rafter ties bear compressive loads and require solid anchoring at the wall plate for effective load transfer.
Step-by-Step Installation of Collar Ties
Installing collar ties involves securing horizontal beams between opposing rafters to prevent roof spread and add structural stability. Begin by measuring the rafter spans and cutting the collar ties from kiln-dried lumber, typically positioned in the upper third of the roof's height. Fasten the collar ties using galvanized nails or screws directly into the rafters, ensuring tight connections for maximum support and durability.
Common Mistakes to Avoid During Installation
Installing rafter ties often involves mistakes such as incorrect placement below the roof peak, which fails to prevent rafter spread effectively, and using inadequate fasteners that compromise structural integrity. Collar ties are sometimes installed too high on the rafters, reducing their ability to resist outward forces and causing roof sagging. Ensuring proper positioning and securing with appropriate hardware is critical to avoid these common installation errors and maintain roof stability.
Evaluating the Performance of Installed Ties
Installing rafter ties provides superior lateral stability by preventing outward wall spread and enhancing roof structure rigidity, whereas collar ties primarily resist upward roof forces and offer limited support against wall separation. Evaluating performance reveals rafter ties effectively reduce rafter deflection and increase overall load distribution, crucial in areas prone to heavy snow or wind loads. Structural assessments indicate that properly installed rafter ties contribute to long-term roof durability by maintaining alignment and minimizing structural stresses compared to collar ties.
Maintenance Tips for Long-Term Roof Stability
Installing rafter ties enhances long-term roof stability by preventing outward wall thrust and maintaining the structural integrity of the roof frame. Regular inspections should focus on checking for signs of wood rot, loose fasteners, and any separation at the joints, ensuring the ties remain securely in place. Compared to collar ties, rafter ties are installed lower in the roof structure, providing superior resistance to outward forces and requiring consistent maintenance to prolong roof durability.

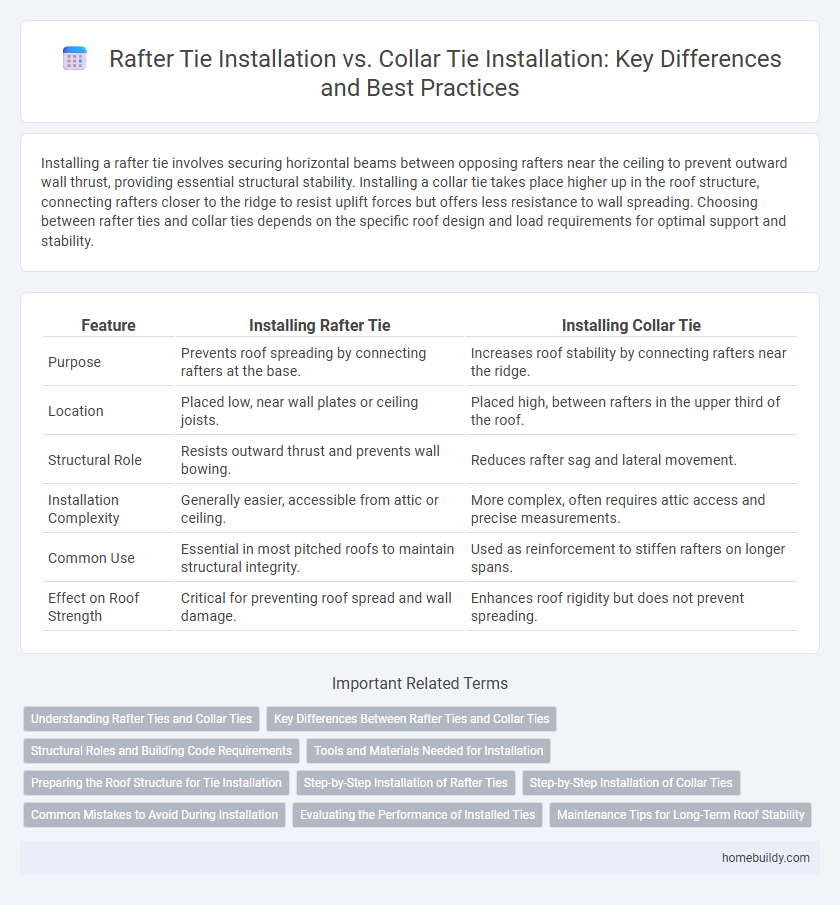

Installing rafter tie vs Installing collar tie Infographic
