homebuildy.com A rafter tie is a horizontal timber beam used to prevent the roof rafters from spreading and to maintain structural stability in traditional wood framing. In contrast, a tie rod is a metal tension member designed to resist tensile forces and is often used in modern construction for added strength and durability. Understanding the differences between rafter ties and tie rods helps optimize roof design for safety and cost-efficiency.
Table of Comparison
| Feature | Rafter Tie | Tie Rod |
|---|---|---|
| Definition | Wooden horizontal member connecting rafters to prevent spreading | Metal rod used to resist tension in structural framing |
| Material | Timber (usually softwood) | Steel or metal alloy |
| Function | Prevents rafter base spreading, stabilizes roof structure | Resists tensile forces, holds structural components under tension |
| Installation Location | Under rafters, spanning between walls | Between wall plates or structural members, often adjustable |
| Load Type Handled | Tension in roof framing | Tension in various structural elements |
| Adjustability | Fixed length, no adjustability | Adjustable with turnbuckles or threaded ends |
| Cost | Low cost, uses common timber | Higher cost due to metal and hardware |
| Durability | Susceptible to rot and insect damage | Highly durable and corrosion-resistant with proper coating |
Introduction to Rafter Ties and Tie Rods
Rafter ties are horizontal structural members connecting opposing rafters at the ceiling level to prevent outward spreading and maintain roof stability. Tie rods serve a similar purpose but are typically metal rods used in tension to resist lateral forces and provide additional support in roof trusses or framing systems. Understanding their materials, placement, and load-bearing roles is essential for effective roof construction and structural integrity.
Basic Definitions: What Are Rafter Ties and Tie Rods?
Rafter ties are horizontal wooden beams installed between opposing rafters in roof structures to prevent the outward spreading of walls caused by roof loads. Tie rods are metal tension members used in construction to provide additional structural support by resisting tensile forces, often connecting opposite sides of a frame to maintain stability. Both components serve to improve roof integrity but differ in material composition and specific structural applications.
Structural Roles: How Rafter Ties and Tie Rods Function
Rafter ties function as horizontal members securing opposing rafters, preventing roof spread and maintaining structural integrity in timber framing. Tie rods, typically made of steel, provide tension support by linking structural points across open spaces, enhancing load distribution and resistance to lateral forces. Both elements stabilize roof structures but differ in material composition and specific load-bearing functions.
Material Differences Between Rafter Ties and Tie Rods
Rafter ties are typically made from dimensional lumber or engineered wood designed to resist tension forces within roof framing, while tie rods are constructed from steel or metal alloys to provide high tensile strength in structural applications. The wood in rafter ties offers adequate support for preventing roof outward spread but lacks the tensile capacity and durability of steel tie rods, which are used in more demanding load conditions. Material differences also influence installation methods and long-term performance, with steel tie rods requiring specialized hardware and adjustment mechanisms unlike traditional wooden rafter ties.
Typical Applications in Construction
Rafter ties are commonly used in residential roof framing to prevent outward spread of rafters and maintain the structural integrity of traditional timber roofs. Tie rods, typically made of steel, are favored in commercial and industrial construction for their high tensile strength and ability to span longer distances without sagging. Both components serve to resist lateral forces, but rafter ties excel in wood-framed applications while tie rods are essential for metal or hybrid structures requiring adjustable tension.
Installation Methods: Rafter Tie vs Tie Rod
Rafter ties are typically installed by nailing or screwing directly between opposing rafters to prevent outward wall spread, offering a simple and effective solution in traditional roof framing. Tie rods, on the other hand, use metal tension rods anchored with bolts or turnbuckles, requiring more precise alignment and often professional installation to provide adjustable tensile support. Installation of tie rods involves securing hardware to structural members, allowing for tension adjustments that rafter ties, being fixed wooden connectors, cannot accommodate.
Strength and Load-Bearing Comparison
Rafter ties provide essential strength by preventing roof spreading and maintaining structural integrity under heavy loads, offering robust load-bearing capacity integrated within wooden framing. In contrast, tie rods, typically made of steel, deliver higher tensile strength and greater resistance to deformation under dynamic loads, making them ideal for long spans and heavy-duty applications. The choice between rafter tie and tie rod depends on specific structural requirements, including load magnitude, span length, and material compatibility.
Cost Implications and Material Efficiency
Rafter ties are typically more cost-effective than tie rods due to their straightforward installation and use of readily available timber, reducing labor and material expenses. Tie rods, often made of steel, provide higher tensile strength and material efficiency but come with increased costs in both materials and specialized labor. Choosing between the two depends on project budget constraints and structural performance requirements.
Building Codes and Compliance Standards
Rafter ties and tie rods serve critical but distinct roles in roof framing, with building codes often specifying their application to prevent wall spreading and ensure structural integrity. Rafter ties, typically wooden members installed at the lower third of a rafter span, are mandated by many codes such as the International Residential Code (IRC) for conventional roof framing to maintain compliance and resist outward thrust. Tie rods, usually steel rods with adjustable tension, are compliant alternatives permitted under certain standards like the American Institute of Steel Construction (AISC) guidelines when greater tensile strength is required or space constraints limit traditional rafter tie installation.
Choosing the Right Solution: Rafter Tie or Tie Rod?
Rafter ties are horizontal members installed between opposing rafters, preventing roof trusses from spreading under load and maintaining structural integrity in traditional wood-framed roofs. Tie rods, typically metal rods with adjustable tensioning devices, provide superior tensile strength and are ideal for long spans or heavy loads where minimal deflection is required. Selecting between a rafter tie and a tie rod depends on factors such as roof design, load requirements, material compatibility, and installation constraints to ensure optimal performance and safety.

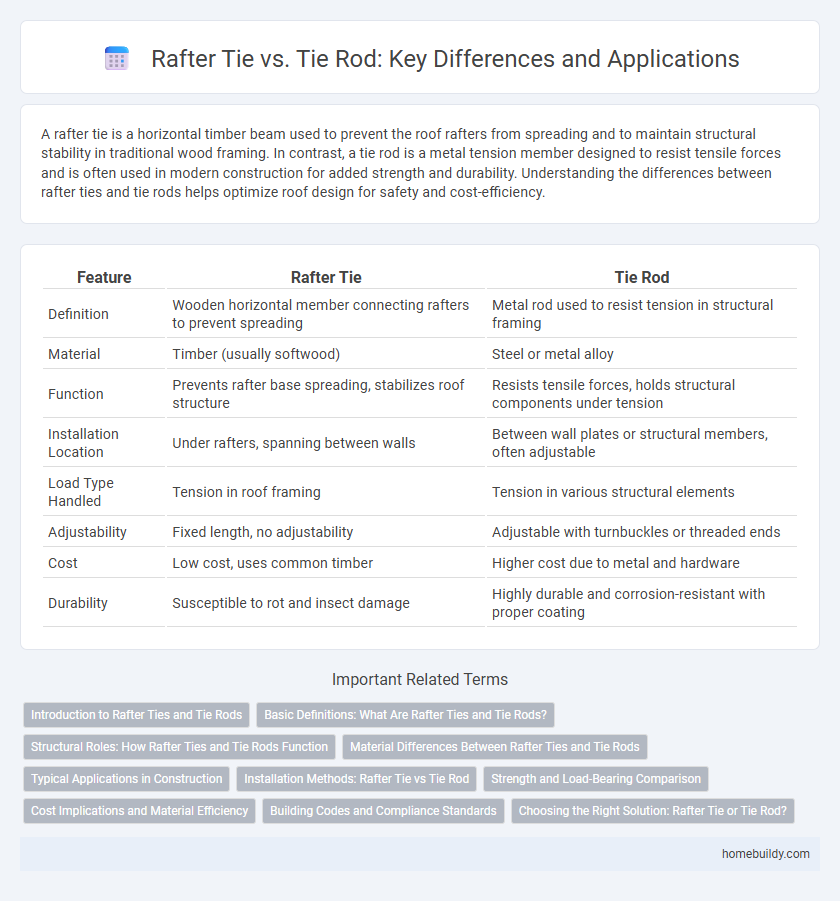

Rafter tie vs Tie rod Infographic
