homebuildy.com A rafter tie is installed at the ceiling level to prevent outward spread of rafters and maintain structural stability, while a collar beam is positioned higher up near the roof ridge to resist inward forces and provide additional support. Both elements work together to reinforce the roof framework, but rafter ties primarily counteract the outward thrust, whereas collar beams help stabilize the upper sections of the rafters. Choosing between them depends on the roof design and the specific load-bearing requirements of the structure.
Table of Comparison
| Feature | Rafter Tie | Collar Beam |
|---|---|---|
| Primary Function | Prevents roof spreading by tying rafters at the base | Enhances roof stability by connecting rafters higher up |
| Location | Near the ceiling level, across the bottoms of rafters | Mid to upper section of rafters, typically above the tie |
| Structural Role | Resists outward thrust, supports tension forces | Reduces rafter sagging, supports compression forces |
| Effect on Roof Shape | Maintains triangular roof geometry | Does not prevent spreading, adds rigidity |
| Typical Use | Common in simple pitched roof framing | Used where additional roof stiffness is required |
Understanding Rafter Ties and Collar Beams
Rafter ties are horizontal members installed near the roof's base to resist outward thrust, preventing wall spread and enhancing structural stability. Collar beams are positioned higher in the roof structure, connecting opposing rafters to resist uplift forces and provide mid-span support. Understanding the distinct roles of rafter ties and collar beams is crucial for effective roof framing design and load distribution.
Structural Roles: Rafter Tie vs Collar Beam
Rafter ties function primarily to resist outward thrust from rafters, stabilizing the roof structure by preventing the walls from spreading under load. Collar beams are positioned higher in the roof structure and serve mainly to resist vertical forces, reducing rafter sagging but not preventing wall spread. Understanding the distinct structural roles of rafter ties and collar beams is essential for optimizing roof stability and load distribution.
Key Differences Between Rafter Ties and Collar Beams
Rafter ties prevent the outward spread of rafters by connecting the lower ends, providing lateral stability to the roof structure. Collar beams are installed higher up between rafters, primarily resisting downward forces and reducing sagging along the roof ridge. While rafter ties handle tensile forces near the base, collar beams address compressive forces in the upper section, making their placement and function distinct in roof framing.
Installation Techniques: Rafter Ties and Collar Beams
Rafter ties are installed horizontally between the lower parts of opposing rafters to prevent outward wall thrust, typically secured with nails or metal anchors at regular intervals. Collar beams are positioned higher up near the roof ridge, connecting rafters to reinforce roof stability and resist uplift forces, often fastened with bolts or screws for added strength. Proper installation of both elements requires precise alignment and secure fastening to ensure structural integrity in timber roof framing.
Advantages of Rafter Ties in Roof Construction
Rafter ties significantly enhance roof stability by preventing outward spread of rafters, effectively countering wall thrust and maintaining structural integrity. Unlike collar beams, which primarily resist vertical loads, rafter ties handle tension forces low in the roof structure, reducing the risk of roof deformation. Their strategic placement allows for greater attic space utilization and simpler installation, making them advantageous in various roof construction scenarios.
Benefits of Using Collar Beams
Collar beams improve roof stability by reducing rafter spread and resisting uplift forces more effectively than rafter ties. They enable greater attic space by being positioned higher, which is ideal for ventilation and additional storage. Using collar beams also enhances the overall structural integrity of complex roof designs without compromising load distribution.
Common Myths: Rafter Tie or Collar Beam?
Rafter ties are often mistaken for collar beams, but they serve distinct structural purposes in roof framing; rafter ties provide horizontal support preventing outward wall spread, while collar beams resist compressive forces higher in the roof. A common myth is that collar beams can replace rafter ties, however, collar beams do not counteract the same outward thrust on walls and are mainly used to stiffen the upper roof structure. Understanding these differences is crucial for proper design and avoiding roof failure due to inadequate lateral restraint.
Building Codes for Rafter Ties and Collar Beams
Building codes strictly regulate the use of rafter ties and collar beams by specifying their placement and load-bearing requirements to ensure roof stability. Rafter ties are typically required at the lower third of the roof to resist outward thrust, preventing wall spread, as mandated by the International Residential Code (IRC). Collar beams, positioned higher in the roof structure, are often allowed for preventing rafter sag but generally do not substitute for rafter ties as per most building codes.
Choosing the Right Solution for Your Roof
A rafter tie is a horizontal member installed near the ceiling level to prevent wall spreading by resisting outward forces, making it ideal for open, vaulted ceilings. In contrast, a collar beam is placed higher up in the rafter and primarily counters rafter bending rather than wall thrust, providing additional roof stability for steeper pitches. Selecting the right solution depends on roof design and load requirements; rafter ties are essential for maintaining structural integrity in standard pitched roofs, while collar beams suit complex or heavier roofing systems needing extra support.
Cost Comparison: Rafter Ties vs Collar Beams
Rafter ties generally offer a more cost-effective solution compared to collar beams due to their simpler design and reduced material requirements. Collar beams, positioned higher in the roof structure, demand stronger and often more expensive timber, increasing overall labor and material costs. Choosing rafter ties can significantly lower construction expenses while maintaining essential structural integrity in traditional roof framing.

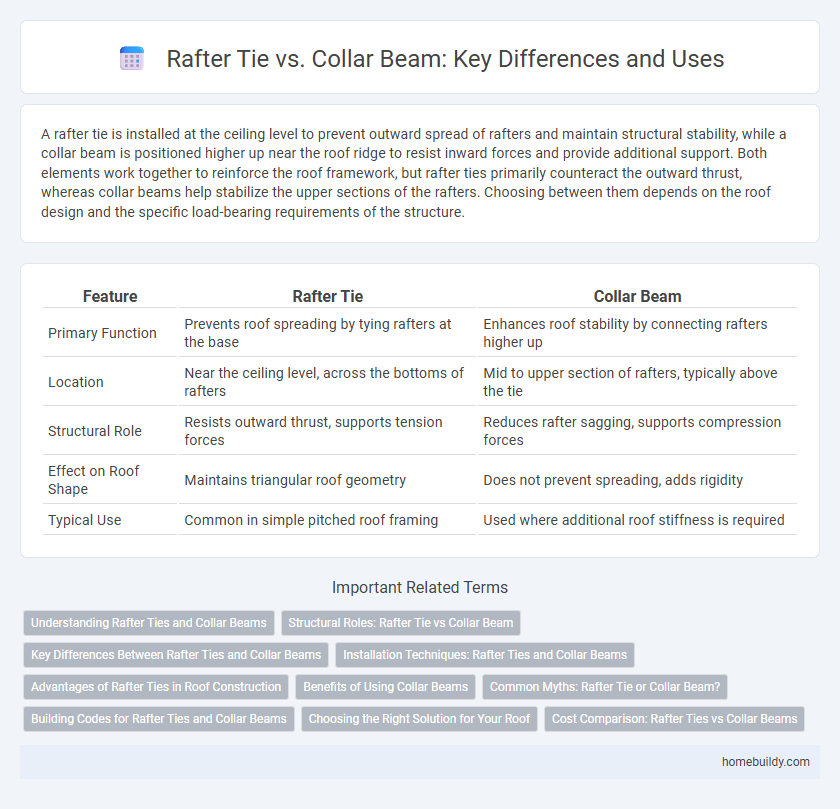

Rafter tie vs Collar beam Infographic
