homebuildy.com A rafter tie is a horizontal member connecting opposing rafters near the roof's base to prevent the walls from spreading under roof load. A tie beam, on the other hand, spans between the tops of walls, supporting floor joists or acting as a ceiling joist, and helps resist bending forces. While both elements provide structural support, rafter ties specifically counteract outward thrust from rafters, whereas tie beams primarily serve to support floors or ceilings.
Table of Comparison
| Feature | Rafter Tie | Tie Beam |
|---|---|---|
| Purpose | Prevents roof rafter spread, maintains structural stability | Supports wall load, prevents wall buckling |
| Location | Installed horizontally between rafters near the roof base | Positioned at top of walls, below roof or floor structures |
| Structural Role | Ties rafters to counteract outward thrust | Acts as a horizontal beam supporting loads |
| Material | Typically timber or steel | Usually reinforced concrete or timber |
| Load Type | Tensile force resisting rafter spread | Compression and bending force from walls and slabs |
| Common Use | Residential roofs to maintain rafter alignment | Found in multi-storey buildings for wall and floor support |
Introduction to Rafter Ties and Tie Beams
Rafter ties are horizontal members installed between opposing rafters to prevent outward thrust and maintain roof stability, typically positioned in the attic space. Tie beams, on the other hand, are more substantial horizontal beams that connect the tops of opposing walls, often forming part of the building's structural framework to support both roof loads and floor structures. Both rafter ties and tie beams serve critical functions in resisting roof spread, but rafter ties mainly stabilize rafters while tie beams provide broader structural support in the building framework.
Structural Roles: Rafter Tie vs Tie Beam
Rafter ties function primarily to prevent the outward spreading of rafters by connecting opposing rafters near the roof base, providing lateral stability and resisting thrust forces. Tie beams, by contrast, serve as horizontal structural members that support floor loads or transfer roof loads to walls, often positioned below ceiling joists or as part of the floor structure. While both contribute to roof stability, rafter ties are specifically designed to counteract rafter thrust, whereas tie beams are integral in load distribution within the framework.
Key Differences Between Rafter Ties and Tie Beams
Rafter ties are horizontal members installed between opposing rafters to prevent roof spread and maintain structural stability by resisting outward thrust, primarily functioning within roof framing. Tie beams, on the other hand, are horizontal beams that connect walls or posts at a lower level, supporting loads from floors or roofs and providing overall building structural integrity. The key difference lies in their placement and load-bearing roles: rafter ties control roof geometry and prevent rafter separation, while tie beams bear vertical loads and stabilize wall positions.
Functions of Rafter Ties in Roofing Systems
Rafter ties prevent roof sagging by connecting opposing rafters, enhancing structural stability in pitched roofing systems. Unlike tie beams which primarily support floors or ceilings, rafter ties specifically counteract outward thrust forces, maintaining roof shape under load. This function is critical in timber-framed roofs to avoid wall spreading and potential collapse.
Applications of Tie Beams in Building Construction
Tie beams are horizontal structural elements primarily used to connect two or more vertical supports, providing lateral stability and preventing walls from spreading under roof loads. Commonly found in multi-story buildings and frames, tie beams help distribute loads evenly and reduce deflection in reinforced concrete and masonry structures. Unlike rafter ties that resist roof thrust, tie beams are vital for maintaining the overall integrity of the building framework by enhancing rigidity and load transfer.
Materials Used for Rafter Ties and Tie Beams
Rafter ties are typically made of dimensional lumber such as pine or fir, selected for their tensile strength and availability in standard sizes, ensuring effective resistance to roof spreading forces. Tie beams often utilize heavier, more robust materials like laminated timber or steel, providing enhanced load-bearing capacity and structural stability in large spans or heavy roof constructions. Material choice directly influences the performance of rafter ties and tie beams in resisting tension and compression within roof framing systems.
Installation Methods: Rafter Ties vs Tie Beams
Rafter ties are installed horizontally between opposing rafters near the roof's base to prevent outward wall spread, typically secured with nails or metal connectors. Tie beams run across the entire width of the structure at various heights, often integrated during framing, using larger timber sections bolted or fixed with heavy-duty fasteners for added stability. Installation of rafter ties is simpler and less intrusive, while tie beams require more extensive carpentry and structural considerations to support floor loads or upper stories.
Common Mistakes to Avoid When Using Rafter Ties and Tie Beams
Common mistakes when using rafter ties and tie beams include improper placement, such as installing ties too high on the rafters, which reduces their effectiveness in preventing roof spreading. Confusing the functions of rafter ties and tie beams leads to structural issues; rafter ties resist outward thrust in the attic space, while tie beams support floor or ceiling loads. Ensuring correct sizing, correct fastening methods, and understanding load paths are essential to avoid structural failures and maintain roof integrity.
Cost Considerations and Efficiency
Rafter ties typically cost less than tie beams due to their simpler installation and use of fewer materials, making them a budget-friendly option for residential roofing. Efficiency-wise, rafter ties effectively prevent wall spreading and roof collapse by connecting opposing rafters, whereas tie beams provide stronger structural support but require more labor and material investment. Selecting between the two depends on the project's load requirements and budget constraints, with rafter ties excelling in cost-efficiency for lighter loads.
Choosing Between Rafter Ties and Tie Beams: Factors to Evaluate
Choosing between rafter ties and tie beams depends on structural requirements and roof design, with rafter ties preventing roof spread by connecting opposing rafters, ideal for lightweight roofs. Tie beams, on the other hand, provide stronger horizontal support across walls, suitable for heavier loads and complex architectural structures. Evaluate factors such as roof load, span length, and wall stability to determine whether rafter ties or tie beams offer the necessary reinforcement.

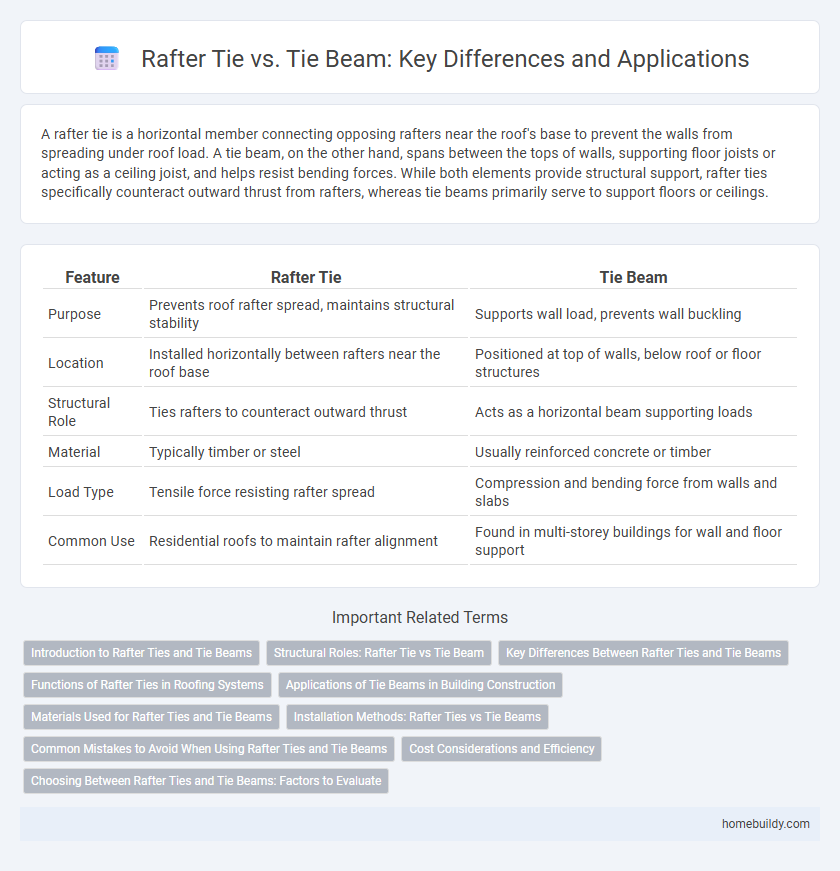

Rafter tie vs Tie beam Infographic
