homebuildy.com Rafter ties and roof straps both provide structural support but serve different purposes; rafter ties connect opposing rafters to prevent outward thrust on walls, while roof straps secure the roof structure to the walls, enhancing resistance to uplift forces. Rafter ties are typically installed horizontally across the attic space, creating tension that stabilizes the roof frame, whereas roof straps are metal connectors that tie the roof framework directly to the top plate of the wall. Choosing between a rafter tie and a roof strap depends on the specific structural requirements, with rafter ties focusing on internal stability and roof straps improving external anchoring against wind damage.
Table of Comparison
| Feature | Rafter Tie | Roof Strap |
|---|---|---|
| Purpose | Prevents roof rafters from spreading, stabilizes roof structure | Secures roof to walls, enhances hurricane and seismic resistance |
| Location | Installed horizontally between opposing rafters near ceiling level | Runs vertically from roof rafters or trusses down to wall framing |
| Material | Usually dimensional lumber or metal straps | Made of galvanized steel straps or specialized metal connectors |
| Structural Role | Resists outward thrust from roof load, maintains rafter spacing | Transfers uplift and lateral forces to foundation |
| Building Code | Common in traditional framing, often required by codes for stability | Required in high wind or seismic zones per building standards |
| Installation Complexity | Simple to install during framing | Requires precise placement and fastening for maximum load transfer |
Understanding Rafter Ties and Roof Straps
Rafter ties are horizontal members that connect opposite rafters to prevent the roof from spreading and maintain structural integrity, often installed in traditional roof framing. Roof straps, typically metal connectors, reinforce and secure rafters to other framing components, providing additional resistance to uplift forces and enhancing roof stability during high winds. Understanding the distinct functions of rafter ties and roof straps is essential for optimizing roof strength and ensuring compliance with building codes.
Purpose and Function of Rafter Ties
Rafter ties serve as critical structural elements designed to resist outward thrust from roof rafters, preventing the walls from spreading under load by tying opposite rafters together at their base. Unlike roof straps, which primarily reinforce connections between framing members to enhance seismic and wind resistance, rafter ties maintain the overall stability and integrity of the roof structure by counteracting lateral forces. Their purpose is to ensure the roof assembly remains secure, especially in traditional wood framing, by creating tension that holds the rafters in position and supports the roof's load distribution.
Purpose and Function of Roof Straps
Roof straps primarily secure the roof structure to the building frame, preventing uplift during high winds and storms. Unlike rafter ties, which connect opposing rafters to resist outward thrust, roof straps provide lateral anchorage and enhance the overall roof stability by distributing wind loads evenly. Their purpose is to maintain the integrity of the roof assembly by firmly attaching it to the walls, reducing the risk of roof detachment.
Key Differences Between Rafter Ties and Roof Straps
Rafter ties are horizontal structural members used to prevent the outward spread of rafters, providing essential support along the roof's base and maintaining the stability of the roof framing. Roof straps, typically metal connectors, secure rafters to wall plates or other structural elements, enhancing resistance to uplift forces caused by high winds or seismic activity. The key differences lie in their function and placement: rafter ties control roof spread internally, while roof straps reinforce external connections for improved structural integrity.
Structural Impact: Rafter Tie vs Roof Strap
Rafter ties provide critical tensile support by preventing outward thrust of rafters, maintaining roof stability under load. Roof straps offer enhanced resistance to uplift forces during high winds by securely anchoring roof components. Choosing between rafter ties and roof straps depends on specific structural requirements, with ties focusing on lateral stability and straps on vertical uplift protection.
Installation Process: Step-by-Step Comparison
Rafter tie installation involves securing a horizontal beam between opposing rafters to prevent roof spread, typically using nails or screws at each end, ensuring tight fit and alignment with the roof framing. Roof strap installation requires fastening metal straps diagonally or horizontally across rafters and joists, using specialized screws or nails, often necessitating precise measurement and positioning to enhance structural integrity. Both methods demand careful adherence to building codes, but rafter ties are generally simpler to install due to straightforward placement, whereas roof straps offer greater versatility in reinforcing complex roof structures.
Building Codes: Requirements for Rafter Ties and Roof Straps
Building codes require rafter ties to be installed at specific locations to resist outward wall thrust and maintain roof structural integrity, typically positioned in the lower third of the roof span. Roof straps, governed by code as hurricane ties or tie-downs, must meet standards for uplift resistance and are often mandated in high-wind zones to secure rafters to wall plates. Compliance with local building regulations ensures both rafter ties and roof straps provide necessary load-bearing support and improved overall roof stability.
Pros and Cons: Rafter Ties vs Roof Straps
Rafter ties provide essential tension support by connecting opposing rafters, enhancing roof stability and preventing wall spread, which is ideal for traditional framing but can be labor-intensive to install and less flexible for complex roof shapes. Roof straps offer a simpler installation process and greater versatility by securing rafters to the top plate or ridge, improving resistance to uplift forces from high winds; however, they may not provide the same level of structural rigidity as a continuous rafter tie. Choosing between rafter ties and roof straps depends on factors such as roof design complexity, structural load requirements, and local building codes.
Common Applications in Modern Construction
Rafter ties are commonly used in traditional timber roof framing to resist outward thrust and prevent wall spread by connecting opposing rafters at the base. Roof straps, often made of galvanized steel, are favored in modern construction for enhancing structural stability by tying rafters to top plates, providing resistance against wind uplift and seismic forces. Both components serve critical roles in roof load distribution, with rafter ties primarily arresting rafter spread and roof straps ensuring overall roof-to-wall integration in contemporary building codes.
Choosing the Right Solution: Rafter Tie or Roof Strap?
Selecting between a rafter tie and a roof strap depends on the specific structural needs and code requirements of your building project. Rafter ties provide horizontal support to resist outward thrust at the rafters' base, ideal for standard roof framing to prevent wall spreading. Roof straps offer enhanced tension resistance, securing rafters directly to wall plates, which is crucial in high-wind or seismic zones for improved roof stability.

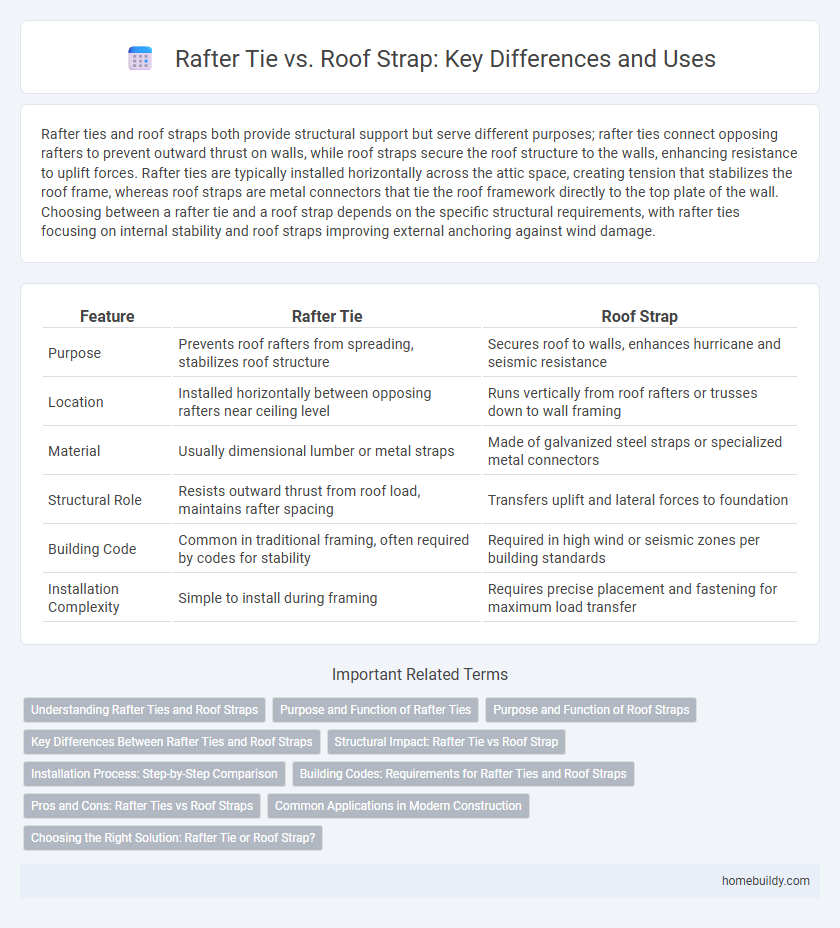

Rafter tie vs Roof strap Infographic
