homebuildy.com Rafter ties secure the rafters by connecting opposite walls, preventing outward thrust and roof spreading, whereas double top plates serve as a horizontal support layer to evenly distribute loads across wall studs. While rafter ties provide essential structural stability to the roof framing, double top plates contribute primarily to wall alignment and load transfer between framing elements. Understanding the distinct roles of rafter ties versus double top plates is crucial for ensuring proper roof and wall integrity in construction.
Table of Comparison
| Feature | Rafter Tie | Double Top Plate |
|---|---|---|
| Purpose | Prevents roof rafter spread, enhances structural stability | Distributes load between walls, aligns framing sections |
| Location | Installed between opposing roof rafters | Placed on top of wall studs, below roof structure |
| Material | Typically dimensional lumber (2x4 or 2x6) | Usually two layers of 2x4 or 2x6 lumber |
| Structural Role | Resists outward thrust from roof load | Supports wall alignment, handles vertical loads |
| Installation | Nailed or screwed across rafters near ceiling level | Staggered joints, nailed over wall studs |
| Common Usage | Roof framing to prevent wall spreading | Wall framing in wood-frame construction |
Introduction to Rafter Tie and Double Top Plate
Rafter ties are horizontal members installed between opposing rafters to prevent outward wall spread and enhance roof stability, commonly used in traditional roof framing. Double top plates consist of two layers of horizontal framing members placed atop wall studs, providing structural reinforcement and distributing roof loads evenly across the walls. Both components are critical in roof construction, with rafter ties focusing on tension resistance within the roof structure and double top plates improving overall wall strength and load transfer.
Structural Roles: Rafter Tie vs Double Top Plate
Rafter ties primarily function to resist outward thrust from roof rafters, preventing wall spread and enhancing roof stability. Double top plates distribute vertical loads evenly across wall studs, providing structural continuity and alignment between framing components. While rafter ties are critical for lateral bracing in roof structures, double top plates facilitate load transfer and wall strength in overall framing systems.
Key Differences in Roof Framing
A rafter tie is a horizontal member connecting two opposing rafters to prevent them from spreading under load, crucial for stabilizing the roof structure by resisting outward thrust. In contrast, a double top plate consists of two layers of horizontal framing members that cap wall studs, providing added strength and alignment for load distribution across the walls. The key difference lies in function: rafter ties resist roof uplift and rafter spread, while double top plates ensure wall stability and proper transfer of roof and upper-floor loads to the foundation.
Advantages of Using Rafter Ties
Rafter ties provide superior resistance to outward wall thrust by effectively connecting opposing rafters, enhancing the structural stability of pitched roofs. Unlike double top plates, which primarily serve to align and distribute wall loads, rafter ties directly prevent roof spreading and ceiling sagging. Their strategic placement also allows for easier installation of insulation and mechanical systems, optimizing energy efficiency in residential and commercial buildings.
Benefits of Double Top Plate Construction
Double top plate construction enhances roof stability by providing continuous load distribution across wall studs, reducing structural movement compared to rafter ties. It offers improved alignment and easier installation of roof framing components, resulting in increased strength and durability of the overall structure. This method also facilitates better connection of intersecting walls, enhancing seismic and wind resistance in building frameworks.
Installation Process Comparison
Rafter ties are installed by fastening horizontal beams between opposing rafters to prevent roof spread, requiring precise alignment and sturdy nailing or strapping at rafter bottoms. Double top plates consist of two layers of horizontal framing members stacked atop wall studs, providing structural stability through overlapping joints and nailed connections during wall assembly. Unlike double top plates, rafter ties demand careful measurement within the roof framing, whereas double top plates are integrated during wall construction, making their installation process fundamentally different in timing and technique.
Load Distribution and Structural Integrity
Rafter ties play a crucial role in maintaining structural integrity by preventing roof rafters from spreading and transferring lateral loads to the walls, enhancing load distribution across the roof structure. Double top plates contribute to load distribution by providing a continuous bearing surface for wall studs and aligning roof loads evenly over supporting studs and posts. Compared to double top plates, rafter ties specifically address tensile forces and resist rafter uplift, making them essential for the overall stability of angled roof framing systems.
Building Codes and Compliance
Rafter ties are critical structural elements required by most building codes to prevent roof rafters from spreading and compromising the wall integrity, especially in residential construction. Double top plates serve as horizontal framing members that stabilize wall studs and distribute loads but do not substitute the load-bearing and tension functions of rafter ties mandated in codes such as the IRC (International Residential Code). Compliance with building regulations necessitates proper installation of rafter ties in roof framing systems, while double top plates contribute to overall structural stability but are not a code-compliant replacement for rafter ties.
Cost Analysis: Rafter Tie vs Double Top Plate
Rafter ties generally offer a more cost-effective solution compared to double top plates due to lower material and labor expenses, making them ideal for budget-conscious framing projects. Double top plates, while providing enhanced structural stability and load distribution, often incur higher costs because of increased lumber requirements and additional installation time. Evaluating the balance between upfront costs and long-term structural benefits is essential for selecting the appropriate framing method.
Choosing the Right Method for Your Project
Rafter ties provide essential resistance against outward roof thrust, ensuring structural stability in open wall designs, while double top plates distribute load evenly across wall studs for enhanced frame strength. Selecting between rafter ties and double top plates depends on roof design, load requirements, and wall configuration; rafter ties are ideal for preventing wall spread in vaulted ceilings, whereas double top plates suit conventional framing with multiple load points. Evaluating project-specific factors like span length, roof pitch, and local building codes ensures optimal structural performance and safety.

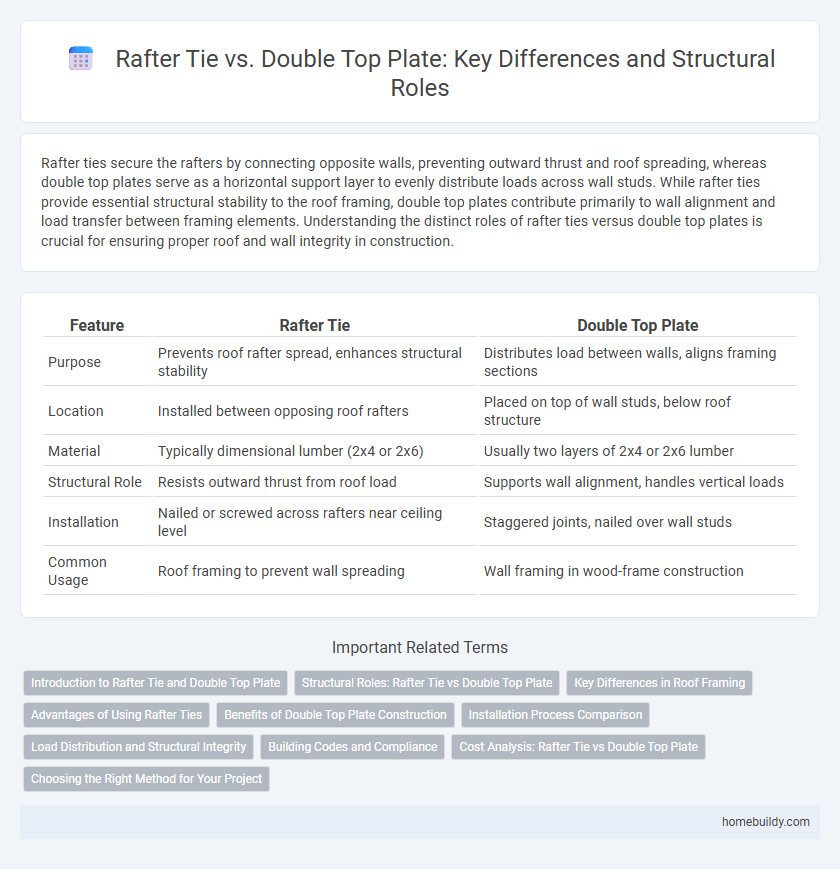

Rafter tie vs Double top plate Infographic
