homebuildy.com A rafter tie is a horizontal member installed between opposing rafters to prevent the roof from spreading and to maintain structural integrity. In contrast, a knee wall is a short vertical wall used to support rafters and create usable attic space while transferring roof loads to the floor below. Rafter ties are primarily tension elements controlling outward thrust, whereas knee walls provide both support and partition functions within the attic structure.
Table of Comparison
| Feature | Rafter Tie | Knee Wall |
|---|---|---|
| Purpose | Prevents roof rafter spreading by connecting opposite rafters. | Supports rafters mid-span, creating usable attic space. |
| Structural Role | Tensile member resisting outward thrust. | Compressive support reducing rafter span. |
| Location | Installed horizontally at the base of rafters. | Vertical wall positioned between rafters. |
| Effect on Space | Limits attic headroom. | Increases usable attic space. |
| Material | Typically wood or engineered lumber. | Wood framing with drywall or finish materials. |
| Use Case | Simple roof systems needing lateral stability. | Complex roofs requiring attic flooring or extra support. |
Understanding Rafter Ties and Knee Walls
Rafter ties are horizontal beams that connect opposing rafters to prevent spreading and provide structural stability in roof framing. Knee walls are short vertical walls that support rafters partway along their span, reducing rafter length and load but requiring proper bracing. Understanding the differences between rafter ties and knee walls helps optimize roof design for load distribution and framing integrity.
Structural Roles: Rafter Tie vs Knee Wall
Rafter ties serve as horizontal tension members connecting opposing rafters to prevent outward spreading of the roof structure, maintaining ridge stability. Knee walls act as vertical or angled supports, transferring roof loads directly to the floor and reducing rafter span, enhancing overall structural stiffness. While rafter ties resist lateral thrust, knee walls provide additional vertical support, often used in combination for optimal roof framing performance.
Construction Differences Between Rafter Tie and Knee Wall
Rafter ties are horizontal structural members installed between opposing rafters to prevent outward spreading of the roof, primarily resisting tension forces and stabilizing the roof frame. Knee walls are short vertical walls built between the floor and rafters, providing vertical support that transfers roof loads to the floor structure and reduces rafter span, effectively acting as compression elements. The main construction difference lies in their function and placement: rafter ties connect rafters laterally near the ceiling plane, while knee walls create intermediate support points below the rafters, often allowing for attic space utilization.
Load Distribution: Rafter Tie vs Knee Wall
Rafter ties provide horizontal tension that prevents outward wall thrust by tying opposing rafters together, effectively distributing roof loads across the entire structure. Knee walls, conversely, transfer roof loads vertically by supporting rafters midway, concentrating stress on the wall beneath and potentially causing localized load points. This difference in load distribution impacts structural stability, with rafter ties minimizing wall spreading while knee walls offer additional vertical support but require stronger wall framing.
Common Applications in Roof Framing
Rafter ties are commonly used in roof framing to prevent outward spreading of rafters and provide lateral stability, especially in open attic spaces where knee walls are absent. Knee walls are traditionally applied in framing to support roof rafters and transfer loads to floors in attics with habitable or partially finished spaces. Rafter ties are preferred in simple gable roofs, while knee walls are suited for complex roof designs requiring additional vertical support.
Advantages of Using Rafter Ties
Rafter ties provide critical structural support by preventing roof rafters from spreading and walls from bowing outward, enhancing overall building stability. They are simpler to install than knee walls and require less material, reducing construction time and costs. Unlike knee walls, rafter ties maintain open space under the roof, allowing for better ventilation and flexible attic use.
Knee Walls: When and Why to Use Them
Knee walls provide crucial support in roof framing by transferring loads from rafters to floors, preventing rafter sagging in long spans where rafter ties may be insufficient. They are ideal in open spaces where vaulted ceilings are desired while maintaining structural integrity, offering vertical reinforcement that rafter ties alone cannot supply. Knee walls also allow for additional insulation and storage space, enhancing both energy efficiency and functionality within attic areas.
Comparing Building Code Requirements
Rafter ties and knee walls serve distinct structural roles, with building codes mandating specific requirements for each to ensure roof stability and prevent outward wall thrust. Rafter ties are generally required in conventional roof framing to resist tension forces, often specified by spans and loads per the International Residential Code (IRC) or local amendments. Knee walls are subject to stricter bracing and anchoring regulations under codes like the IRC SS R602.6, especially when bearing on ceilings, due to their impact on load distribution and lateral stability.
Impact on Attic Space and Usability
Rafter ties are installed horizontally between opposing rafters, which restricts the attic space by creating a lower ceiling height but enhances structural stability by preventing outward wall spread. Knee walls, short vertical walls supporting rafters, elevate the ceiling height and increase usable attic space by providing more headroom. Choosing between rafter ties and knee walls affects attic usability, with knee walls offering greater flexibility for storage or living areas, while rafter ties prioritize roof integrity.
Cost and Installation Considerations
Rafter ties typically cost less than knee walls due to simpler materials and quicker installation times, reducing overall labor expenses. Installation of rafter ties requires minimal framing skills and can be completed faster, while knee walls involve more complex carpentry, additional materials, and increased labor costs. Budget-conscious projects favor rafter ties for cost-efficiency, whereas knee walls offer added structural support but at higher expense and installation complexity.

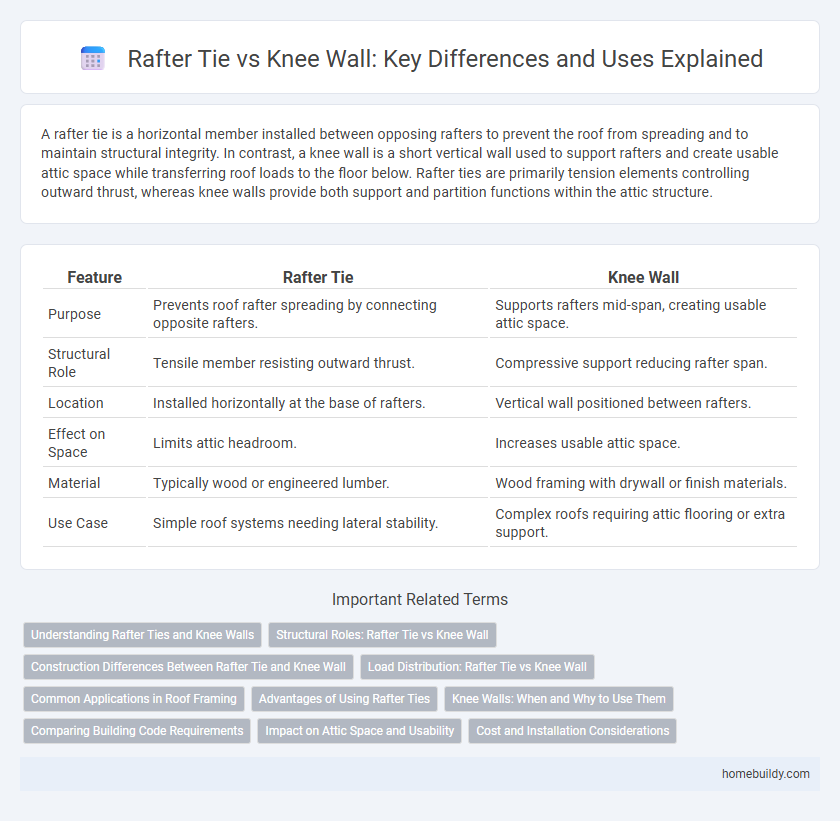

Rafter tie vs Knee wall Infographic
