homebuildy.com A rafter tie is a horizontal member that connects opposing rafters to prevent roof spread and maintain structural integrity, while a strongback is a vertical or diagonal beam used to support and stiffen rafters along their length. Rafter ties resist outward thrust forces, securing the walls from bowing, whereas strongbacks provide mid-span support to reduce rafter deflection and bending. Choosing between a rafter tie and a strongback depends on whether the goal is to control roof spread or enhance rafter stiffness.
Table of Comparison
| Feature | Rafter Tie | Strongback |
|---|---|---|
| Purpose | Prevents roof spread, stabilizes rafters | Supports attic floor joists, reinforces rafters |
| Location | Installed horizontally between opposing rafters | Installed longitudinally along rafters |
| Material | Typically wood or metal straps | Usually lumber or engineered wood |
| Load Type | Tension force to resist outward thrust | Bending support and load distribution |
| Installation | Simple, connects rafter pairs at lower points | Complex, runs along multiple rafters for reinforcement |
| Common Use | Residential roof framing to prevent wall spread | Attic floor reinforcement and rafter stiffening |
Introduction to Rafter Ties and Strongbacks
Rafter ties are critical structural components installed between opposing rafters to resist outward thrust and maintain roof stability, preventing wall spreading in traditional roofing systems. Strongbacks, on the other hand, are horizontal supports placed perpendicular to rafters to reduce sagging and increase rigidity across longer spans. Understanding the distinct roles of rafter ties and strongbacks ensures proper roof framing design and enhanced load distribution.
Purpose of Rafter Ties in Roof Framing
Rafter ties are horizontal members installed between opposing rafters to prevent outward wall thrust and maintain roof stability by resisting spreading forces. Unlike strongbacks, which are primarily used to support and straighten rafters along their length, rafter ties specifically counteract lateral tension forces at the base of the rafters. Proper use of rafter ties ensures the structural integrity of roof framing by securely linking rafters and preventing roof collapse.
Function of Strongbacks in Construction
Strongbacks in construction serve primarily to reinforce and stabilize rafters by distributing loads and preventing sagging or deflection, ensuring structural integrity. Unlike rafter ties, which connect opposing rafters at the base to resist outward thrust, strongbacks run perpendicular to rafters, providing continuous support along the rafter length. This function is crucial in long-span roofs where added rigidity is required to maintain roof alignment and resist bending forces.
Structural Differences: Rafter Tie vs Strongback
Rafter ties are horizontal members installed between opposing rafters to prevent roof spreading and maintain structural integrity by resisting outward thrust. Strongbacks are vertical or diagonal braces attached to rafters to reduce sagging and distribute loads evenly across the structure. The key structural difference lies in their function: rafter ties primarily counteract lateral forces, while strongbacks provide additional support against bending and deflection within the rafter system.
Load Distribution: How Rafter Ties and Strongbacks Perform
Rafter ties primarily function to resist outward thrust and prevent roof sagging by tying opposing rafters together, effectively distributing lateral loads across the roof structure. Strongbacks serve as reinforcement beams, spanning across multiple rafters to stiffen the roof deck and help evenly distribute vertical loads, such as snow or wind pressure. When combined, rafter ties and strongbacks enhance overall load distribution by addressing both lateral and vertical forces within the roofing system.
Installation Methods for Rafter Ties and Strongbacks
Rafter ties are typically installed horizontally between opposing rafters at the ceiling level to prevent outward wall thrust, using nails or screws to secure them firmly to both rafters. Strongbacks are installed vertically or diagonally across multiple rafters to reduce deflection and provide additional support, often fastened with screws or bolts to evenly distribute loads. Both installation methods require precise measurement and secure fastening to ensure the structural integrity of roof framing systems.
Common Applications in Residential and Commercial Roofs
Rafter ties are commonly used in residential roofs to prevent outward spread of rafters and maintain structural integrity, especially in traditional wood-framed buildings. Strongbacks are typically employed in commercial roofing projects to provide continuous support for floor or roof joists, enhancing load distribution over longer spans. Both components are essential in roof framing but serve distinct functions tailored to the specific demands of residential or commercial construction.
Building Code Requirements and Recommendations
Rafter ties are essential components in roof framing, mandated by most building codes to prevent outward spread of rafters and ensure structural stability. Strongbacks, while providing additional support to rafters by reducing deflection, are generally considered supplemental and not explicitly required by building codes. Building code requirements prioritize continuous and properly installed rafter ties to maintain roof integrity, while strongbacks are recommended primarily for enhancing durability in long-span or heavy-load roofing systems.
Pros and Cons: Rafter Tie vs Strongback
Rafter ties provide essential lateral support by preventing outward thrust on walls, making them ideal for maintaining roof stability in traditional timber framing. Strongbacks offer superior rigidity by distributing loads across multiple rafters, reducing sagging and increasing overall roof strength, which is beneficial in long-span constructions. However, rafter ties are typically easier and quicker to install, while strongbacks require more material and precise placement, potentially increasing labor and cost.
Choosing the Right Solution: Factors to Consider
When selecting between a rafter tie and a strongback, factors such as load distribution, span length, and roof design play crucial roles. Rafter ties provide horizontal tension to prevent wall spreading in pitched roofs, making them ideal for standard residential framing, while strongbacks offer additional support by stiffening and reducing deflection in long rafter spans. Evaluating structural requirements, local building codes, and material availability ensures the optimal choice for roof stability and safety.

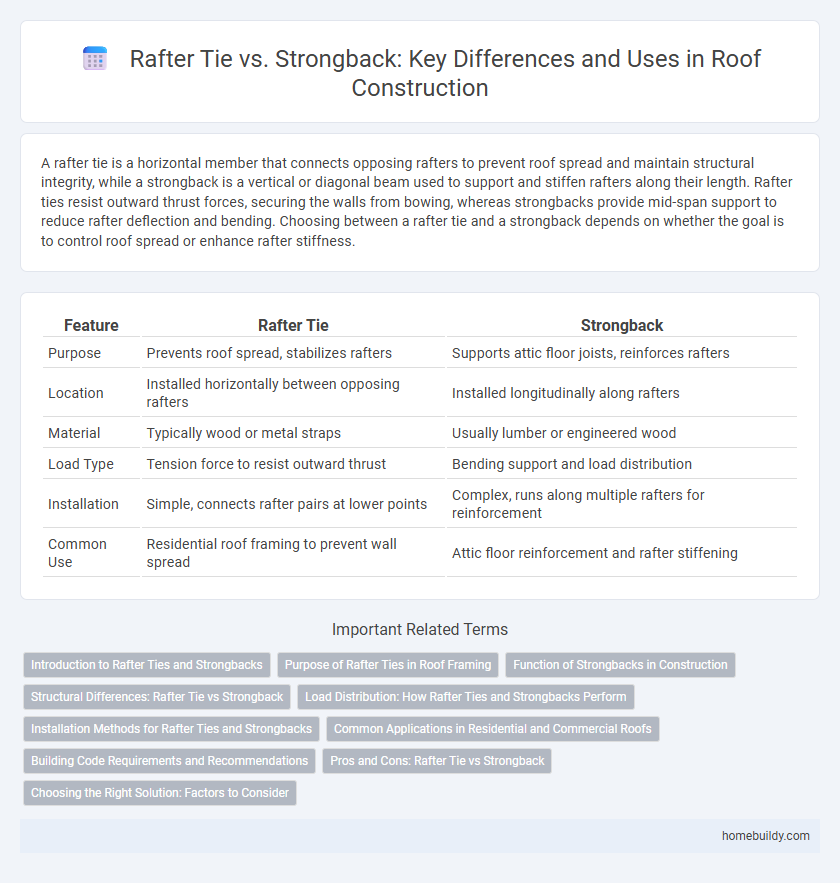

Rafter tie vs Strongback Infographic
