homebuildy.com Rafter ties and king posts serve distinct structural functions in roof framing, with rafter ties preventing outward thrust by connecting opposite rafters, enhancing stability in simple pitched roofs. King posts act as central vertical supports in truss systems, bearing loads from the ridge beam down to the tie beam, allowing for longer spans and more open spaces. Choosing between rafter ties and king posts depends on roof design, load requirements, and architectural considerations.
Table of Comparison
| Feature | Rafter Tie | King Post |
|---|---|---|
| Purpose | Prevents roof rafters from spreading. | Supports roof ridge and transfers load to foundation. |
| Location | Horizontal member at the base of rafters. | Vertical central post from tie beam to ridge. |
| Structural Role | Acts as a tension tie to resist outward thrust. | Acts as compression member supporting the ridge beam. |
| Material | Typically wood or steel. | Typically wood or steel. |
| Complexity | Simple design and installation. | More complex due to extra vertical post. |
| Load Distribution | Transfers lateral forces across rafters. | Transfers vertical load from ridge to foundation. |
| Common Use | Residential and small-span roofs. | Larger span roofs requiring central support. |
Introduction to Rafter Ties and King Posts
Rafter ties are horizontal structural elements connecting opposing rafters to prevent roof sagging and provide lateral stability, typically used in residential roof framing. King posts serve as central vertical supports extending from a tie beam to the roof ridge, distributing loads and enhancing roof strength in truss systems. Both components play crucial roles in maintaining roof integrity but differ in function and application within timber structures.
Structural Function: Rafter Ties vs King Posts
Rafter ties serve as horizontal tension members that prevent the outward spread of rafters and maintain the structural integrity of the roof by resisting lateral forces. In contrast, king posts act as vertical compression members that support the ridge beam and transfer roof loads directly to the tie beam or foundation. Both elements are integral to roof truss systems but function differently in load distribution and stability.
Design Differences and Visual Impact
A rafter tie is a horizontal beam connecting two opposing rafters to prevent outward spreading, creating a simpler and less obtrusive design compared to the vertical central post of a king post truss. The king post features a prominent vertical member extending from the roof peak to the tie beam, offering a more visually striking and traditional architectural element. Visually, rafter ties maintain clean, unobtrusive lines, while king posts add depth and character by emphasizing structural symmetry and central support.
Load Distribution and Roof Stability
Rafter ties provide horizontal support by connecting opposing rafters, effectively reducing outward thrust on walls and enhancing roof stability through load distribution across the structure. King posts serve as a central vertical support, transferring roof loads directly to the tie beam, optimizing load bearing in triangular truss systems. While rafter ties primarily counteract lateral forces, king posts improve vertical load transfer, making each suitable for different roof stability needs.
Application Scenarios for Rafter Ties
Rafter ties are primarily used in residential roof framing to prevent the walls from spreading under the roof load, making them ideal for simple gable roofs and small to medium spans. They effectively resist outward thrust by connecting opposing rafters, which is essential in structures without vertical supports beneath the roof ridge. Unlike king posts that support longer spans and heavy loads, rafter ties are preferred in light framing scenarios where cost-efficiency and straightforward installation are critical.
Application Scenarios for King Posts
King posts are primarily utilized in roof truss systems where a central vertical support is necessary to bear heavy loads and span longer distances. They are ideal for open spaces such as halls or auditoriums, providing strong mid-span support and reducing sagging in rafters. In contrast to rafter ties, king posts efficiently transfer roof loads directly to the foundation, making them suitable for structures requiring enhanced stability and load distribution.
Installation Techniques and Best Practices
Rafter ties are installed horizontally between opposing rafters to prevent outward wall thrust, typically fastened with nails or screws at every rafter pair, ensuring consistent structural support. King posts run vertically from the roof ridge to the tie beam, requiring precise alignment and secure connections with bolts or metal plates to effectively transfer loads. Best practices include verifying timber quality, accurate measurement before cutting, and reinforcing critical joints to maximize durability and safety in both rafter tie and king post installations.
Material Choices and Cost Comparison
Rafter ties are typically made from dimensional lumber such as 2x4 or 2x6 pine, offering an affordable and widely available option for reinforcing roof structures, whereas king posts are often constructed from solid timber or engineered wood for increased strength and durability. The cost of rafter ties is generally lower due to simpler materials and ease of installation, making them a budget-friendly choice for basic roof designs. King posts require more material and labor investment, resulting in higher overall expenses but providing superior load-bearing capacity in complex roofing systems.
Advantages and Disadvantages of Each Method
Rafter ties provide effective lateral support by connecting opposing rafters, preventing wall spread and reducing the need for additional vertical supports, making them ideal for simple roof structures. King posts, which feature a central vertical post extending from the tie beam to the roof ridge, offer superior load transfer and stability, especially in larger or more complex roof designs, but may require more materials and labor. While rafter ties are cost-efficient and easier to install, king posts can handle heavier loads and longer spans, though they may reduce attic space and increase construction complexity.
Choosing Between Rafter Tie and King Post: Key Considerations
When selecting between a rafter tie and a king post, structural load distribution and roof span are critical factors to evaluate. Rafter ties primarily resist outward thrust by connecting opposing rafters, ideal for shorter spans and preventing wall spreading. King posts support longer spans by transferring roof loads directly to the building's foundation, providing enhanced vertical support and stability for complex roof structures.

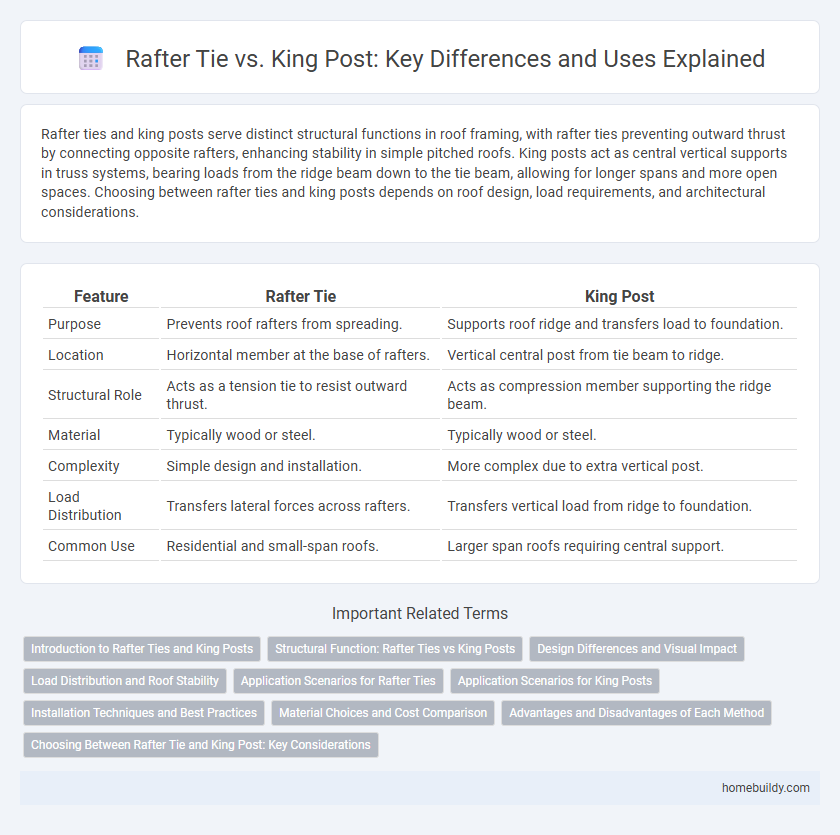

Rafter tie vs King post Infographic
