homebuildy.com Rafter ties and trusses both provide structural support to roof systems by preventing outward spread of rafters, but they differ significantly in design and application. A rafter tie is a horizontal member that connects two opposing rafters, often used in simple roof framing to resist wall spread, while a truss is a pre-fabricated, triangular framework combining rafters, ties, and vertical or diagonal members for enhanced load distribution and strength. Trusses allow for longer spans and more complex roof designs, making them a preferred choice in modern construction, whereas rafter ties suit smaller or traditional building projects requiring straightforward reinforcement.
Table of Comparison
| Feature | Rafter Tie | Truss |
|---|---|---|
| Definition | Horizontal beam connecting rafters to prevent outward spread. | Pre-fabricated triangular framework supporting roof structure. |
| Primary Use | Supports rafters in traditional roof framing. | Provides complete roof support with built-in load distribution. |
| Load Distribution | Resists outward thrust on walls. | Transfers roof load evenly to walls and foundation. |
| Installation | Installed on-site during framing. | Pre-assembled off-site; quick on-site assembly. |
| Material | Typically dimensional lumber. | Engineered wood or metal connectors. |
| Cost | Generally lower initial cost. | Higher upfront cost but labor savings. |
| Span Capability | Limited by rafter length and tie strength. | Supports longer spans effectively. |
| Flexibility | More design flexibility for custom roofs. | Less flexible; requires design conformity to truss specs. |
Understanding Rafter Ties and Trusses
Rafter ties are horizontal structural members connecting opposing rafters to prevent roof spreading and maintain stability, commonly used in traditional roof framing. Trusses are pre-fabricated, triangular frameworks composed of rafters, ties, and webs engineered to distribute loads more efficiently and reduce the need for interior load-bearing walls. Understanding the differences highlights how rafter ties primarily resist outward thrust, while trusses provide comprehensive support through engineered designs for various spans and roof types.
Key Differences Between Rafter Ties and Trusses
Rafter ties are horizontal beams that connect opposing rafters to prevent them from spreading apart, essential for traditional roof framing to resist outward thrust. Trusses are factory-fabricated, engineered structural components that integrate rafters, ties, and additional support members into a single assembly designed to distribute loads efficiently. Key differences include the installation process, with rafter ties requiring onsite construction and trusses offering prefabrication benefits, as well as structural rigidity, where trusses provide greater strength and stability through triangulated designs.
Structural Roles: Rafter Tie vs Truss
Rafter ties serve as horizontal members that prevent roof rafters from spreading and maintain the structural integrity of traditional roof framing by resisting outward thrust. Trusses, in contrast, are prefabricated structural units combining multiple members, including top and bottom chords and webbing, designed to distribute loads efficiently across wider spans. While rafter ties primarily counteract rafter spread, trusses provide comprehensive load-bearing solutions with higher rigidity and optimized material use for modern construction.
Load Distribution and Support Comparison
Rafter ties are critical in connecting opposing rafters to resist outward thrust on walls, primarily supporting roof loads by preventing wall spreading. In contrast, trusses are engineered frameworks distributing loads evenly across multiple members, offering enhanced support for both roof and ceiling structures. The load distribution in trusses reduces the need for interior load-bearing walls, while rafter ties require reliance on external wall strength to counteract lateral forces.
Installation Methods: Rafter Ties vs Trusses
Rafter ties are typically installed on-site by fastening horizontal members between opposing rafters to prevent roof spread, relying on nails or screws and precise measurements during construction. Trusses come pre-engineered and prefabricated in a factory, allowing for quick installation with bolts or metal plates, significantly reducing labor time and ensuring structural accuracy. The choice between rafter ties and trusses largely depends on the scale of the project, budget, and desired installation speed.
Cost Considerations and Budget Factors
Rafter ties generally incur lower material and labor costs compared to trusses, making them a budget-friendly option for residential roofing projects with straightforward designs. Trusses, while more expensive upfront due to factory fabrication and transportation, often reduce on-site labor time and waste, potentially balancing overall expenses in larger or more complex constructions. Evaluating project scale, roof complexity, and local labor rates is essential when deciding between rafter ties and trusses based on cost considerations.
Design Flexibility and Architectural Impact
Rafter ties offer greater design flexibility compared to traditional trusses by allowing open ceiling spaces and customized roof shapes, enhancing architectural aesthetics. Unlike trusses that rely on prefabricated components and fixed geometries, rafter ties can be adjusted on-site to accommodate unique structural configurations. This adaptability makes rafter ties ideal for projects aiming to highlight exposed timberwork or create vaulted ceilings without compromising structural integrity.
Common Applications in Residential Construction
Rafter ties are commonly used in traditional residential construction to prevent rafters from spreading and to stabilize roof structures in simple gable or pitched roofs. Trusses, composed of multiple interconnected members, are manufactured off-site and preferred for their uniform strength, ease of installation, and efficiency in spanning large distances without interior supports. While rafter ties suit custom home builds with exposed framing, trusses dominate mass-produced housing due to faster assembly and cost-effectiveness.
Building Code Requirements and Compliance
Rafter ties are essential components in roof framing that prevent the outward spread of rafters, ensuring structural stability and meeting specific building code requirements such as the International Residential Code (IRC). Unlike trusses, which are factory-engineered and must comply with standardized design specifications and manufacturer guidelines, rafter ties require on-site installation that conforms to local building codes regarding size, spacing, and fastening methods. Compliance with these codes ensures that both rafter ties and trusses provide adequate load resistance, maintain roof integrity, and enhance safety in residential construction.
Choosing the Right Option: Rafter Tie or Truss
Choosing between a rafter tie and a truss depends on the structural requirements and design preferences of the building. Rafter ties are horizontal members that prevent wall spreading by tying opposite rafters together, ideal for traditional roof framing with open attic spaces. In contrast, trusses are pre-engineered, triangulated assemblies that offer greater strength, faster installation, and consistent performance, making them suitable for larger spans and modern construction projects.

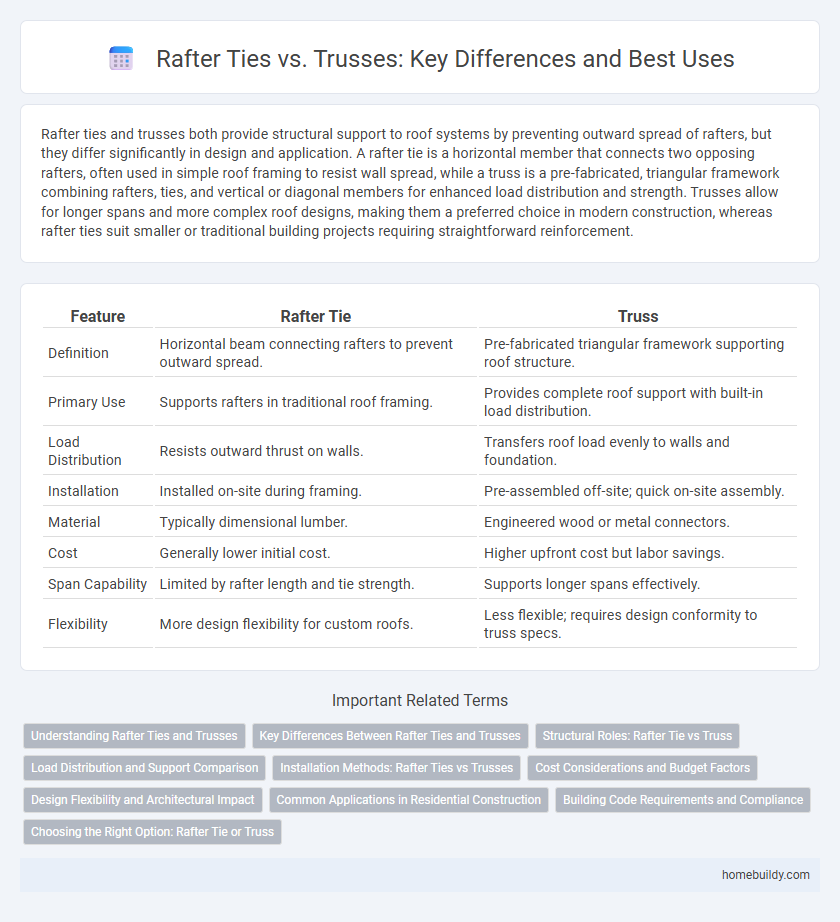

Rafter tie vs Truss Infographic
