homebuildy.com A rafter tie is installed at the lower third of the rafter to prevent the walls from spreading due to roof thrust, while a collar tie is positioned higher, near the ridge, primarily to resist rafter separation under wind uplift. Rafter ties provide structural stability by counteracting outward forces at the base of the rafters, making them essential for load distribution in roof framing. Collar ties mainly reinforce the upper portion of the roof and do not prevent wall spreading, so understanding their distinct roles is crucial for effective roof design.
Table of Comparison
| Feature | Rafter Tie | Collar Tie |
|---|---|---|
| Location | Installed at the bottom of rafters, connecting opposing rafters near the ceiling. | Placed higher up, connecting opposing rafters near the roof ridge. |
| Primary Function | Prevents outward spreading of rafters, stabilizing the roof and preventing wall bowing. | Provides additional roof stability, reducing rafter sag but does not prevent wall spreading. |
| Structural Role | Tension member resisting outward thrust of rafters. | Compression or tension member enhancing rafter rigidity. |
| Usage | Essential in traditional timber frame and truss roof systems. | Used for extra reinforcement in steep pitched roofs or long rafter spans. |
| Effect on Wall Stability | Prevents walls from bowing outward. | Does not impact wall stability significantly. |
| Position Relative to Ceiling Joists | Often doubles as ceiling joist or is located close below ceiling level. | Located above ceiling height towards roof apex. |
Introduction to Rafter Ties and Collar Ties
Rafter ties are horizontal structural elements installed between opposing rafters to prevent roof spread and maintain the integrity of the roof framing. Collar ties are positioned higher, connecting rafters near the ridge to resist uplift forces but do not prevent outward wall thrust like rafter ties. Understanding the distinct roles of rafter ties and collar ties is essential for effective roof design and structural stability.
Defining Rafter Tie vs Collar Tie
A rafter tie is a horizontal structural member installed between opposite rafters near the ceiling level, primarily designed to prevent the outward spread of roof rafters and support the roof structure. In contrast, a collar tie is positioned higher up, typically in the upper third of the roof, and serves to resist wind uplift by connecting rafters closer to the ridge. Understanding the distinct placement and load-bearing functions of rafter ties versus collar ties is essential for ensuring proper roof stability and preventing structural deformation.
Structural Purpose and Function
Rafter ties serve to prevent outward spreading of rafters by connecting the lower ends, providing essential tension to resist roof thrust and maintain structural integrity. Collar ties are positioned higher in the roof structure, primarily resisting upward wind forces and preventing rafters from sagging under load. The key structural purpose of rafter ties is to brace the roof against lateral forces at the base, while collar ties reinforce mid-span stability and reduce deflection in the rafters.
Installation Locations and Techniques
Rafter ties are installed horizontally near the ceiling level to prevent roof rafters from spreading and are typically nailed or screwed to the lower third of the rafters. Collar ties are positioned higher, usually in the upper third of the roof, and are fixed using metal straps or fasteners to resist upward forces in steep roof designs. Proper installation requires precise placement according to roof pitch and load distribution to ensure structural stability.
Key Differences Between Rafter and Collar Ties
Rafter ties are horizontal beams installed near the base of rafters to prevent outward spread of roof walls by resisting outward thrust, whereas collar ties are positioned higher up, connecting rafters in the upper third of the roof to resist uplift forces. Rafter ties primarily support roof stability by countering wall separation, while collar ties enhance roof rigidity and reduce sagging under wind loads. The placement and function distinguish rafter ties as tension members near the ceiling level, compared to collar ties acting in compression or tension near the ridge.
Building Code Requirements
Rafter ties and collar ties serve distinct structural purposes within roof framing, with building codes typically requiring rafter ties at the lower third of the roof to prevent wall spreading under load. Collar ties are placed higher in the roof structure and are not a substitute for rafter ties according to most building code requirements, as they primarily resist uplift forces rather than preventing wall spread. Compliance with local building codes mandates the installation of properly sized rafter ties, often specified by span and load tables, to ensure roof stability and structural integrity.
Common Problems and Solutions
Rafter ties prevent roof spread by connecting opposing rafters near the base, effectively countering outward thrust that can cause walls to bow or foundations to crack. Collar ties, positioned higher in the roof structure, primarily resist uplift forces but do not address the lateral spread problem, often leading to sagging rafters or compromised structural integrity. Using properly sized rafter ties in the lower third of the roof frame resolves common issues like wall deformation and enhances overall roof stability, while collar ties should be supplemented with rafter ties for comprehensive support.
Material Choices for Rafter and Collar Ties
Rafter ties are commonly constructed from robust dimensional lumber such as Douglas fir or southern yellow pine, chosen for their high strength-to-weight ratios and resistance to bending under roof loads. Collar ties typically use similar wood species but can also incorporate engineered wood products like laminated veneer lumber (LVL) for enhanced tensile strength and reduced cross-sectional dimensions. Metal connectors and galvanized steel straps are increasingly applied in both rafter and collar tie installations to improve joint stability and resist uplift forces caused by wind or seismic activity.
Best Practices for Roof Framing
A rafter tie is installed near the ceiling level to prevent the outward spreading of rafters, providing essential tension support that stabilizes the roof frame. Collar ties are placed higher up, closer to the roof ridge, primarily resisting uplift forces but offering less lateral restraint compared to rafter ties. Best practices for roof framing emphasize using rafter ties in lower sections of the rafters for structural integrity, while collar ties are supplementary elements mainly for wind resistance.
Choosing the Right Tie for Your Project
Rafter ties and collar ties serve distinct structural purposes in roof framing, with rafter ties preventing walls from spreading by connecting the lower ends of opposing rafters and collar ties adding lateral support higher up near the roof ridge. Choosing the right tie depends on your project's roof design, span, and load requirements; rafter ties are essential for resisting outward thrust in steep pitches, while collar ties enhance stability in lower-pitched roofs without replacing rafter ties. For optimal structural integrity, consult engineering guidelines and local building codes to determine whether rafter ties, collar ties, or a combination of both best suit your construction needs.

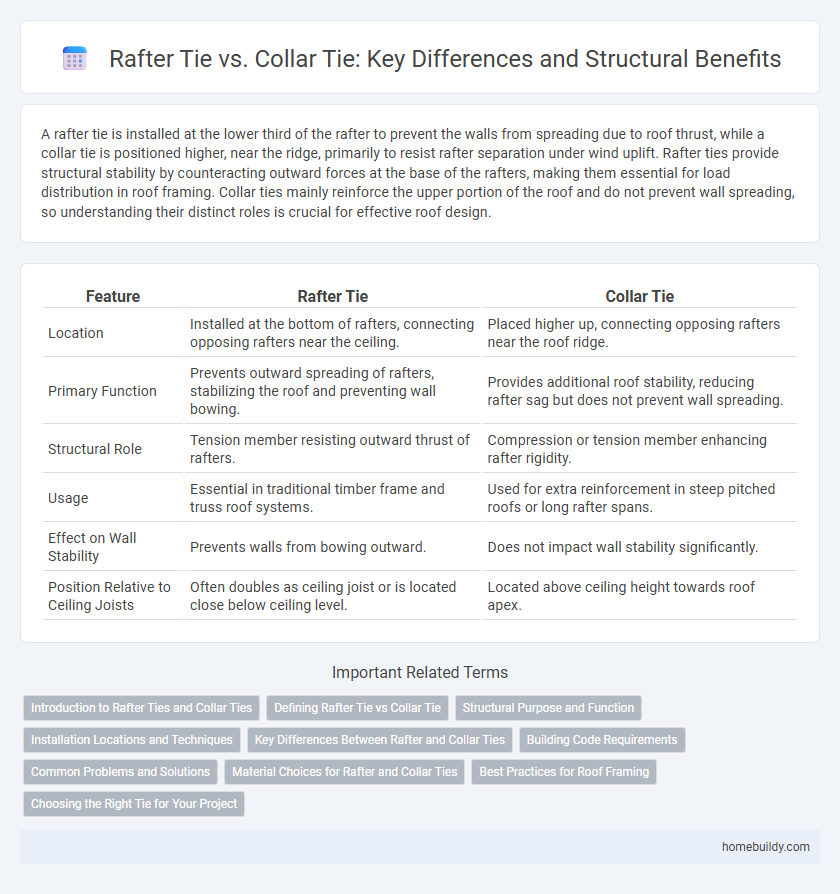

Rafter tie vs Collar tie Infographic
