homebuildy.com A rafter tie is a horizontal structural element that connects two opposing rafters, preventing the walls from spreading under roof load. Unlike a rafter, which is an inclined beam supporting the roof deck, the rafter tie resists outward thrust forces and enhances the overall stability of the roof structure. Incorporating rafter ties reduces the risk of roof sagging and improves the durability of the framing system.
Table of Comparison
| Feature | Rafter Tie | Rafter |
|---|---|---|
| Definition | Horizontal beam connecting opposing rafters to prevent roof spread. | Sloping beams supporting the roof deck and transferring load to walls. |
| Primary Function | Provides structural stability by resisting outward forces. | Supports roof weight and maintains roof shape. |
| Location | Installed horizontally near the base of rafters. | Run diagonally from ridge to wall plate. |
| Structural Role | Ties rafters to prevent wall spreading and maintain frame integrity. | Bears roof loads and transfers forces to building structure. |
| Material | Typically wood or metal, similar to rafters. | Usually wood, engineered lumber, or metal. |
| Installation | Added to reinforce existing rafters or during framing. | Installed during roof framing as main support members. |
| Load Resistance | Resists lateral spreading forces. | Resists vertical and lateral loads. |
Understanding Rafter Ties: Definition and Purpose
A rafter tie is a horizontal timber placed between opposing rafters to prevent roof sagging and maintain structural integrity by resisting outward thrust on walls. Unlike individual rafters that form the roof slope, rafter ties connect these rafters at the lower ends, ensuring stability in traditional roof framing. Understanding their key function in load distribution highlights why rafter ties are essential components in preventing ceiling collapse and wall spreading.
What Are Rafters? Structure and Role in Roofing
Rafters are structural beams that extend from the roof ridge to the eaves, forming the primary framework supporting the roof covering. These inclined members bear the roof load, transferring it down to the building's walls, ensuring stability and shape of the roof. Unlike rafter ties, which connect opposing rafters to prevent outward wall spread, rafters primarily function as vertical support elements within the roofing system.
Key Differences Between Rafter Ties and Rafters
Rafter ties are horizontal structural elements designed to prevent roof rafters from spreading and causing walls to bow outward, while rafters are the sloped beams that form the roof's framework and support its load. Rafter ties resist outward thrust by connecting opposing rafters near the base, enhancing roof stability, whereas rafters carry vertical loads from roofing materials down to the walls. Understanding the distinct roles of rafter ties and rafters is essential for proper roof framing and maintaining structural integrity.
Structural Importance: Rafter Ties vs Rafters
Rafter ties are horizontal structural members that prevent the outward spread of rafters, ensuring roof stability by resisting lateral forces. Rafters are the inclined beams that directly support the roof deck and transfer loads to the walls. While rafters bear the primary vertical loads, rafter ties provide critical tensile support to maintain the integrity of the roof framing system.
Common Materials Used for Rafter Ties and Rafters
Rafter ties are commonly made from dimensional lumber such as 2x4 or 2x6 pine or fir due to their strength and ease of installation, while rafters often utilize similar wood species but may also include engineered wood products like laminated veneer lumber (LVL) for enhanced load-bearing capacity. Metal connectors or straps can be used in rafter ties to reinforce connections and prevent structural movement, which is less common in rafters except in specialized truss systems. Both components require treated or coated materials in exterior or high-moisture environments to resist decay and maintain structural integrity.
Installation Techniques: Rafter Ties Compared to Rafters
Rafter ties are installed horizontally between opposing rafters to prevent the roof from spreading and to reinforce structural integrity, typically secured with nails or metal connectors at the ceiling joist level. Rafters are angled structural members that support the roof deck, installed from the ridge beam down to the wall plate and require precise alignment for load distribution. Unlike rafters, rafter ties emphasize tension forces and are crucial in preventing outward wall thrust, making their installation critical in roof framing stability.
Building Code Requirements: Rafter Tie vs Rafter
Rafter ties are critical structural components specified in building codes to prevent roof spread by connecting opposing rafters near the base, ensuring stability and safety in wood-framed roofs. Unlike rafters, which are the sloped beams supporting roof loads, rafter ties function primarily to resist outward thrust and maintain the roof's integrity under wind and snow loads, meeting code requirements such as those outlined in the International Residential Code (IRC). Proper installation of rafter ties according to code standards reduces the risk of wall bowing and structural failure, making compliance essential for roof framing systems.
Pros and Cons: Rafter Ties vs Rafters
Rafter ties provide essential lateral support by preventing outward spreading of rafters, enhancing roof stability and reducing the risk of structural failure, which is especially beneficial in long-span roofs. However, rafters alone offer direct vertical load-bearing capability but lack the tension resistance to prevent wall spreading, potentially causing structural issues over time without the help of rafter ties. Incorporating rafter ties improves overall roof integrity by balancing compression and tension forces, though they can complicate attic space and add to labor costs during construction.
Preventing Roof Spread: Rafter Ties in Action
Rafter ties play a crucial role in preventing roof spread by connecting opposing rafters at their lower ends, effectively resisting the outward thrust that can cause walls to bow. Unlike individual rafters, which primarily support the roof load vertically, rafter ties transfer horizontal forces and maintain structural integrity under roof pressure. This tension member is essential in traditional wood framing to ensure the roof remains stable and prevents costly repairs from compromised wall alignment.
Choosing the Right Solution: When to Use Rafter Ties or Rafters
Rafter ties provide essential lateral support by connecting opposing rafters, preventing roof spread and maintaining structural integrity in traditional stick framing. Rafters serve as the primary sloping beams supporting roof decking and transferring loads to walls or beams. Use rafter ties when the roof design requires resistance to outward wall thrust, especially in open or vaulted ceiling spaces, while rafters are fundamental for all roof structures to bear weight and define roof shape.

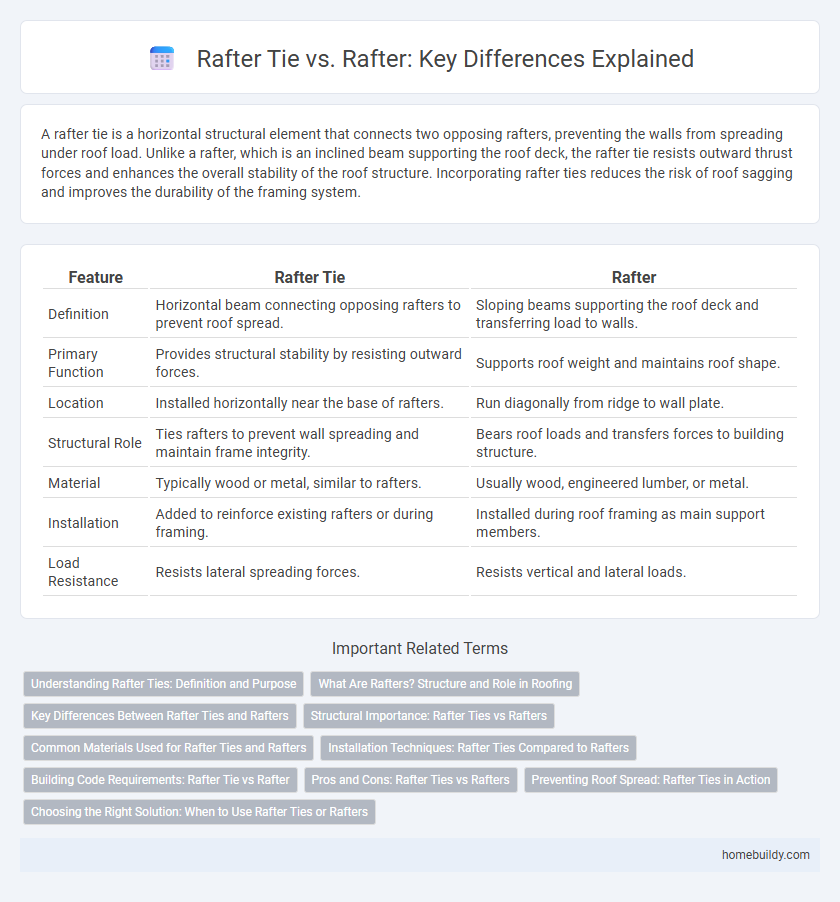

Rafter tie vs Rafter Infographic
