homebuildy.com Rafter ties provide horizontal support by connecting opposing rafters to prevent roof spread, while shear walls resist lateral forces such as wind and seismic loads by transferring them to the foundation. Shear walls offer greater structural stability for the entire building, especially in multi-story constructions, whereas rafter ties primarily reinforce roof framing. Choosing between rafter ties and shear walls depends on the specific load requirements and overall design goals of the structure.
Table of Comparison
| Feature | Rafter Tie | Shear Wall |
|---|---|---|
| Function | Prevents roof rafters from spreading; resists outward thrust | Resists lateral forces; provides stability against wind and seismic loads |
| Location | Installed horizontally between opposing rafters | Built vertically into walls along building perimeter or interior |
| Structural Role | Tension member in roof framing | Load-bearing lateral force-resisting system |
| Material | Typically wood or metal straps | Concrete, masonry, or wood sheathing with framing |
| Installation Complexity | Relatively simple and cost-effective | More complex; requires structural design and reinforcement |
| Primary Use | Roof framing stabilization | Whole building lateral stability |
| Effectiveness Against Lateral Loads | Limited to roof structure | Comprehensive resistance to lateral loads |
Introduction to Rafter Ties and Shear Walls
Rafter ties are horizontal structural elements that connect opposite rafters to prevent roof spread and maintain the integrity of the roof frame under load. Shear walls are vertical elements designed to resist lateral forces, providing essential stability to a building by preventing sway and racking during events like earthquakes or high winds. Understanding the distinct roles of rafter ties and shear walls helps optimize structural design for both roof support and overall building resistance.
Structural Functions: Rafter Tie vs Shear Wall
Rafter ties provide lateral support by preventing roof rafters from spreading and maintaining the structural integrity of the roof frame, effectively resisting tensile forces along the roof span. Shear walls, constructed as rigid vertical assemblies, primarily resist lateral loads such as wind and seismic forces by transferring these stresses directly to the foundation, ensuring overall building stability. While rafter ties focus on stabilizing roof geometry and preventing outward thrust, shear walls serve as critical components for lateral load resistance and controlling building sway.
Key Differences in Design
Rafter ties are horizontal structural members installed between rafters to prevent outward roof thrust, primarily resisting tension forces within the roof framing. Shear walls are vertical elements designed to resist lateral loads from wind or seismic activity, providing stiffness and strength to prevent building sway or collapse. The key design difference is that rafter ties control roof spread by tension, whereas shear walls stabilize the entire structure by bearing lateral shear and load transfer.
Load Distribution: Comparative Analysis
Rafter ties primarily resist outward thrust forces by connecting opposing rafters, effectively reducing tension loads on walls and ensuring roof stability under gravity and uplift forces. Shear walls distribute lateral loads horizontally across the structure, providing resistance against wind and seismic forces by transferring these loads down to the foundation. Compared to shear walls, rafter ties have limited impact on lateral load distribution but are crucial for maintaining roof geometry and preventing rafter spread.
Applications in Residential Construction
Rafter ties are essential in residential construction for preventing roof spread by connecting opposing rafters and maintaining structural integrity within the attic space. Shear walls, on the other hand, provide lateral stability by resisting wind and seismic forces, making them critical for overall building rigidity. While rafter ties primarily address roof framing concerns, shear walls ensure the house resists horizontal loads, often complementing each other in a comprehensive residential structural system.
Building Code Requirements
Rafter ties are structural components used to prevent outward spreading of roof rafters, commonly governed by the International Residential Code (IRC) under section R802.3 to resist uplift and lateral forces. Shear walls, specified under sections R602 and R703, provide lateral load resistance against wind and seismic forces by transferring loads to the foundation, adhering to more rigorous building code requirements for lateral stability in high-wind or seismic zones. Compliance with local building codes typically mandates the use of shear walls in areas with significant lateral loads, while rafter ties suffice for controlling roof spreading in standard residential construction.
Pros and Cons of Rafter Ties
Rafter ties provide a cost-effective solution to prevent roof spread by connecting opposing rafters and improving structural stability without requiring extensive wall alterations. They allow for open interior spaces without the added bulk of shear walls, but their effectiveness is limited to resisting horizontal thrust rather than lateral loads, making them insufficient in high wind or seismic zones where shear walls excel. However, rafter ties require precise installation and maintenance to ensure their tension capacity, while shear walls offer a more robust, versatile defense against lateral forces.
Benefits and Limitations of Shear Walls
Shear walls provide significant lateral stability to structures by resisting horizontal forces such as wind and seismic loads, thereby reducing the risk of structural deformation and collapse. They improve building stiffness and load distribution but can be costly to construct and may limit architectural flexibility due to their rigid placement within the framework. Unlike rafter ties, shear walls primarily address horizontal load resistance rather than preventing roof spread, making them complementary but not a direct substitute in roof framing systems.
Cost Considerations and Material Choices
Rafter ties typically require less expensive lumber and simpler fasteners, making them a cost-effective solution for resisting roof uplift compared to shear walls, which involve more extensive framing and wall finishes that increase labor and material expenses. Material choices for rafter ties often include standard dimensional lumber such as 2x4s or metal straps, while shear walls necessitate plywood or OSB sheathing, as well as durable framing members like 2x6 or greater studs to resist lateral forces. In budget-sensitive projects, rafter ties offer a straightforward, economical option, whereas shear walls provide enhanced lateral stability at a higher upfront investment in materials and construction time.
Selecting the Right Solution for Your Project
Choosing between rafter ties and shear walls depends on the specific structural needs of your project, such as roof design and lateral load requirements. Rafter ties are ideal for preventing rafter spread in pitched roofs, providing horizontal restraint without needing full wall construction. Shear walls offer superior resistance to lateral forces like wind and seismic loads, making them essential for stability in areas with high lateral stress.

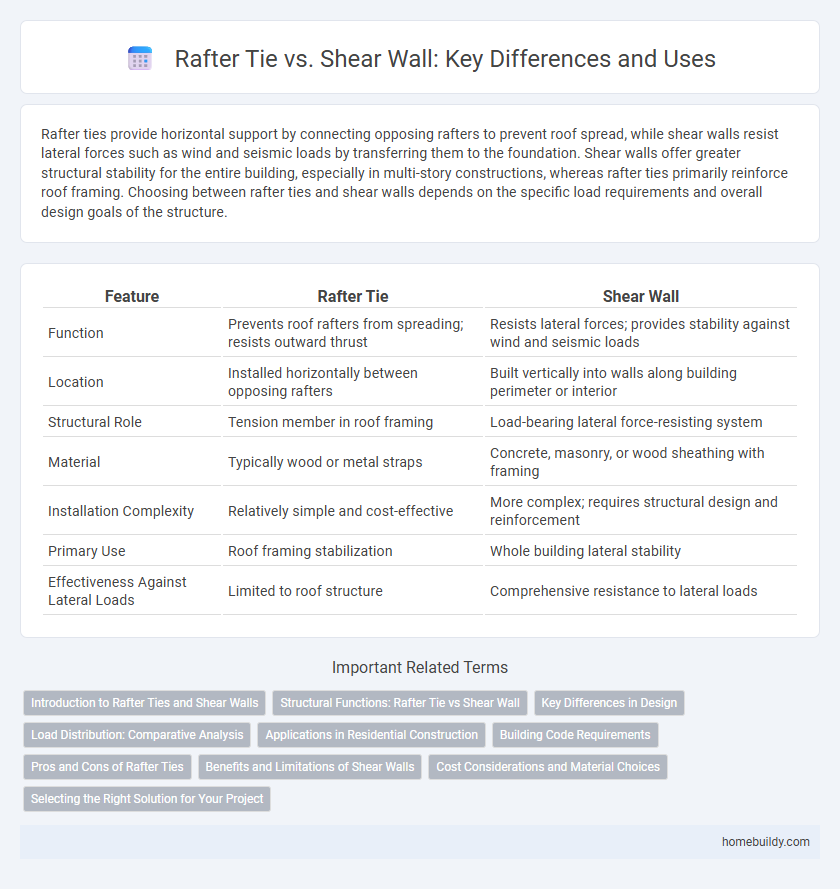

Rafter tie vs Shear wall Infographic
