homebuildy.com A rafter tie is a horizontal beam installed between rafters to prevent the roof from spreading, while a ceiling joist serves as the structural support for the ceiling below. Unlike ceiling joists, rafter ties are positioned higher in the roof structure, primarily resisting outward thrust and maintaining frame stability. Both components contribute to roof integrity, but their placement and function differ significantly in framing design.
Table of Comparison
| Feature | Rafter Tie | Ceiling Joist |
|---|---|---|
| Primary Function | Prevents roof spread by tying opposing rafters | Supports ceiling load and provides structural floor support |
| Location | Installed between rafters near the roof base | Placed horizontally below rafters, spans wall to wall |
| Structural Role | Ties rafters to resist outward thrust | Holds ceiling finish and distributes load |
| Load Bearing | Handles tensile forces to stabilize roof frame | Supports compressive loads from ceiling/attic |
| Material | Typically dimension lumber or metal strap | Dimension lumber, engineered wood, or metal |
| Installation Purpose | Structural reinforcement against rafter spreading | Ceiling surface support and floor joist function in some cases |
| Common Use | Traditional wood-frame roof trusses | Building ceilings and attic floors |
Introduction to Rafter Ties and Ceiling Joists
Rafter ties are horizontal members installed between opposing rafters to prevent the roof structure from spreading and maintain the building's stability. Ceiling joists run parallel to the rafters and support the ceiling material while providing a horizontal diaphragm that resists lateral loads. Understanding the distinct roles of rafter ties and ceiling joists is crucial for effective roof framing and structural integrity.
Structural Roles: Rafter Tie vs Ceiling Joist
Rafter ties serve as horizontal members installed between opposing rafters to resist outward thrust and prevent the roof from spreading, playing a crucial role in maintaining roof stability. Ceiling joists primarily support the ceiling load and provide a platform for the ceiling finish, while also assisting in transferring roof loads to the walls. Unlike ceiling joists, rafter ties are positioned higher in the roof structure and focus on counteracting the tensile forces that could cause wall deformation.
Key Differences Between Rafter Ties and Ceiling Joists
Rafter ties are horizontal members installed between opposing rafters to prevent roof spread and maintain structural integrity, while ceiling joists primarily support the ceiling finish and distribute loads across walls. Unlike ceiling joists, rafter ties resist outward thrust from rafters and are crucial in preventing wall deformation under roof loads. The key difference lies in rafter ties' role in tension for roof stability versus ceiling joists functioning mainly in compression and load distribution.
Load Distribution and Support Functions
Rafter ties primarily resist outward thrust from rafters, preventing roof spread by tying opposing rafters together near the roof's base, which directly supports the roof structure's load. Ceiling joists primarily support ceiling finishes and distribute live loads from occupants or fixtures, serving as horizontal structural members spanning between walls. Unlike ceiling joists, rafter ties carry tension forces to stabilize the roof framing and prevent wall deformation under roof load.
Installation Locations and Methods
Rafter ties are installed high in the roof structure, typically connecting opposing rafters near the midpoint of the roof span to prevent outward wall thrust and maintain roof stability. Ceiling joists run horizontally at the ceiling level, supporting the ceiling finish and often bearing floor loads from above, and they are secured directly to the top plates of the walls. Installation of rafter ties requires precise nailing or metal connectors at rafter intersections, while ceiling joists are usually laid flat and fastened with joist hangers or toenailing methods to the wall framing.
Impact on Roof Stability and Prevention of Spreading
Rafter ties provide critical horizontal support between opposing rafters, preventing roof spreading and maintaining structural integrity under load. Unlike ceiling joists, which primarily support the ceiling material, rafter ties directly counteract outward thrust forces, minimizing lateral movement and potential wall deformation. Their strategic placement ensures the roof remains stable, especially in high wind or snow load conditions, enhancing overall building durability.
Common Materials and Sizing Guidelines
Rafter ties are typically made from dimensional lumber such as 2x4 or 2x6, commonly pine or Douglas fir, chosen for strength and cost-effectiveness, while ceiling joists often use similar materials but can vary more in size depending on span requirements. Rafter tie sizing usually follows structural codes to resist roof rafter thrust, commonly matching the rafter size or slightly smaller, whereas ceiling joists sizing depends heavily on load-bearing needs and spacing, often spanning wider distances with larger or engineered lumber. Both elements require adherence to local building codes and standards like the International Residential Code (IRC) for proper dimensioning and material selection to ensure structural integrity.
Building Code Requirements and Standards
Rafter ties are critical structural members designed to resist outward thrust and prevent roof spread, meeting specific building code requirements such as those in the International Residential Code (IRC), which mandates their placement based on roof pitch and span. Ceiling joists primarily support ceiling loads and floors above, and while they may act as rafter ties in some cases, building codes require separate rafter ties for roofs with steep pitches or long spans to ensure lateral stability. Compliance with standards like ASTM and local codes ensures rafter ties are correctly sized, anchored, and spaced for the intended load conditions, differentiating their role from its primary function in ceiling joists.
Choosing Between Rafter Ties and Ceiling Joists
Rafter ties and ceiling joists both support roof structures but serve different purposes; rafter ties prevent outward spreading of rafters while ceiling joists provide support for ceilings and floors below. Choosing between rafter ties and ceiling joists depends on structural needs, with rafter ties often preferred for stabilizing roof rafters in open ceilings and ceiling joists used when a finished ceiling or attic space is required. Structural load, building design, and local building codes also influence the decision to ensure safety and compliance.
Cost Considerations and Practical Applications
Rafter ties generally cost less than ceiling joists due to their smaller size and simpler installation, making them a budget-friendly solution for preventing roof sagging. Ceiling joists are more expensive but offer dual functionality as they support both the roof structure and the ceiling, making them practical for finished attic spaces. For open attic designs or where cost efficiency is prioritized, rafter ties provide adequate structural support, whereas ceiling joists are preferred for creating habitable rooms with ceiling attachment.

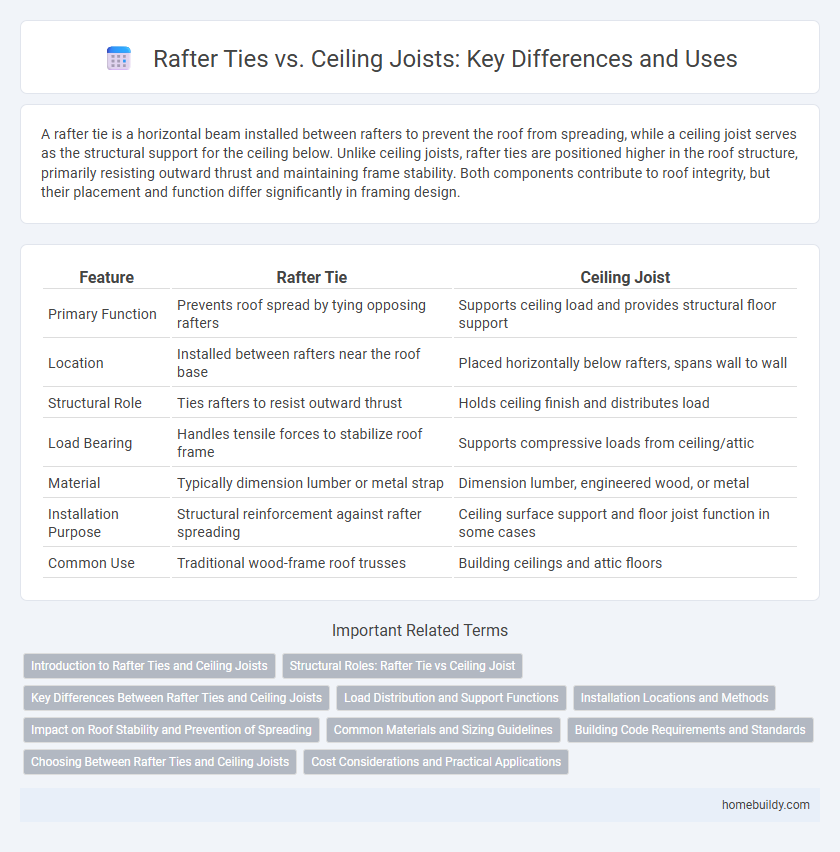

Rafter tie vs Ceiling joist Infographic
