homebuildy.com Rafter ties are horizontal members installed between opposing rafters to prevent outward wall thrust and maintain roof stability, primarily resisting tension forces. Lateral bracing, on the other hand, provides diagonal support to prevent rafter rotation and lateral displacement under load, enhancing overall structural rigidity. Choosing between rafter ties and lateral bracing depends on specific roof design requirements and load considerations, as each addresses different structural challenges.
Table of Comparison
| Feature | Rafter Tie | Lateral Bracing |
|---|---|---|
| Function | Prevents roof rafter spread by tying rafters at the base. | Stabilizes rafters against sideways movement and twisting. |
| Location | Installed horizontally between opposing rafters near the ceiling. | Installed diagonally or horizontally along rafters, typically in the upper section. |
| Structural Role | Resists outward thrust, acting as tension ties. | Resists lateral forces and maintains rafter alignment. |
| Material | Usually dimensional lumber or metal straps. | Dimensional lumber, metal straps, or engineered products. |
| Common Usage | Used in traditional wood-framed roof structures. | Used to supplement stability in long or heavily loaded rafters. |
| Building Code Reference | Required by most building codes for rafter span limits. | Recommended for rafter stability per structural standards. |
Understanding Rafter Ties and Lateral Bracing
Rafter ties are horizontal structural members installed between opposing rafters to prevent the roof from spreading and maintain the integrity of the building's frame under load. Lateral bracing, on the other hand, provides diagonal support that resists sideways forces and stabilizes the roof structure against wind and seismic activity. Understanding the distinct roles of rafter ties and lateral bracing is essential for designing a roof system that ensures both vertical load support and lateral stability.
Key Functions: Rafter Tie vs Lateral Bracing
Rafter ties primarily function to prevent the outward spread of rafters, stabilizing roof framing by resisting horizontal thrust and maintaining structural integrity. Lateral bracing, on the other hand, enhances the rigidity of rafters by reducing bending and twisting forces, thereby minimizing deflection under load. Together, these components ensure a balanced distribution of stresses, contributing to the overall durability and safety of roof structures.
Structural Roles in Roof Framing
Rafter ties serve as horizontal members that connect opposing rafters, preventing roof spread and maintaining the structural integrity of the roof framing by resisting outward thrust. Lateral bracing, positioned along the length of the rafters, stabilizes the roof structure against side-to-side movement and wind shear, enhancing overall rigidity. Together, rafter ties and lateral bracing ensure a durable and stable roof system by addressing both horizontal spreading and lateral displacement forces.
How Rafter Ties Prevent Roof Spread
Rafter ties are horizontal members installed between opposing rafters near the ceiling level, effectively resisting outward thrust and preventing roof spread by maintaining structural integrity. Unlike lateral bracing, which stabilizes rafters against side-to-side movement, rafter ties directly counteract the forces that drive walls apart under roof load. This critical function ensures the roof remains securely anchored, preserving both the longevity and safety of the building framework.
Lateral Bracing and Its Importance in Stability
Lateral bracing plays a crucial role in enhancing the structural stability of roofs by preventing rafter rotation and lateral displacement under load. Unlike rafter ties that primarily resist outward thrust at the base of rafters, lateral bracing secures the rafters along their length, distributing forces evenly and reducing the risk of buckling or warping. Proper installation of lateral bracing ensures the overall integrity of the roof framework, particularly in areas subject to high wind or snow loads.
Installation Methods: Rafter Ties vs Lateral Bracing
Rafter ties are installed by nailing or screwing horizontal members between opposing rafters to prevent roof spread, typically positioned near the ceiling level. Lateral bracing involves placing diagonal or horizontal braces along the rafters or purlins to resist sideways displacement and increase roof stability. The installation of rafter ties is generally simpler and quicker compared to lateral bracing, which requires precise alignment and attachment to structural components for effective load distribution.
Building Code Requirements and Standards
Rafter ties are essential structural elements governed by building codes such as the International Residential Code (IRC), which requires them to prevent roof rafter spread and maintain framing stability. In contrast, lateral bracing addresses roof lateral loads and wind uplift, with standards like ASCE 7 specifying design criteria and installation practices. Both rafter ties and lateral bracing must comply with relevant code requirements to ensure roof structural integrity and safety.
Common Mistakes in Roof Reinforcement
Rafter ties are often mistaken for lateral bracing, but they serve distinct structural purposes in roof reinforcement; rafter ties primarily prevent rafters from spreading by connecting opposite rafters, while lateral bracing stabilizes the rafters against sideways movement. A common mistake is relying solely on rafter ties to resist lateral forces, which can lead to roof sagging or failure under wind or seismic loads. Proper roof reinforcement requires a combination of correctly installed rafter ties and lateral bracing to ensure comprehensive stability and load distribution.
Best Applications for Each System
Rafter ties are best applied in roof framing to prevent outward thrust of rafters, providing essential tension reinforcement in pitched roofs to maintain structural integrity. Lateral bracing is ideal for stabilizing rafters against sideways buckling and wind loads, especially in long-span or open-web truss systems where rafter deformation risks are higher. Selecting between rafter ties and lateral bracing depends on roof design and load conditions; rafter ties control horizontal spread, while lateral bracing enhances overall lateral stability.
Choosing the Right Solution for Your Roof Structure
Rafter ties provide crucial tension support by connecting opposing rafters to prevent roof spread, making them ideal for simple pitched roofs where lateral forces are minimal. Lateral bracing offers stability against sideways forces and wind loads by reinforcing the rafters laterally, suitable for complex or wide-span structures. Choosing between rafter ties and lateral bracing depends on roof design, load requirements, and structural span to ensure optimal durability and safety.

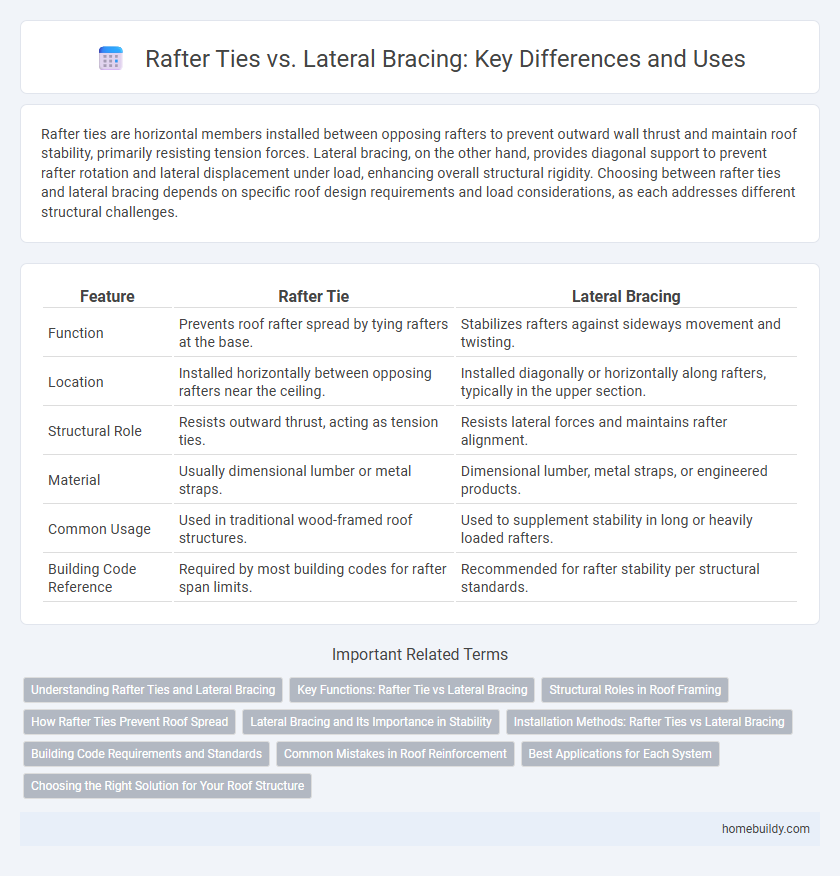

Rafter tie vs Lateral bracing Infographic
