homebuildy.com Conduit clamps provide a more secure hold by firmly fastening conduit to surfaces, reducing movement and preventing damage from vibrations or external forces. Conduit straps offer a simpler, cost-effective method for supporting conduit with easy installation but may allow slight conduit movement. Choosing between conduit clamps and conduit straps depends on the required stability, environmental conditions, and budget constraints.
Table of Comparison
| Feature | Conduit Clamps | Conduit Straps |
|---|---|---|
| Design | U-shaped, locks conduit securely | Flat or rounded band, holds conduit loosely |
| Use Case | Ideal for rigid and EMT conduit applications | Commonly used for PVC and flexible conduit |
| Installation | Requires fastening with screw or bolt | Fastened with one or two screws |
| Support | Provides strong, stable conduit support | Offers minimal conduit restraint |
| Cost | Generally higher price due to material and design | More economical, lighter material |
| Common Materials | Steel, zinc-plated steel | Steel, aluminum, plastic |
Understanding Conduit Clamps and Conduit Straps
Conduit clamps secure electrical conduits by providing a firm grip around the pipe, ensuring minimal movement and protecting wiring integrity in various installations. Conduit straps, typically simpler and flatter, attach conduits to surfaces with screws, offering basic support and alignment without fully encircling the conduit. Understanding the differences improves selection for specific electrical setups, balancing stability requirements with ease of installation.
Key Differences Between Conduit Clamps and Straps
Conduit clamps securely fasten electrical conduits using a screw-tightening mechanism that provides firm support and minimizes movement, making them ideal for heavy-duty applications. Conduit straps, typically U-shaped metal bands, offer a simpler, more cost-effective means of holding conduits in place but allow slight conduit movement and are better suited for lighter installations. The key differences lie in their design, level of support, and suitable usage environments, with clamps offering enhanced durability and straps providing greater installation flexibility.
Applications of Conduit Clamps in Electrical Installations
Conduit clamps are essential for securely fastening electrical conduit to walls or other structures, providing strong support in both residential and commercial installations. They are commonly used in applications requiring easy conduit removal or repositioning, such as temporary setups or systems subject to regular maintenance. Their design allows for firm grip and vibration resistance, making them ideal for overhead or exposed conduit runs where stability and durability are critical.
Uses of Conduit Straps for Securing Conduit
Conduit straps are primarily used for securing electrical conduits to surfaces such as walls, ceilings, or structural supports, providing stability and preventing movement. They are ideal for applications requiring quick installation and are commonly used with EMT, rigid, or flexible conduit types in residential and commercial wiring projects. Conduit straps offer a secure grip, helping to maintain the integrity of the conduit runs while protecting wiring from mechanical damage.
Material Options: Clamps vs Straps
Conduit clamps typically feature metal materials like galvanized steel or stainless steel, providing superior durability and corrosion resistance for heavy-duty installations. Conduit straps often come in both metal and plastic variants, offering flexibility and ease of installation for lighter applications or environments requiring electrical insulation. Selecting the appropriate material depends on the conduit type, environmental conditions, and load requirements, with clamps favoring robust metal options and straps offering varied choices including non-metallic materials.
Installation Methods: Clamp vs Strap Approaches
Conduit clamps secure electrical conduits by tightening around the conduit body, providing a strong grip ideal for vertical or overhead installations, and often require screws or bolts for attachment. Conduit straps offer a simpler installation by fastening the conduit directly to a surface with one or two screws, allowing quicker placement but generally providing less firm support compared to clamps. The choice between clamps and straps influences installation speed, stability, and suitability for varying conduit sizes and mounting conditions.
Load-Bearing Capacity: Clamps Compared to Straps
Conduit clamps typically offer higher load-bearing capacity than conduit straps due to their secure, enclosed design that firmly holds electrical conduits in place, reducing movement and stress on connections. Straps, often made of metal or plastic bands, provide more flexibility but generally have lower tensile strength and are better suited for lighter loads or supporting conduit runs with minimal mechanical strain. For heavy-duty or industrial applications, clamps are preferred to ensure safety and structural integrity in electrical installations.
Cost Considerations: Clamps vs Straps
Conduit clamps typically cost more than conduit straps due to their more complex design and materials used for secure fastening. Conduit straps offer a budget-friendly option with simpler installation but may require more frequent maintenance or replacement in heavy-duty applications. When budgeting for electrical conduit installations, selecting conduit straps can reduce upfront costs, while clamps may provide longer-term durability that justifies the higher initial expense.
NEC Code Compliance for Clamps and Straps
Conduit clamps and conduit straps both secure electrical conduit but differ significantly in NEC code compliance requirements. NEC 300.18 mandates that conduit supports must be listed and installed per manufacturer instructions, with clamps offering more secure and code-compliant grounding continuity compared to straps, which primarily provide mechanical support. Inspectors often prefer clamps in critical installations due to their stronger grip and ability to maintain electrical continuity, ensuring adherence to NEC grounding and bonding standards.
Choosing the Right Fastener: Clamp or Strap?
Choosing the right fastener for electrical conduit installation depends on load requirements and conduit type. Conduit clamps provide secure, adjustable support for heavier or rigid conduits, offering a tighter grip and reduced movement. In contrast, conduit straps are simpler, ideal for lightweight or flexible conduits, ensuring quick installation and maintaining alignment without excessive force.

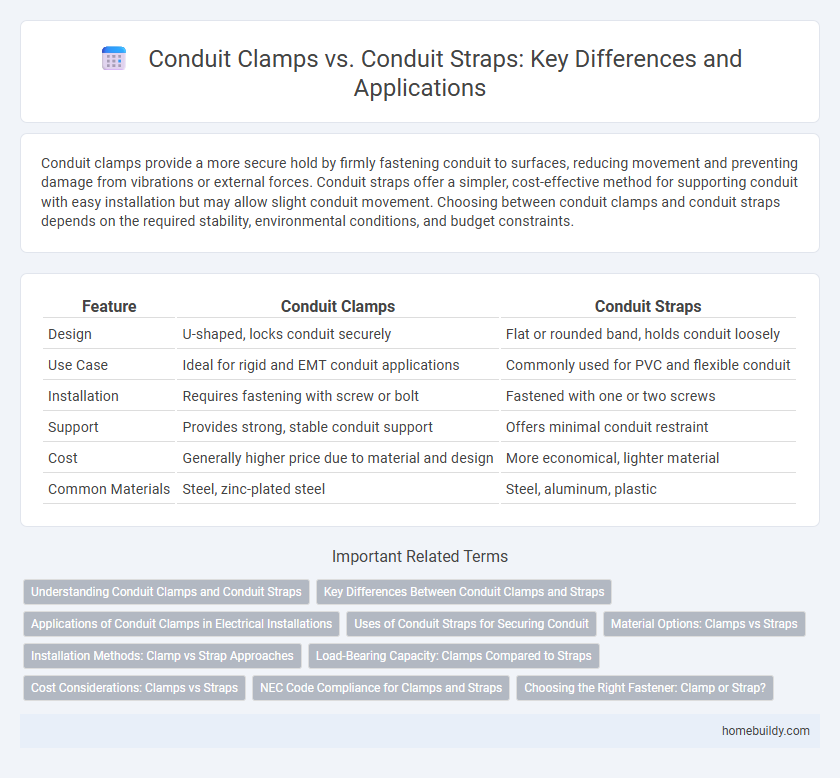

Conduit clamps vs Conduit straps Infographic
