homebuildy.com A wall plate is a horizontal timber fixed at the top of a wall to provide support for roof loads and distribute weight evenly along the wall structure. A ring beam is a reinforced concrete beam that encircles a building's perimeter to tie walls together, resist lateral forces, and enhance structural stability, especially in seismic zones. While wall plates primarily serve as load distributors in timber framing, ring beams are integral for reinforcing masonry or concrete structures against horizontal stresses.
Table of Comparison
| Feature | Wall Plate | Ring Beam |
|---|---|---|
| Definition | A horizontal timber or metal beam fixed on top of walls to support roof structures. | A reinforced concrete beam encircling a building's perimeter for structural stability. |
| Primary Function | Supports roof trusses and evenly distributes roof loads to walls. | Provides lateral support and ties walls together to resist seismic and wind forces. |
| Material | Typically timber or metal. | Reinforced concrete with steel bars. |
| Location | Placed directly atop masonry or framed walls. | Cast around the top of walls, usually embedded within masonry. |
| Structural Role | Transfers roof loads to walls. | Acts as a tie beam enhancing wall rigidity and preventing displacement. |
| Common Use | Residential and timber-framed roof constructions. | Seismic regions and multi-storey buildings for enhanced stability. |
Introduction to Wall Plates and Ring Beams
Wall plates are horizontal timber or steel elements fixed at the top of a wall to distribute loads from the roof or upper floors evenly. Ring beams are reinforced concrete beams encircling the structure, providing continuous lateral support and enhancing seismic resistance. Both components play crucial roles in structural stability, with wall plates primarily supporting vertical loads and ring beams ensuring horizontal rigidity.
Definition and Function of Wall Plates
A wall plate is a horizontal structural element placed at the top of a wall to support roof trusses or rafters, distributing loads evenly across the wall. Unlike a ring beam, which is a continuous reinforced concrete beam encircling a building for seismic resistance and load distribution, wall plates are typically made from timber or steel. Their primary function is to provide a stable anchor point for roof frameworks and ensure proper alignment and load transfer from the roof to the walls.
Definition and Function of Ring Beams
A ring beam is a continuous horizontal structural element typically made of reinforced concrete that ties walls together to distribute loads and resist lateral forces like wind and seismic activity. Unlike a wall plate, which is a timber or metal component placed atop walls to support roof structures and transfer loads vertically, the ring beam primarily functions to enhance the overall rigidity and stability of a building by acting as a load-bearing and tying mechanism around the perimeter. This structural approach ensures that individual wall panels work as a unified system, reducing the risk of cracking and collapse.
Structural Roles: Wall Plate vs Ring Beam
Wall plates serve as a critical interface between the roof structure and the vertical walls, distributing roof loads evenly and providing stability for roof framing components. Ring beams act as horizontal reinforced concrete elements that encircle a building, tying walls together to resist lateral forces such as wind and seismic activity. While wall plates primarily support vertical loads from the roof, ring beams enhance the overall structural integrity by preventing wall deformation and improving resistance to external stresses.
Materials Used in Wall Plates and Ring Beams
Wall plates are typically made from timber, steel, or concrete, selected for their load-bearing capacity and ease of installation in framing structures. Ring beams commonly use reinforced concrete with steel rebars to provide enhanced tensile strength and distribute loads evenly around the building perimeter. Material choice in wall plates emphasizes flexibility and connection compatibility, while ring beams prioritize structural integrity and resistance to lateral forces.
Installation Processes Compared
Wall plate installation involves securely fixing a horizontal timber or metal member to the top of a wall, providing a base for roof trusses or rafters, typically using anchor bolts, screws, or nails, ensuring precise alignment and load distribution. Ring beam installation is more complex, requiring concrete casting around reinforcement bars atop walls to create a continuous structural band that enhances seismic resistance and load transfer. The wall plate process is generally faster and simpler, while ring beam installation demands curing time and specialized labor for formwork, reinforcement, and concrete pouring.
Cost Implications: Wall Plate vs Ring Beam
Wall plates generally offer a lower initial cost compared to ring beams due to simpler design and installation requirements. Ring beams involve more materials and labor, increasing overall expenses but providing enhanced structural integrity in seismic or heavy-load areas. Choosing between wall plates and ring beams depends on budget constraints and specific building code requirements for safety and durability.
Applications in Building Construction
Wall plates serve as critical horizontal timber members that distribute loads from roof trusses or rafters evenly across the wall studs in framed construction. In contrast, ring beams are reinforced concrete or masonry elements that encircle a building's perimeter to resist lateral forces, providing seismic and wind load stability. Wall plates are primarily used in timber frame buildings to anchor roof structures, while ring beams are essential in masonry or reinforced concrete buildings for structural integrity and load distribution.
Advantages and Disadvantages of Each
Wall plates provide a stable base for framing and distribute loads evenly across the wall, making them ideal for supporting roof structures and upper floors, but they can be susceptible to moisture damage if not properly treated. Ring beams enhance structural integrity by tying the tops of walls together, increasing resistance to seismic forces and preventing wall displacement, though their construction can add complexity and cost to a project. Choosing between wall plates and ring beams depends on factors such as load requirements, environmental conditions, and construction budget.
Choosing Between Wall Plate and Ring Beam
Choosing between a wall plate and a ring beam depends on the structural requirements and load distribution of the building. Wall plates provide a sturdy base for roof trusses by evenly distributing loads onto walls, ideal for lightweight to medium-weight structures. Ring beams, typically reinforced concrete, offer enhanced lateral stability and strength, making them suitable for high-load or seismic-prone areas where resistance to horizontal forces is critical.

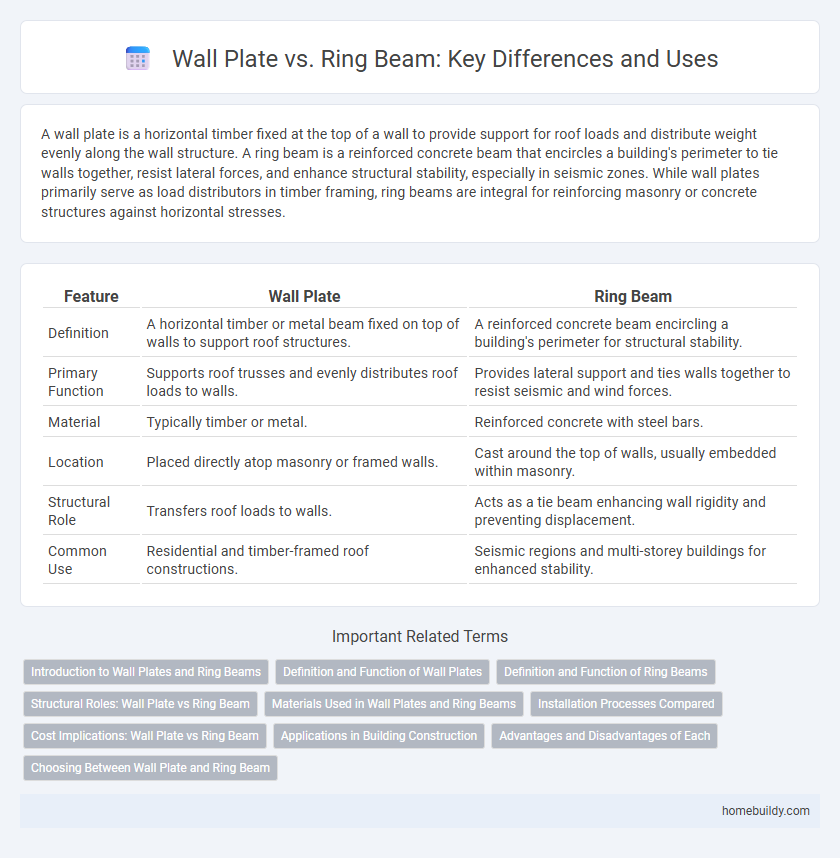

Wall plate vs Ring beam Infographic
