homebuildy.com A wall plate is a horizontal timber element fixed to the top of a wall to distribute loads from roof rafters or floor joists evenly. A beam is a structural member designed to carry and transfer loads across spans, supporting floors, roofs, or walls by resisting bending forces. Wall plates serve as a base for beams or rafters, while beams provide primary support within a building's framework.
Table of Comparison
| Feature | Wall Plate | Beam |
|---|---|---|
| Definition | A horizontal timber or metal member fixed at the top of a wall to support roof or floor structures. | A large, strong horizontal structural element that supports loads over openings or spans across spaces. |
| Primary Function | Distributes loads from roof trusses or joists evenly to the wall below. | Supports weight over longer spans and carries loads from floors, roofs, or walls. |
| Location | Fixed on the top of load-bearing walls. | Can be positioned anywhere between supports, often spanning openings or large distances. |
| Material | Typically timber, metal, or engineered wood. | Made from timber, steel, or reinforced concrete. |
| Load Type | Transfers vertical loads from roof or floor to walls. | Handles vertical and sometimes lateral loads over spans. |
| Structural Role | Interface element between wall and roof/floor system. | Main load-bearing member spanning across spaces. |
| Common Uses | Support roof trusses, rafters, or floor joists. | Support floors, roofs, or act as lintels over openings. |
Introduction to Wall Plate and Beam
A wall plate is a horizontal timber fixed to the top of a wall to provide a stable base for roof trusses and joists, ensuring even load distribution. In contrast, a beam is a structural element designed to support and transfer heavy loads across open spaces, often spanning between columns or walls. While wall plates primarily serve as a connection interface in framing, beams function as the main load-bearing components in construction.
Key Differences Between Wall Plate and Beam
Wall plates primarily serve as horizontal structural members that distribute loads from walls or roof trusses evenly across supporting studs or beams, ensuring stability in framing. Beams are larger, load-bearing components designed to support substantial weight over open spans, transferring loads directly to columns or foundations. The key difference lies in their function and scale: wall plates act as load distributors within wall assemblies, while beams are primary structural elements handling major weight and spanning larger distances.
Structural Roles: Wall Plate vs Beam
Wall plates serve as horizontal structural elements that distribute loads from roof trusses or rafters evenly across the top of walls, providing a stable base for securing roofing components. Beams, in contrast, are primary load-bearing members designed to support significant vertical loads and span large distances, transferring weight from floors or roofs to columns or walls. Understanding their distinct roles is essential for the structural integrity and load management in building construction.
Material Selection for Wall Plates and Beams
Wall plates are typically made from high-quality lumber such as Douglas fir or southern yellow pine, chosen for their strength, durability, and resistance to warping, ensuring a solid foundation for wall framing. Beams, on the other hand, often utilize engineered wood products like laminated veneer lumber (LVL) or glue-laminated timber (glulam) to achieve superior load-bearing capacity and dimensional stability in structural applications. Selecting the appropriate material involves considering factors like load requirements, environmental exposure, and compatibility with adjacent construction components to optimize performance and longevity.
Load Distribution: Wall Plate Compared to Beam
Wall plates evenly distribute vertical loads from roof trusses or joists across the underlying studs, preventing localized stress points and maintaining structural stability in framed walls. Beams, typically made from solid timber, steel, or engineered wood, carry heavier loads over longer spans by transferring forces directly to posts or foundations, resulting in concentrated load paths. Compared to beams, wall plates provide a continuous load distribution along the wall length, optimizing load transfer efficiency in typical residential framing systems.
Installation Process: Wall Plate vs Beam
The installation process for a wall plate involves securely anchoring the plate to a solid wall surface, ensuring even load distribution and stability for attached structures. In contrast, installing a beam requires precise alignment and support, often including temporary bracing and the use of heavy-duty fasteners or welds to maintain structural integrity. Wall plates typically simplify installation by providing a flat, accessible mounting surface, whereas beams demand more complex positioning and support measures during installation.
Common Applications of Wall Plates and Beams
Wall plates are commonly used as structural components in residential and commercial wood framing to distribute load evenly across studs and prevent wall deformation. Beams serve as primary load-bearing elements in construction, supporting heavy weights over larger spans such as in floor joists, roofs, and bridges. Both wall plates and beams are essential for maintaining structural integrity but are applied based on load requirements and span distances.
Advantages and Disadvantages: Wall Plate vs Beam
Wall plates provide a stable base for roof trusses and distribute loads evenly along the wall, making them essential for structural integrity in wood framing. Beams offer greater load-bearing capacity and span larger distances without support, but they are heavier, more expensive, and require more complex installation. Choosing between wall plates and beams depends on the specific load requirements, architectural design, and budget considerations of the construction project.
Cost Comparison: Wall Plate and Beam
Wall plates typically cost less than beams due to their simpler manufacturing process and smaller material volume, making them a cost-effective choice for load distribution in construction. Beams require more material and labor, resulting in higher expenses, especially for steel or engineered wood beams used in large-scale projects. Evaluating the project size and structural requirements helps determine the most budget-efficient option between wall plates and beams.
Which to Choose: Wall Plate or Beam?
Choosing between a wall plate and a beam depends on the structural requirements and load distribution of a building project. Wall plates distribute loads evenly across walls, providing essential support for roof trusses and framing, while beams offer greater strength for spanning larger gaps and supporting heavier loads. Evaluating factors such as load capacity, span length, and building design ensures the optimal choice between wall plate and beam for structural integrity.

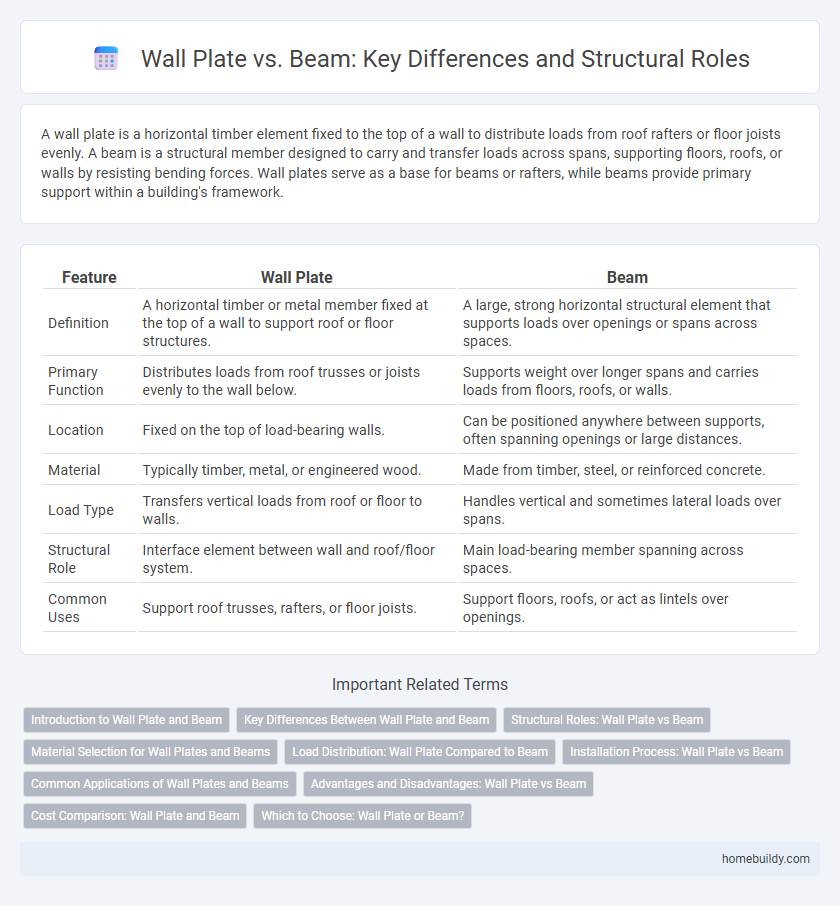

Wall plate vs Beam Infographic
