homebuildy.com A wall plate is a horizontal timber member fixed at the top or bottom of a wall, providing a stable base for studs and distributing loads evenly. Joists are horizontal structural elements that support floors or ceilings, spanning across beams or walls to carry weight. Wall plates serve as the connection point between the vertical studs and supporting structures, while joists primarily handle load-bearing and support over long spans.
Table of Comparison
| Feature | Wall Plate | Joist |
|---|---|---|
| Definition | Horizontal timber or steel beam fixed at the base or top of a wall to support framing elements. | Horizontal structural member that supports floors or ceilings, spanning between beams or walls. |
| Primary Function | Distributes loads from the roof or upper floors to studs or framing below. | Supports floor or ceiling loads and transfers weight to supporting walls or beams. |
| Typical Location | At the top or bottom edge of a wall frame (e.g., sill plate, top plate). | Between load-bearing elements, beneath floors or ceilings. |
| Material | Wood, steel, or engineered lumber. | Wood, steel, engineered wood, or concrete. |
| Load Type | Vertical loads from roof and upper structure. | Vertical loads from floors and occupants. |
| Installation | Secured to framing studs or foundation walls. | Installed perpendicular to beams or walls for optimal support. |
| Common Usage | Residential and commercial wall framing. | Floor and ceiling systems in buildings. |
Introduction to Wall Plates and Joists
Wall plates are horizontal timber or metal components fixed at the top or bottom of a wall to distribute loads evenly and provide a stable base for framing. Joists are horizontal structural elements that support floors or ceilings, spanning between walls or beams to carry weight perpendicular to their length. Understanding the distinct roles of wall plates and joists is essential for effective load transfer and structural integrity in building construction.
Key Differences Between Wall Plates and Joists
Wall plates serve as horizontal framing members that distribute loads from walls to the underlying joists, while joists are primary structural components supporting floors or ceilings. Wall plates are typically positioned at the top or bottom of wall studs, providing stability and alignment, whereas joists span across open spaces to bear vertical loads. Understanding these distinctions is crucial in residential and commercial framing to ensure proper load transfer and structural integrity.
Structural Roles: Wall Plate vs Joist
Wall plates distribute vertical loads from walls to the foundation and serve as a base for wall framing, while joists primarily support horizontal floor or ceiling loads by spanning between beams or walls. Wall plates anchor studs and provide stability against lateral forces, whereas joists maintain floor level integrity and resist bending under weight. Both components are essential in load transfer but function differently within the building's structural framework.
Material Types Used for Wall Plates and Joists
Wall plates and joists commonly use engineered wood products like laminated veneer lumber (LVL) or glue-laminated timber (glulam) for enhanced strength and stability in framing. Traditional materials for wall plates include pine or fir due to their availability and cost-effectiveness, while joists often employ dimensional lumber such as Douglas fir or Southern yellow pine for superior load-bearing capacity. Metal wall plates and joist hangers are increasingly used to provide corrosion resistance and improved connection integrity in modern construction.
Installation Techniques: Wall Plate Compared to Joist
Wall plate installation involves securing a horizontal timber directly atop the foundation or floor structure to distribute loads evenly, while joist installation requires positioning multiple parallel timber beams to support floors or ceilings. Wall plates are anchored using bolts or straps to ensure stability against vertical and lateral forces, contrasting with joists that rely on hangers or ledgers for load transfer. Both techniques demand precise alignment and fastening to maintain structural integrity, but wall plates serve as a continuous load-bearing interface, whereas joists function primarily as spaced load distributors.
Load Distribution: Wall Plate vs Joist
Wall plates evenly distribute vertical loads from the roof and upper floors across the top of wall studs, preventing localized stress and structural failure. Joists primarily carry horizontal floor or ceiling loads and transfer them to the supporting beams or walls, ensuring even load dispersion across wider spans. Understanding the complementary roles of wall plates and joists is crucial for optimized structural integrity in framing systems.
Common Applications in Construction
Wall plates serve as horizontal structural members that distribute loads from walls to joists, which are horizontal supports for floors or ceilings. Common applications in construction include using wall plates as a base for framing exterior or interior walls, while joists support floors and roofs by spanning open spaces between beams or load-bearing walls. Understanding the interaction between wall plates and joists is essential for ensuring structural stability and load transfer in residential and commercial buildings.
Pros and Cons of Wall Plates and Joists
Wall plates provide a stable base for wall framing and distribute loads evenly across joists, enhancing structural integrity. Joists offer superior support for floors and ceilings by directly bearing weight and preventing sagging but require precise spacing and alignment. Choosing between wall plates and joists depends on load requirements, construction method, and desired flexibility in design.
Maintenance and Longevity: Wall Plate vs Joist
Wall plates, typically made of treated lumber, provide crucial support for structural elements and require periodic inspection to prevent moisture damage and termite infestation, ensuring long-term durability. Joists, usually horizontal framing members, are prone to sagging and warping if not properly maintained, necessitating regular checks for cracks, rot, and load-bearing stress to extend their lifespan. Proper maintenance of both wall plates and joists, including sealing, reinforcement, and pest control, directly contributes to the overall longevity and stability of building frameworks.
Choosing the Right Component: Wall Plate or Joist
Selecting between a wall plate and a joist hinges on their structural roles: wall plates serve as horizontal framing members supporting vertical studs and distributing loads evenly, while joists provide horizontal support for ceilings and floors by spanning open spaces. Understanding load requirements and spatial orientation is critical; wall plates anchor walls to foundations or floors, whereas joists span between beams or walls to support weight above. Accurate assessment of material strength, span length, and intended load-bearing function ensures the correct choice for construction stability and integrity.

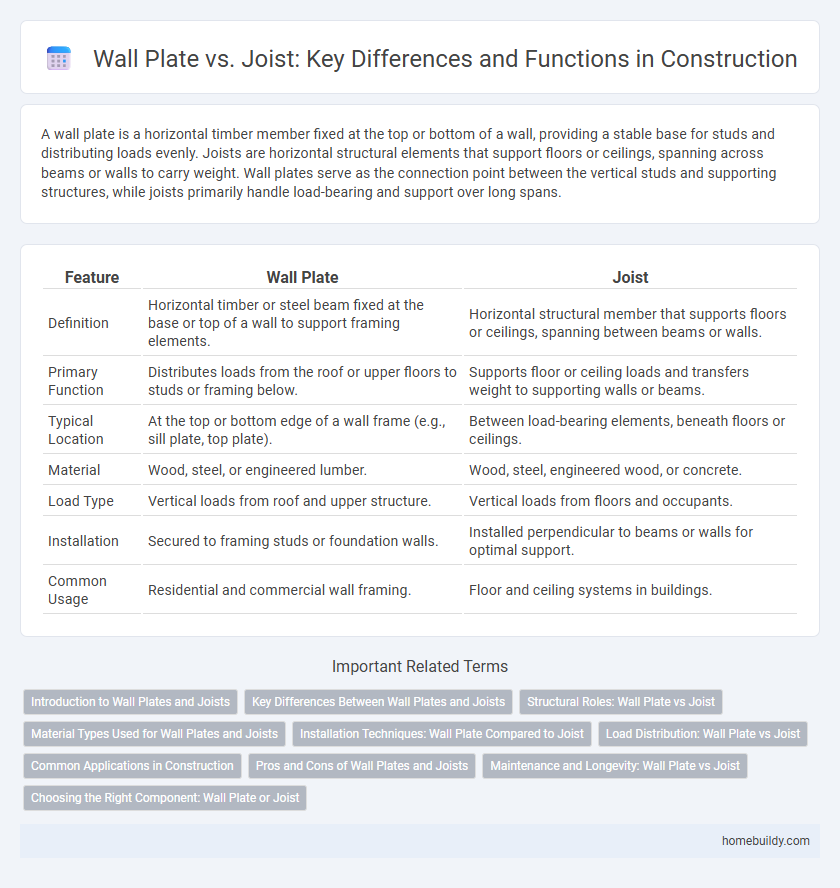

Wall plate vs Joist Infographic
