homebuildy.com A wall plate is a horizontal timber or steel element fixed at the top of a wall to distribute the load from roof trusses or beams evenly. Tie beams are horizontal structural members connecting opposite walls or columns to resist tensile forces and prevent spreading under load. While wall plates provide a bearing surface for roof structures, tie beams enhance overall building stability by counteracting lateral forces.
Table of Comparison
| Feature | Wall Plate | Tie Beam |
|---|---|---|
| Definition | Horizontal timber or metal member fixed on top of a wall to support roof structures. | Reinforced concrete horizontal beam that ties columns and walls at the foundation or upper levels. |
| Primary Function | Distributes roof load evenly over the wall and anchors rafters. | Prevents wall and column displacement by resisting tension forces. |
| Material | Wood (timber) or metal. | Reinforced concrete with steel bars. |
| Location | Top of masonry walls below roof structures. | At foundation level or between columns in upper floors. |
| Structural Role | Supports roof framing members like rafters or trusses. | Enhances structural stability by tying columns and reducing wall cracks. |
| Load Type | Bearing load from the roof. | Tensile load resisting lateral forces. |
Introduction to Wall Plates and Tie Beams
Wall plates are horizontal structural elements that distribute load evenly across walls, providing a stable base for roof trusses or floor joists, commonly made from timber or steel. Tie beams, in contrast, are horizontal beams placed at ceiling level or within floors to resist tensile forces and prevent walls from spreading apart under roof loads. Both components are essential in construction frameworks, ensuring structural integrity by managing different stress types in walls and roofs.
Definition of Wall Plate
A wall plate is a horizontal timber or steel element fixed to the top of a wall to provide a stable base for roof trusses or joists. Unlike tie beams, which connect opposite walls to resist lateral forces, wall plates primarily distribute loads from the roof structure evenly onto the supporting walls. Proper installation of wall plates is crucial for structural integrity and load transfer in building construction.
Definition of Tie Beam
A tie beam is a horizontal structural element that connects two or more columns to resist lateral forces and prevent the columns from buckling, often found in reinforced concrete and steel structures. Unlike a wall plate, which is a timber or metal component laid horizontally to support roof structures or wall framing, a tie beam provides significant structural stability by tying columns together at a specific height. Understanding the definition and role of a tie beam is crucial for distinguishing it from wall plates in construction and architectural design.
Key Functions of Wall Plates
Wall plates serve as critical structural elements in construction by distributing loads from roof trusses or rafters evenly across wall studs, preventing localized stress that can cause damage. Unlike tie beams, which primarily provide horizontal support and connect opposing walls to resist outward thrust, wall plates act as the base for securing roofing components and ensuring alignment. Their key function includes enhancing overall structural integrity and facilitating the transfer of forces safely down to the foundation.
Key Functions of Tie Beams
Tie beams primarily serve to connect and stabilize wall columns, preventing differential settlement and enhancing structural integrity. Unlike wall plates that distribute roof loads to walls, tie beams resist lateral forces and limit column buckling in reinforced concrete and masonry structures. Their key function lies in ensuring horizontal load transfer, maintaining alignment, and improving overall stability in building frameworks.
Structural Differences: Wall Plate vs Tie Beam
Wall plates are horizontal timber or steel members fixed on top of a wall to distribute loads from roof trusses and provide a fixing point for rafters. Tie beams are horizontal structural elements that connect opposing walls to resist lateral forces and prevent spreading under roof loads. Unlike wall plates, tie beams are embedded within the structure to enhance overall stability and reduce wall deformation under tension.
Material Comparison: Wall Plate vs Tie Beam
Wall plates are typically made from treated timber or laminated veneer lumber (LVL), providing a stable base for wall framing by distributing loads evenly. Tie beams usually consist of reinforced concrete or steel, designed to resist tensile forces and prevent structural deformation. The choice of material impacts durability and load-bearing capabilities, with wall plates prioritizing ease of installation and tie beams emphasizing structural reinforcement.
Installation Methods: Wall Plate vs Tie Beam
Wall plates are installed by securing them directly onto the foundation or floor framing to evenly distribute load from roof trusses or rafters, typically using anchor bolts and fasteners for stability. Tie beams are positioned horizontally between columns or walls to tie structural elements together and are embedded into masonry or concrete using rebar and grout for enhanced reinforcement. Installation of wall plates focuses on load transfer and alignment of roofing supports, while tie beams emphasize structural integrity and lateral resistance within framework systems.
Applications in Construction: Wall Plate vs Tie Beam
Wall plates primarily serve as horizontal support components distributing loads from roof trusses or rafters to vertical studs, commonly used in timber frame constructions for stabilizing walls and securing roofing elements. Tie beams function to resist tension forces by connecting opposite walls or columns, preventing structural spreading and enhancing overall stability in reinforced concrete or steel frame buildings. In construction, wall plates are essential for load transfer in wood framing, whereas tie beams are critical for maintaining structural integrity in larger, heavy-load frameworks.
Pros and Cons: Wall Plate vs Tie Beam
Wall plates distribute load evenly across the foundation, providing stable support for walls and preventing direct stress on the structural frame, while tie beams offer horizontal reinforcement that reduces wall cracking in seismic zones. Wall plates are easier to install and maintain, but may lack the tensile strength of tie beams which resist lateral forces more effectively. Tie beams require precise engineering and higher costs but enhance overall structural integrity in earthquake-prone areas.

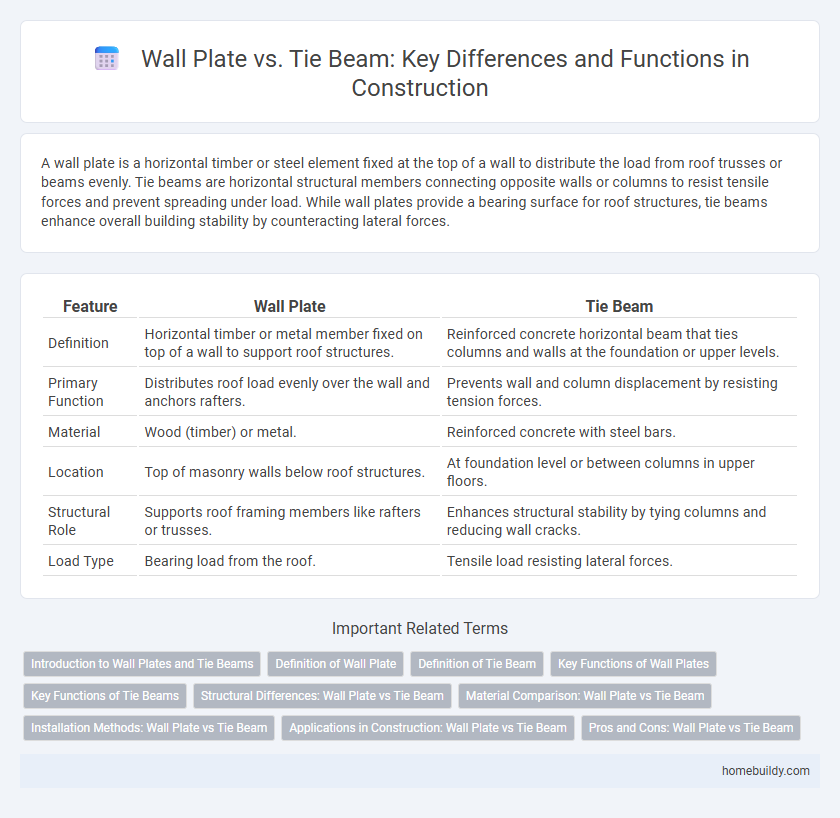

Wall plate vs Tie beam Infographic
