homebuildy.com Conduit wiring offers superior protection by enclosing electrical wires within rigid or flexible metal or plastic tubes, reducing the risk of mechanical damage and exposure to moisture. Casing and capping wiring involves mounting wires on surfaces covered by a box-like casing, providing easier access for maintenance but less robust protection against physical impacts. Choosing conduit wiring enhances safety and durability in industrial or damp environments, while casing and capping is often preferred for residential or low-risk areas due to its simplicity and cost-effectiveness.
Table of Comparison
| Feature | Conduit Wiring | Casing and Capping Wiring |
|---|---|---|
| Protection | Excellent protection against moisture, mechanical damage, and corrosion | Moderate protection; mainly against mechanical damage, less resistant to moisture |
| Installation | Complex and time-consuming; requires skilled labor and tools | Simple and quick; can be installed by less skilled workers |
| Cost | Higher initial cost due to materials and labor | Lower initial cost; economical for small-scale projects |
| Durability | Highly durable; suitable for industrial and outdoor applications | Moderately durable; mainly for residential indoor use |
| Aesthetic | Concealed wiring; neat and visually appealing | Exposed wiring; less visually appealing |
| Maintenance | More difficult due to hidden wiring inside conduit | Easy; wiring is accessible for inspection and repair |
| Flexibility | Less flexible; rigid conduit limits changes | More flexible; easier to modify and extend wiring |
Overview of Conduit Wiring and Casing and Capping Wiring
Conduit wiring involves encasing electrical cables within metal or PVC pipes, providing robust mechanical protection, enhanced safety, and neatness in installation, commonly used in commercial and industrial settings. Casing and capping wiring entails fixing wires on surfaces using wooden or PVC channels, offering a cost-effective and simple solution primarily for residential applications with minimal exposure to mechanical damage. Both methods ensure organized wiring systems, yet conduit wiring delivers superior durability and resistance to environmental factors compared to casing and capping wiring.
Key Differences Between Conduit and Casing Capping Wiring
Conduit wiring involves encasing electrical wires in metal or PVC pipes, providing superior protection against physical damage, moisture, and fire hazards, while casing and capping wiring uses wooden or plastic channels to hold wires, offering less durability and protection. Conduit systems allow for easier maintenance and wire replacement due to their modular design, whereas casing and capping wiring requires removing the cover for access, making repairs more cumbersome. Conduit wiring is ideal for industrial and outdoor applications due to its robustness, whereas casing and capping is commonly used in residential settings with minimal exposure to harsh conditions.
Types of Electrical Conduit Systems
Electrical conduit systems include metallic options like rigid metal conduit (RMC), intermediate metal conduit (IMC), and electrical metallic tubing (EMT), each offering varying levels of durability and protection. Non-metallic conduits such as PVC and flexible conduit provide corrosion resistance and ease of installation, ideal for specific environments. Casing and capping wiring, a traditional method using wooden casings with metal or plastic capping, lacks the protective benefits and standardized safety features of modern conduit systems.
Materials Used in Conduit Wiring
Conduit wiring primarily uses rigid or flexible metal conduits made from materials such as galvanized steel, aluminum, and sometimes PVC for corrosion resistance and electrical protection. These conduits provide a durable, protective pathway for electrical cables, ensuring safety and longevity in various environmental conditions. In contrast, casing and capping wiring typically utilizes wooden casing strips combined with metal or plastic capping, offering less mechanical protection compared to metal conduits.
Materials Used in Casing and Capping Wiring
Casing and capping wiring primarily utilizes PVC (Polyvinyl Chloride) materials for both the casing and the capping, offering lightweight, corrosion-resistant protection for electrical cables. Unlike metal conduits, PVC casing provides high insulation properties and ease of installation in residential and commercial wiring systems. The materials used in casing and capping wiring also include rigid plastic and sometimes fiber-reinforced polymers to enhance durability and impact resistance while maintaining cost-effectiveness.
Installation Process: Conduit vs. Casing Capping
Conduit wiring requires threading wires through durable metal or PVC tubes, offering superior protection against physical damage and moisture, but involves a more complex installation process requiring specialized tools and skills. Casing and capping wiring uses surface-mounted channels covered by removable caps, simplifying installation and maintenance but providing less robust protection compared to conduit systems. The choice impacts labor time, cost, and long-term durability, with conduit installations favored for industrial and outdoor settings and casing and capping ideal for quick, accessible indoor applications.
Safety and Durability Comparison
Conduit wiring offers enhanced safety by providing robust physical protection against mechanical damage, moisture, and chemical exposure, making it suitable for harsh environments. Casing and capping wiring, while easier to install and maintain, lacks the same level of durability and protection, increasing the risk of electrical hazards like short circuits and fire. The rigid construction of conduit ensures long-term reliability and compliance with electrical safety codes, significantly outperforming casing and capping in safeguarding electrical installations.
Cost Analysis: Conduit vs Casing Capping Wiring
Conduit wiring typically incurs higher upfront costs due to the price of metal or PVC conduits and labor-intensive installation processes, but offers superior durability and protection for electrical cables. Casing and capping wiring is a more economical alternative with lower material and installation expenses, making it suitable for temporary or less demanding environments. The long-term maintenance costs tend to be lower for conduit wiring because it prevents cable damage and reduces the need for frequent repairs or replacements.
Common Applications and Use Cases
Conduit wiring is commonly used in commercial and industrial buildings where mechanical protection and durability against environmental factors are critical. Casing and capping wiring is often preferred in residential settings due to its ease of installation and suitability for surface mounting on walls or ceilings. Both methods provide organized protection for electrical cables, but conduit wiring excels in harsh environments, while casing and capping are ideal for less demanding applications.
Pros and Cons of Each Wiring Method
Conduit wiring offers superior protection against mechanical damage, moisture, and chemical exposure, making it ideal for industrial and outdoor applications, though it involves higher installation costs and complexity. Casing and capping wiring provides a simpler, cost-effective solution suitable for indoor environments with minimal exposure to hazards but lacks the same degree of protection and durability. Choosing between conduit and casing and capping wiring depends on factors such as environmental conditions, budget constraints, and long-term maintenance requirements.

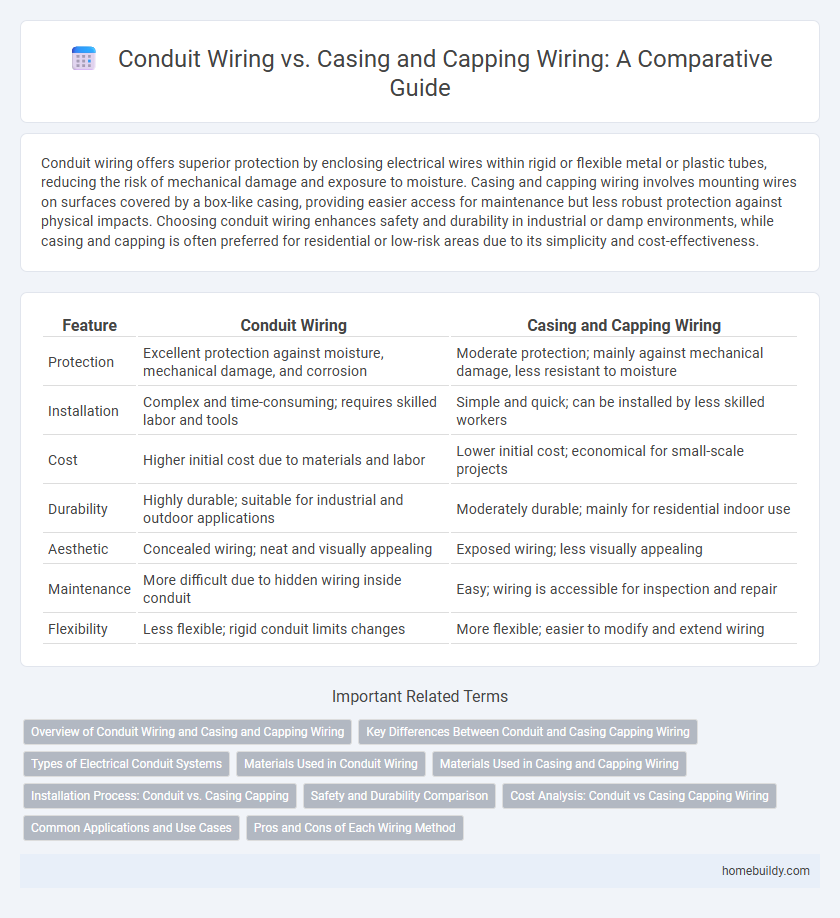

Conduit wiring vs Casing and capping wiring Infographic
