homebuildy.com Isolated footing supports a single column by distributing its load directly to the soil, making it suitable for columns spaced widely apart with relatively light loads. Combined footing serves multiple columns, transferring loads to a larger soil area and is ideal when columns are closely spaced or near property boundaries to prevent overlapping footings. Choosing between isolated and combined footing depends on soil bearing capacity, column load, and spacing to ensure structural stability and cost efficiency.
Table of Comparison
| Criteria | Isolated Footing | Combined Footing |
|---|---|---|
| Definition | Individual footing supporting a single column | One footing supporting two or more columns |
| Usage | When columns are spaced sufficiently apart | When columns are close or near property line |
| Load Distribution | Supports loads individually | Distributes load over combined area |
| Cost | Generally lower for single columns | Cost-effective for closely spaced columns |
| Complexity | Simple design and construction | More complex due to load sharing |
| Soil Conditions | Suitable for uniform soil bearing capacity | Preferred for poor or varying soil near columns |
| Structural Stability | Stable for isolated loads | Enhanced stability for combined loads |
Overview of Isolated and Combined Footings
Isolated footings support individual columns by distributing the load directly to the soil beneath, making them ideal for structures with widely spaced columns and uniform soil conditions. Combined footings, used when columns are closely spaced, transfer loads from two or more columns to a single footing, optimizing soil bearing capacity and reducing differential settlement. Selection between isolated and combined footings depends on column spacing, soil bearing capacity, and load distribution requirements in foundation design.
Key Differences Between Isolated and Combined Footings
Isolated footings support individual columns, transferring loads separately to the soil, while combined footings serve two or more columns with a single, continuous base to distribute loads more evenly. Isolated footings are typically square or rectangular and used when columns are spaced widely, whereas combined footings are rectangular or trapezoidal and designed for closely spaced columns or those near property lines. Load transfer efficiency and soil bearing capacity are critical factors influencing the choice between isolated and combined footings in structural foundation design.
When to Use Isolated Footings
Isolated footings are used when column loads are relatively small and spaced sufficiently apart, allowing each footing to independently support its column without overlapping stresses. They are ideal for soils with adequate bearing capacity and scenarios where columns do not impose heavy loads or are positioned at a distance exceeding twice the footing width. Selecting isolated footings reduces material costs and simplifies construction when site conditions and structural demands permit.
Situations Requiring Combined Footings
Combined footings are required when columns are closely spaced, causing their individual isolated footings to overlap or when soil bearing capacity is low, necessitating the distribution of loads over a larger area. Structural constraints such as property line restrictions or adjacent foundations also demand combined footings to safely support multiple columns together. These footings effectively prevent differential settlement and ensure stability in cases of uneven load distribution or weak soil conditions.
Structural Load Distribution Comparison
Isolated footing supports a single column, distributing structural loads directly to the soil beneath, which simplifies load transfer and reduces differential settlement risks. Combined footing shares the load of two or more columns, effectively balancing uneven loads and minimizing shear stresses in closely spaced columns. Structural load distribution in isolated footing is concentrated, while combined footing provides a more uniform load spread over a larger soil area, enhancing overall foundation stability.
Design Considerations for Isolated vs Combined Footings
Design considerations for isolated and combined footings primarily involve load distribution and soil bearing capacity; isolated footings support individual columns, ideal for moderate loads and uniform soil conditions, while combined footings are used when columns are closely spaced or loads are unequal, requiring a shared base to prevent differential settlement. Soil type, column load magnitude, and spacing dictate the choice, with combined footings reducing excavation costs and providing structural stability in constrained sites. Structural analysis must ensure adequate bending moments, shear forces, and footing dimensions to maintain safety and serviceability under applied loads.
Construction Methods for Both Footing Types
Isolated footing construction involves excavating individual pits beneath each column, followed by placing a reinforced concrete pad to distribute the load directly to the soil, ensuring minimal site disturbance and easier formwork handling. Combined footing construction requires larger continuous footings designed to support multiple columns, often necessitating complex excavation and reinforced concrete slabs or beams that span between columns for load redistribution. Both methods prioritize soil bearing capacity and structural stability but differ significantly in excavation scope, reinforcement detailing, and formwork complexity.
Cost Analysis: Isolated vs Combined Footings
Isolated footings generally incur lower initial costs due to simpler design and reduced excavation compared to combined footings, which require more extensive formwork and reinforcement. However, combined footings can offer cost savings in dense column layouts by minimizing footing overlaps and material use. Accurate cost analysis must factor in site conditions, load distribution, and project scale to determine the most economical foundation solution.
Common Problems and Solutions
Isolated footings often suffer from differential settlement due to uneven load distribution, leading to structural cracks; using proper soil investigation and uniform footing design can mitigate this issue. Combined footings frequently face challenges of load transfer between columns and soil pressure imbalance; ensuring precise load calculations and reinforcement detailing enhances stability. Both footing types benefit from improved drainage systems to prevent water-induced soil weakening and timely maintenance to extend service life.
Choosing the Right Footing for Your Project
Isolated footing supports a single column, ideal for structures with widely spaced columns and moderate loads, optimizing material use and cost. Combined footing connects two or more columns, suitable for closely spaced columns or where soil bearing capacity is low, distributing loads more evenly. Evaluating soil conditions, load requirements, and column spacing ensures the selection of the most efficient footing type for structural stability and budget efficiency.

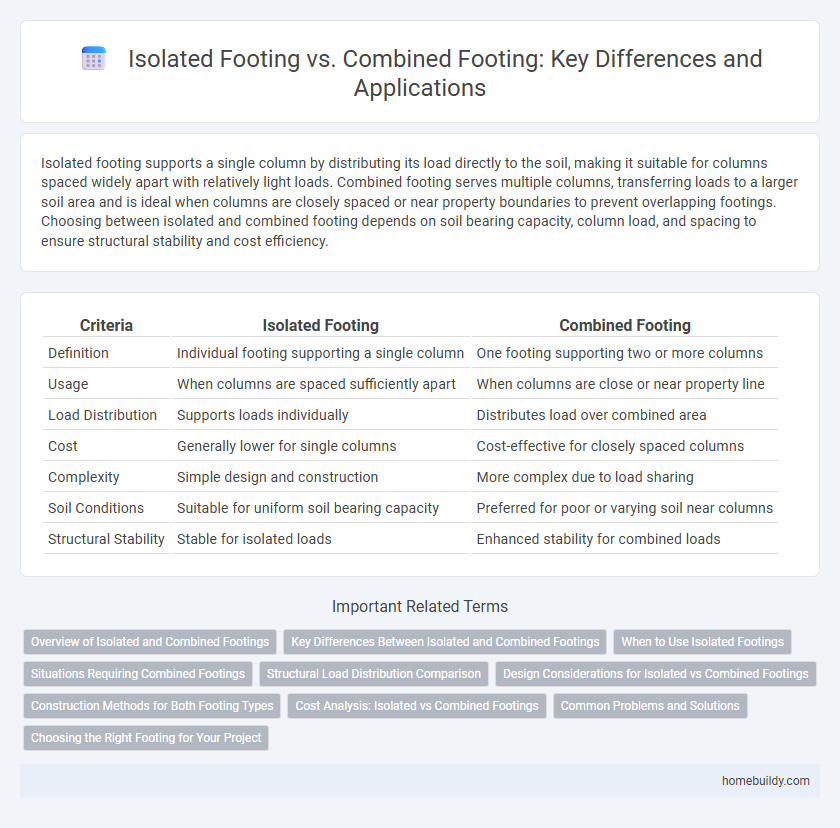

isolated footing vs combined footing Infographic
