homebuildy.com A shallow column base distributes loads over a wider area near the surface, making it suitable for soils with high bearing capacity and minimizing excavation costs. In contrast, a deep column base transfers structural loads to deeper, more stable soil strata, ensuring stability in weak or compressible soils. Choosing between shallow and deep column bases depends on soil conditions, load requirements, and construction feasibility.
Table of Comparison
| Feature | Shallow Column Base | Deep Column Base |
|---|---|---|
| Depth | Near surface, typically less than 3 meters | Extends deep below ground, beyond 3 meters |
| Load Capacity | Suitable for light to moderate loads | Designed for heavy loads and high structural demand |
| Soil Type | Effective on strong, stable soils | Used in weak or compressible soils where shallow bases fail |
| Construction Complexity | Simple, faster construction with less excavation | Complex, requires deep excavation or drilling techniques |
| Cost | Lower initial cost | Higher cost due to equipment and labor |
| Settlement | Higher risk of settlement in poor soils | Minimized settlement due to deep soil bearing strata |
| Typical Applications | Low-rise buildings, light structures | High-rise buildings, heavy industrial structures |
Introduction to Column Bases: Shallow vs Deep
Shallow column bases transfer structural loads directly to a shallow foundation, offering cost-effective support for lighter, low-rise structures. Deep column bases extend into deeper soil layers through piles or caissons, providing enhanced stability for heavy loads and tall buildings. Understanding the differences between shallow and deep column bases is crucial for optimizing foundation design based on soil conditions and load requirements.
Fundamental Differences Between Shallow and Deep Column Bases
Shallow column bases transfer loads to the soil over a wide area near the surface, relying primarily on bearing capacity and soil shear strength, while deep column bases transfer loads to deeper, more stable soil layers or rock, often using piles or caissons for support. Shallow foundations are generally used for lighter structures with relatively low loads and strong surface soils, whereas deep foundations suit heavy loads or weak, compressible surface soils requiring penetration to firmer strata. The fundamental difference lies in load transmission depth and soil interaction, influencing foundation design, construction complexity, and cost.
Applications of Shallow Column Bases
Shallow column bases are commonly used in residential buildings, low-rise commercial structures, and light industrial facilities due to their cost-effectiveness and ease of construction. These bases are ideal for soils with high bearing capacity, where loads are relatively low and uniform, enabling efficient load transfer without extensive excavation. Applications include slab-on-grade foundations and structures where minimizing settlement and simplifying foundation work are primary concerns.
Scenarios Best Suited for Deep Column Bases
Deep column bases are best suited for scenarios involving heavy structural loads or poor soil conditions requiring enhanced load distribution. They provide greater stability for tall buildings, bridges, and industrial facilities where surface soil lacks sufficient bearing capacity. Deep column bases effectively transfer loads to deeper, more stable soil layers or bedrock, minimizing settlement and increasing overall structural integrity.
Structural Performance Comparison: Shallow vs Deep Bases
Shallow column bases typically provide adequate support for light to moderate loads by distributing forces over a smaller footprint, but they may be more susceptible to settlement and reduced stability under heavy loads. Deep column bases enhance structural performance by anchoring columns into deeper, more stable soil strata, significantly improving load-bearing capacity and resistance to overturning and lateral forces. Engineering analysis often favors deep bases for high-rise buildings or structures subjected to dynamic loads due to their superior structural integrity and reduced risk of differential settlement.
Load-Bearing Capabilities of Shallow and Deep Foundations
Shallow column bases distribute loads near the surface, making them suitable for light to moderate structures on firm soil, whereas deep foundations transfer loads to deeper, more stable soil layers or rock, enabling support for heavy or tall buildings. Shallow foundations typically handle loads up to a few hundred kPa, while deep foundations, such as piles or drilled shafts, can sustain loads exceeding several thousand kPa due to enhanced soil bearing capacity and reduced settlement risks. The choice between shallow and deep column bases hinges on soil conditions, structural demands, and load magnitude for optimal load-bearing performance.
Construction Methods for Shallow and Deep Column Bases
Shallow column bases are commonly constructed using reinforced concrete pads that distribute loads near the surface, often integrated with footing slabs to ensure stability on firm soil layers. Deep column bases utilize pile foundations or caissons driven deep into the ground to transfer structural loads through weak soil to stronger strata, involving extensive excavation and specialized deep foundation techniques. Construction of deep column bases demands more complex equipment and longer timelines compared to the simpler excavation and formwork processes typical of shallow bases.
Cost and Time Implications: Shallow vs Deep Column Bases
Shallow column bases generally incur lower construction costs and require less time due to simpler excavation and reduced material usage. Deep column bases demand more extensive labor, specialized equipment, and increased concrete volume, leading to higher expenses and longer project durations. Selecting between shallow and deep column bases directly impacts budget allocation and scheduling efficiency in foundation engineering.
Geotechnical Considerations in Choosing Column Base Type
Shallow column bases are suitable for soils with high bearing capacity and minimal settlement, reducing excavation and construction costs. Deep column bases, such as pile foundations, are necessary in weak or compressible soils to transfer loads to more stable strata and prevent excessive settlement. Geotechnical considerations, including soil strength, groundwater conditions, and load magnitude, are critical in selecting the appropriate column base to ensure structural stability and longevity.
Advantages and Limitations: Shallow vs Deep Column Bases
Shallow column bases provide ease of construction, lower cost, and suitability for soils with high bearing capacity, but they are limited by depth and may not handle heavy loads effectively. Deep column bases, such as pile caps or caissons, offer superior load-bearing capacity and stability in poor soil conditions but require more complex design and higher construction costs. Selecting between shallow and deep bases depends on soil characteristics, load requirements, and project budget constraints.

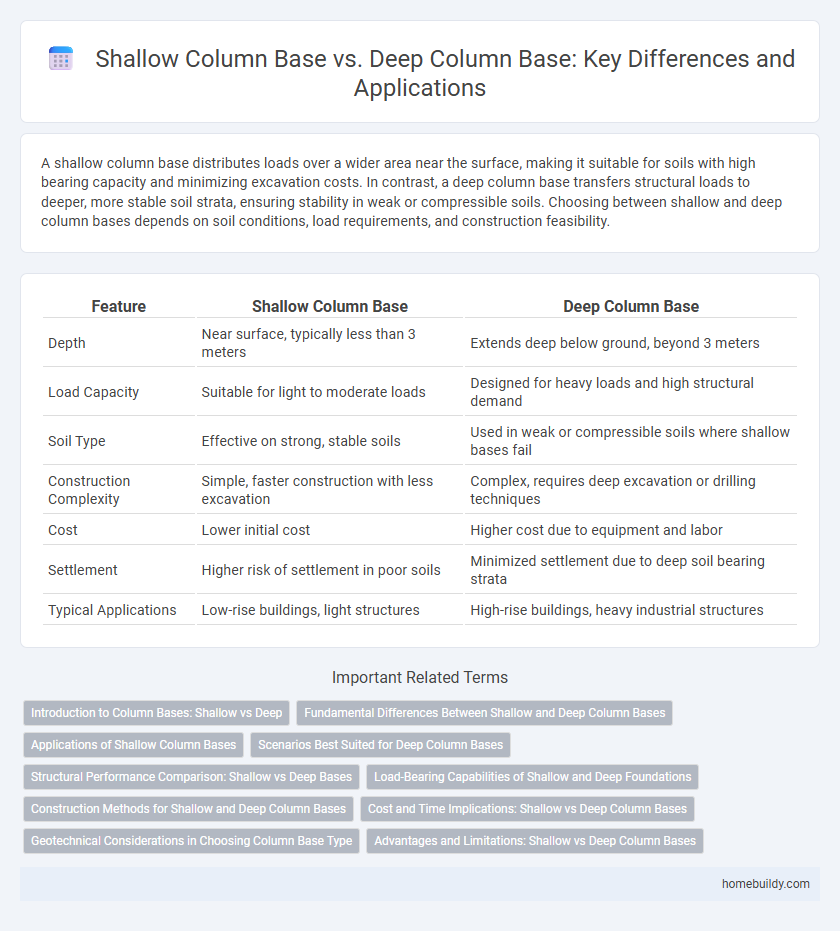

shallow column base vs deep column base Infographic
