homebuildy.com A base plate provides a rigid and stable support for columns, distributing loads evenly to the foundation, while a bearing pad offers flexibility by absorbing vibrations and accommodating slight movements between the column and its foundation. Base plates are typically made of steel and anchor the column securely, whereas bearing pads are made from elastomeric materials designed to reduce stress concentrations. Choosing between a base plate and a bearing pad depends on structural requirements, such as load type, movement allowance, and vibration control.
Table of Comparison
| Feature | Base Plate | Bearing Pad |
|---|---|---|
| Material | Steel or cast iron | Elastomer or rubber composite |
| Primary Function | Provides rigid support and load transfer from column to foundation | Absorbs vibrations and accommodates movements between structures |
| Load Capacity | High load-bearing capacity | Moderate load capacity with flexibility |
| Installation | Bolted or welded to the column base | Placed between structural elements |
| Movement Accommodation | Minimal to none | Allows lateral, rotational, and vertical movement |
| Durability | High, with corrosion resistance when coated | Moderate, subject to wear over time |
| Typical Applications | Column base support in steel structures | Bridge bearings, seismic isolations |
Introduction to Column Bases
Column bases are critical structural components that transfer loads from columns to foundations, ensuring stability and safety. Base plates distribute column loads over a larger area of the concrete foundation, preventing concrete crushing, while bearing pads provide cushioning and allow for slight movements or rotations to accommodate structural shifts. Understanding the differences between base plates and bearing pads is essential for optimizing load transfer and enhancing the durability of column bases.
Defining Base Plates in Structural Engineering
Base plates in structural engineering are flat steel components placed at the bottom of columns to distribute loads evenly over the foundation, preventing excessive stress concentrations. They provide a stable interface between the column and the supporting concrete or footing, ensuring structural integrity and alignment. Unlike bearing pads, base plates are rigid elements designed to transfer vertical and lateral forces while maintaining column positioning.
What Are Bearing Pads?
Bearing pads are flexible materials placed between a column base plate and its supporting structure to absorb stresses and accommodate movements caused by load variations and thermal expansion. These pads help prevent direct metal-to-metal contact, reducing wear and enhancing structural durability. Commonly made from elastomer or neoprene, bearing pads improve load distribution and protect the base plate from damage over time.
Base Plate vs Bearing Pad: Fundamental Differences
Base plates provide a rigid interface between a structural column and its foundation, ensuring load transfer and stability, while bearing pads serve as flexible cushioning elements that accommodate movements and reduce stress concentrations between steel structures. Base plates are typically made of steel plates anchored to concrete, distributing loads over a larger area, whereas bearing pads, often composed of elastomeric or composite materials, absorb vibration and thermal expansion effects. Understanding the fundamental differences between base plates and bearing pads is crucial for optimizing structural integrity and durability in construction projects.
Materials Used for Base Plates and Bearing Pads
Base plates are typically made from high-strength steel alloys like carbon steel or stainless steel to provide structural support and resist deformation under heavy column loads. Bearing pads, however, are commonly fabricated from elastomeric materials such as neoprene or reinforced rubber to absorb vibrations and accommodate slight movements between structural components. The material selection for base plates and bearing pads directly influences durability, load distribution, and overall structural performance in construction applications.
Functions and Applications in Construction
Base plates distribute structural loads from columns to the foundation, providing stability and preventing concrete damage under heavy compression. Bearing pads, typically made from elastomeric materials, absorb vibrations and accommodate movements between structural elements, enhancing durability and flexibility in construction joints. Both components are essential for maintaining structural integrity, with base plates focusing on load transfer and bearing pads on stress mitigation and movement accommodation.
Design Considerations for Base Plates and Bearing Pads
Design considerations for base plates prioritize structural stability, load distribution, and corrosion resistance, ensuring the steel column is securely anchored to the foundation. Bearing pads focus on accommodating thermal expansion, vibrations, and uneven loads by providing flexible support between the column base plate and the concrete or steel surface. Material selection for both base plates and bearing pads is critical to optimize durability, reduce maintenance, and enhance overall structural performance.
Load Distribution Mechanisms
Base plates facilitate load distribution by spreading column forces over a larger concrete surface area, reducing bearing stress and preventing punching shear. Bearing pads, typically made of elastomeric materials, accommodate minor rotations and uneven settlements while evenly distributing loads between the column base and foundation. Effective load distribution mechanisms in base plates and bearing pads are critical for structural stability and longevity.
Installation Techniques: Base Plates vs Bearing Pads
Installation techniques for base plates involve precise leveling using grout and anchor bolts to ensure structural stability and load transfer efficiency, while bearing pads require careful placement to accommodate thermal expansion and prevent shear stress on the column. Base plates often demand meticulous alignment during installation to maintain column verticality, and bearing pads utilize elastomeric materials for cushioning and load distribution. Proper installation of both components is critical for building safety, with base plates securing the column's fixed position and bearing pads absorbing movement and reducing structural wear.
Maintenance and Long-Term Performance
Base plates require regular inspection and cleaning to prevent corrosion and ensure stability, while bearing pads demand frequent checks for wear, deformation, and proper alignment to maintain load distribution. Proper maintenance of base plates extends their durability by minimizing rust and structural damage, whereas well-maintained bearing pads enhance long-term performance by accommodating thermal expansion and reducing stress on columns. Both components are critical for structural integrity, with bearing pads playing a key role in absorbing vibrations and base plates providing a stable foundation for column support.

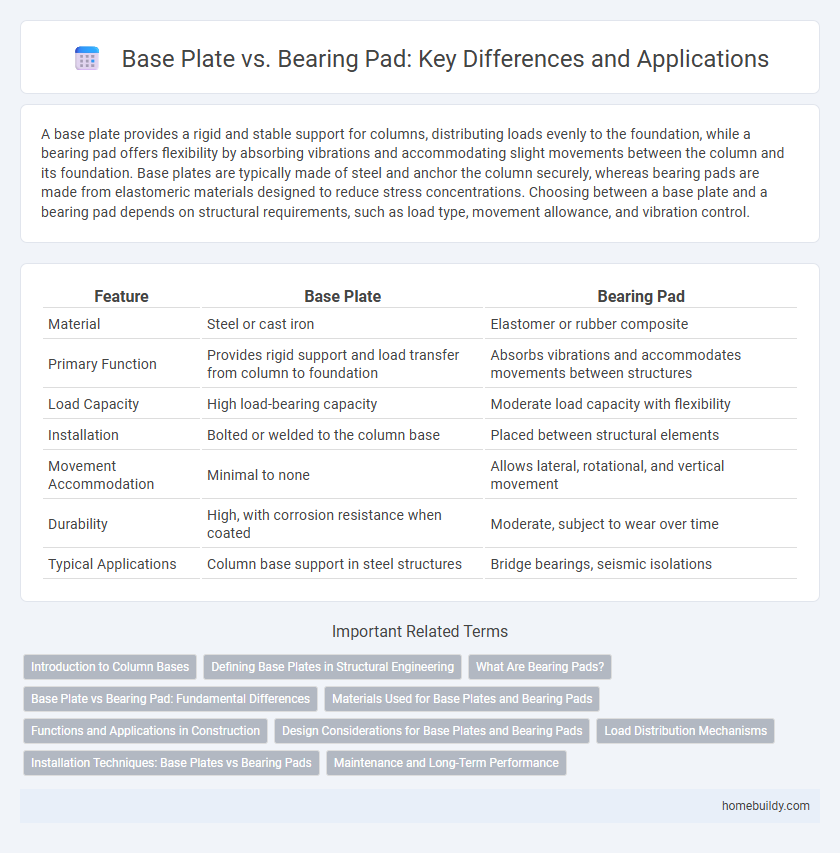

base plate vs bearing pad Infographic
