homebuildy.com Pile foundations transfer building loads through weak soil layers to stronger, deeper strata, making them ideal for heavy structures on soft ground. Pad foundations distribute loads directly to shallow soil via individual concrete pads, suitable for smaller buildings with stable ground conditions. Choosing between pile and pad foundations depends on soil strength, load requirements, and construction budget.
Table of Comparison
| Aspect | Pile Foundation | Pad Foundation |
|---|---|---|
| Definition | Deep foundation transferring load through weak soil to stronger layers | Shallow foundation distributing structure load on a small area of soil |
| Depth | Extends deep into soil, often several meters | Typically shallow, less than 3 meters |
| Load Capacity | Supports heavy loads, ideal for large buildings and bridges | Supports moderate loads, suitable for small to medium structures |
| Soil Type | Good for weak or loose soils with poor bearing capacity | Requires firm, stable soil with adequate bearing capacity |
| Construction Cost | Higher due to depth and complexity | Lower and simpler construction process |
| Installation Time | Longer due to piling process | Shorter, straightforward excavation and concreting |
| Common Uses | Tall buildings, bridges, and heavy industrial structures | Low-rise buildings, residential houses, and small offices |
Introduction to Pile and Pad Foundations
Pile foundations transfer structural loads to deeper, more stable soil layers through long, slender columns driven or drilled into the ground, making them ideal for weak or expansive soils. Pad foundations, also known as spread footings, distribute loads over a wider area of shallow soil, supporting columns directly and suit sites with strong, uniform soil near the surface. Understanding soil bearing capacity and load requirements is essential when choosing between pile and pad foundation systems for column bases in construction.
What is a Pile Foundation?
A pile foundation consists of long, slender columns driven deep into the ground to transfer structural loads to stronger soil layers or bedrock, ideal for sites with weak or compressible surface soils. It provides enhanced load-bearing capacity and stability for heavy structures like bridges, high-rise buildings, and industrial facilities. Compared to pad foundations, pile foundations address soil settlement issues and enable construction on challenging terrains with varying soil conditions.
What is a Pad Foundation?
A pad foundation is a type of shallow foundation that transfers column loads directly to the ground through a concrete base, typically square or rectangular in shape. It is commonly used for isolated columns where soil bearing capacity is adequate, providing support by spreading the load over a larger area to prevent excessive settlement. Pad foundations are cost-effective and simpler to construct compared to deep pile foundations, making them suitable for light to moderate structural loads.
Key Differences Between Pile and Pad Foundations
Pile foundations transfer structural loads to deeper, more stable soil layers, making them ideal for weak or expansive soils, whereas pad foundations distribute load over a larger surface area on shallow, stable ground. Pile foundations provide higher load-bearing capacity and resistance against settlement, while pad foundations are simpler, more cost-effective, and suitable for lighter structures. Soil conditions, load requirements, and construction costs are critical factors in choosing between pile and pad foundations.
Load-Bearing Capacities: Pile vs Pad
Pile foundations exhibit significantly higher load-bearing capacities than pad foundations due to their ability to transfer structural loads deep into stable soil layers or bedrock. Pad foundations primarily distribute loads over a larger surface area on shallow soils, making them suitable for lighter structures or soil with sufficient bearing capacity. For heavy or unstable soil conditions, pile foundations provide enhanced stability and minimize settlement risks.
Suitable Soil Conditions for Each Foundation
Pile foundations are suitable for weak or compressible soils where deep load-bearing strata are required to support heavy column loads. Pad foundations work best on firm, stable soils with high bearing capacity, allowing for direct transfer of column loads to the ground. Soil tests like Standard Penetration Test (SPT) and Plate Load Test inform foundation choice by evaluating soil strength and layering.
Construction Methods Compared: Pile vs Pad
Pile foundations involve driving long, slender columns deep into the ground to transfer structural loads through weak soil layers to stronger strata, offering enhanced support for heavy or tall column bases in challenging geotechnical conditions. Pad foundations consist of wide, shallow concrete pads that directly distribute column loads over a larger soil area near the surface, making them suitable for lighter structures with stable soil profiles. Construction of pile foundations requires specialized equipment for pile driving or boring, increasing complexity and cost, whereas pad foundations involve simpler excavation and formwork, facilitating faster and more economical installation.
Cost Comparison: Pile Foundation vs Pad Foundation
Pile foundation generally incurs higher costs than pad foundation due to deeper excavation, greater material usage, and specialized installation equipment. Pad foundation is more economical for structures with lighter loads and stable soil conditions, requiring less labor and fewer materials. For large-scale or heavy-load projects on weak soils, pile foundation cost increases significantly but ensures structural integrity where pad foundations may fail.
Common Applications and Use Cases
Pile foundations are commonly used in large-scale construction projects, such as high-rise buildings and bridges, where soil conditions are weak or variable and deep load transfer is essential. Pad foundations are typically applied in low to medium-rise structures with stable soil, providing a cost-effective solution for supporting individual columns or light loads. Both foundation types are crucial in ensuring structural stability, with piles offering greater support in challenging geotechnical environments and pads suited for uniform soil-bearing capacities.
Choosing the Right Foundation for Your Project
Pile foundations offer superior load-bearing capacity and are ideal for sites with weak or compressible soils, transferring loads deep below the surface to stable strata. Pad foundations suit lighter structures on firm ground, distributing column loads over a wide area to prevent excessive settlement. Selecting the right foundation depends on soil conditions, load requirements, and project budget, with geotechnical surveys guiding optimal decisions for long-term stability.

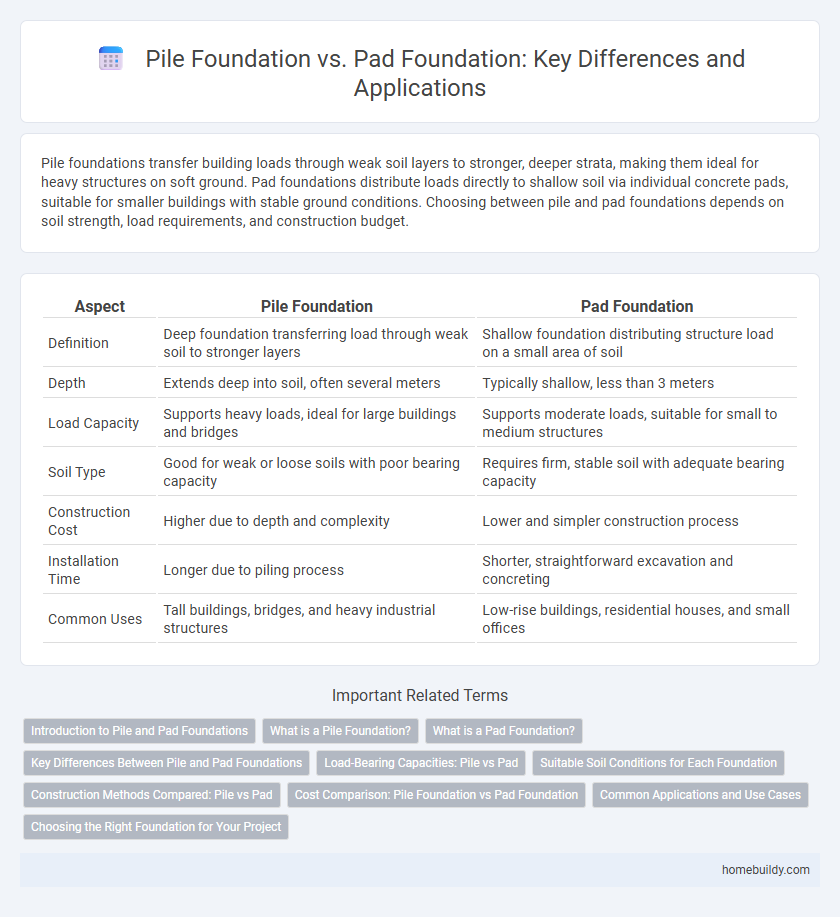

pile foundation vs pad foundation Infographic
