homebuildy.com A base plate serves as a structural component that distributes column loads to the foundation, providing a stable interface between steel columns and concrete pads. Grillage foundation consists of a network of beams laid in tiers to spread heavy column loads over a larger soil area, ideal for soft or weak ground conditions. Unlike base plates, grillage foundations offer enhanced load distribution and support for heavier structures requiring deep and robust foundation systems.
Table of Comparison
| Feature | Base Plate Foundation | Grillage Foundation |
|---|---|---|
| Definition | Steel plate placed under a column to distribute load to the concrete. | Layered grillage of steel beams to spread column load over a larger area. |
| Load Distribution | Concentrated load spread over a small area. | Uniform load distribution over wider soil area. |
| Structural Components | Single steel plate, anchor bolts, concrete footing. | Multiple steel beams arranged in crisscross layers within concrete. |
| Suitability | Light to moderate column loads on firm soil. | Heavy loads, weak or compressible soil conditions. |
| Construction Complexity | Simple; quick installation. | Complex; requires precise beam placement and welding. |
| Cost | Lower initial cost. | Higher cost due to additional steel and labor. |
| Common Applications | Industrial columns, steel structures with moderate loads. | Heavy machinery bases, large structural columns. |
Introduction to Base Plate and Grillage Foundation
Base plates serve as critical structural elements that evenly distribute column loads to concrete foundations, ensuring stability and minimizing localized stress. Grillage foundations consist of multiple layers of beams arranged in a grid pattern to spread heavy column loads over a larger soil area, enhancing load-bearing capacity. Both systems optimize load transfer but differ in application, with base plates used for direct column-to-foundation connections and grillage foundations designed for supporting heavier loads on weak soils.
Definition and Purpose of Base Plate
A base plate is a crucial steel component positioned between a column and its foundation to distribute loads evenly and provide a stable connection. Unlike grillage foundations, which consist of layered steel beams designed to spread heavy column loads over a wider soil area, base plates primarily serve to transfer axial and moment forces from the column to the concrete foundation safely. The base plate ensures structural integrity by preventing stress concentrations, facilitating load transfer, and allowing for anchorage and leveling during column installation.
Definition and Purpose of Grillage Foundation
Grillage foundation is a structural framework composed of multiple layers of steel beams arranged in a grid pattern to distribute column loads over a larger soil area, minimizing stress and preventing settlement. Unlike base plates that directly transfer column loads to a single concrete footing, grillage foundations provide a robust, flexible support system ideal for heavy loads and weak soil conditions. This foundation type ensures stability by spreading concentrated loads efficiently, enhancing the bearing capacity beneath columns in construction projects.
Key Differences Between Base Plate and Grillage Foundation
The base plate is a steel plate used to distribute the load from a column to the concrete foundation, providing a stable and even surface for load transfer, while a grillage foundation consists of multiple layers of steel beams arranged in a grid pattern to spread heavy loads over a larger area. Base plates are typically simpler, thinner, and used for lighter columns, whereas grillage foundations offer enhanced load distribution capacity suitable for heavy structures such as bridges or large buildings. The key difference lies in their structural complexity and load-bearing mechanism: base plates transfer loads directly to a concrete base, while grillage foundations use interconnected steel beams to reduce soil pressure and improve stability.
Material Selection: Base Plate vs Grillage Foundation
Base plates are typically made from high-strength steel plates to evenly distribute column loads onto the concrete pedestal, ensuring structural stability and minimizing material thickness. Grillage foundations use multiple layers of steel beams arranged orthogonally, often fabricated from structural steel sections like I-beams or channels, to spread heavy loads over a larger soil area and reduce settlement. Material selection for base plates emphasizes flatness, corrosion resistance, and weldability, while grillage foundations prioritize beam strength, rigidity, and ease of field assembly.
Structural Applications and Suitability
Base plates provide a direct and stable interface between columns and their foundations, ensuring efficient load transfer in structural applications with moderate to heavy column loads. Grillage foundations are ideal for distributing heavy, uneven column loads across soft or weak soils by using layered beams, enhancing overall foundation stability. Selection between base plate and grillage foundation depends on soil conditions, load intensity, and structural design requirements, optimizing performance and safety.
Load Distribution Mechanisms
Base plates transfer column loads directly onto the concrete foundation, distributing forces evenly across a localized area through bearing stress. Grillage foundations utilize a network of beams to spread loads over a wider soil area, reducing pressure on weak soil strata by distributing forces through bending moments and shear. The choice between base plate and grillage foundation depends on soil capacity and load intensity, optimizing structural stability through distinct load distribution mechanisms.
Installation Methods and Construction Techniques
Base plate installation involves precise alignment and secure bolting of steel columns onto a concrete foundation, requiring accurate anchor bolt positioning and grouting to ensure load transfer and stability. Grillage foundation construction consists of layering steel beams in a grid pattern over a mound of compacted soil or concrete, distributing column loads evenly and reducing settlement risks. Both methods demand meticulous survey and leveling work, but base plates are typically faster to install, while grillage foundations offer enhanced load distribution for heavier structures.
Cost Considerations and Maintenance
Base plates typically offer lower initial costs compared to grillage foundations due to simpler design and less material usage. Grillage foundations, while more expensive upfront, provide enhanced load distribution and reduced settlement, leading to lower long-term maintenance expenses. Cost considerations favor base plates for smaller projects, whereas grillage foundations are more economical over the lifecycle of large, heavily loaded structures.
Choosing the Right Foundation: Factors to Consider
Selecting between a base plate and grillage foundation hinges on load distribution, soil bearing capacity, and project scale. Base plates are ideal for moderate loads and uniform soil conditions, providing a direct interface between column and foundation. Grillage foundations suit heavy loads and poor soil conditions by distributing weight through layered steel beams, enhancing stability.

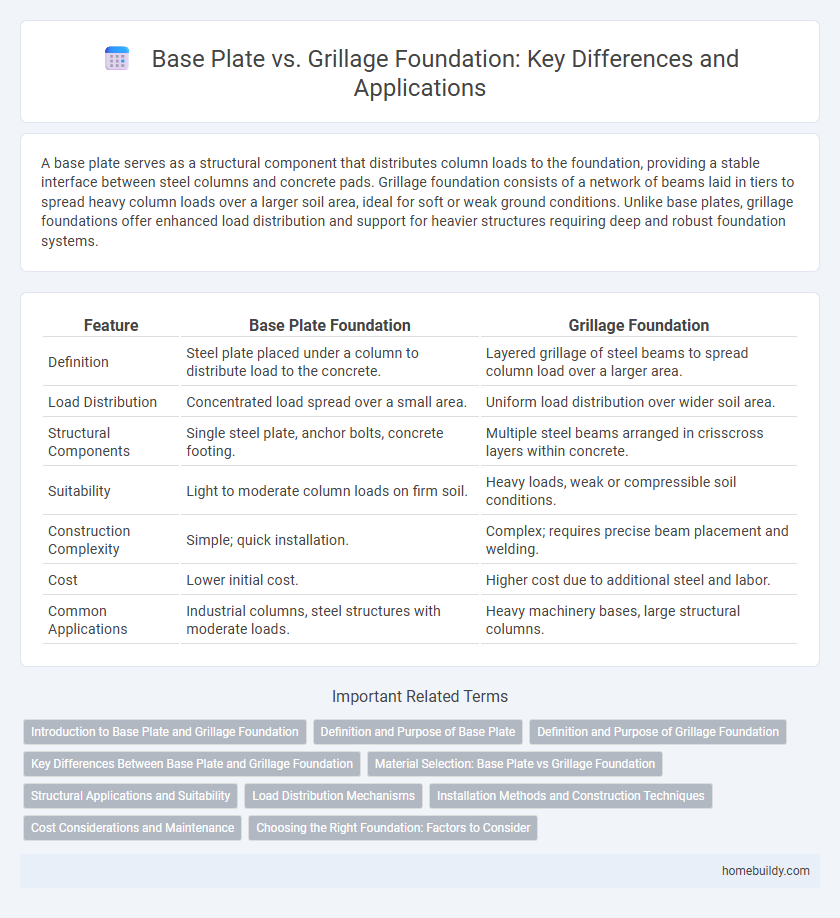

base plate vs grillage foundation Infographic
