homebuildy.com A pedestal column base provides a sturdy, elevated platform that evenly distributes structural loads to the foundation, ideal for smaller loads and architectural features. In contrast, a pile column base transfers loads deep into the ground through piles, supporting heavy loads and ensuring stability in weak soil conditions. Understanding the distinction helps in selecting the appropriate foundation system for durability and safety.
Table of Comparison
| Feature | Pedestal Column Base | Pile Column Base |
|---|---|---|
| Definition | Raised concrete block supporting the column above foundation level. | Deep foundation element transferring load to soil or rock layers. |
| Load Transfer | Directly to shallow foundation or footing. | Transfers load to deeper soil strata via piles. |
| Depth | Shallow, typically less than 1 meter. | Deep foundation, extends several meters below ground. |
| Use Case | Suitable for stable soil with adequate bearing capacity. | Used where surface soil is weak or compressible. |
| Construction Complexity | Simple and cost-effective construction. | Requires specialized equipment and higher cost. |
| Structural Stability | Dependent on soil bearing capacity and pedestal strength. | Provides high stability in poor soil conditions. |
| Typical Materials | Reinforced concrete or masonry. | Concrete, steel, or timber piles. |
| Maintenance | Minimal maintenance required. | Periodic inspection for pile integrity recommended. |
Overview of Pedestal Column Base and Pile Column Base
Pedestal column bases provide direct support by transferring loads from the column to a firm foundation through a reinforced concrete block, ensuring high stability for moderate soil conditions. Pile column bases, in contrast, distribute structural loads through piles driven deep into the ground, suitable for weak or compressible soils requiring deep foundation solutions. Both systems are integral in structural engineering, with pedestal bases favored for shallow foundations and pile bases for added depth and load-bearing capacity.
Key Differences Between Pedestal and Pile Column Bases
Pedestal column bases rest on shallow foundations, offering stability for lighter structures by distributing loads over a small area, while pile column bases transfer heavy loads deep into the ground through long, slender columns driven into the soil. Pedestal bases are typically easier and faster to construct, suitable for sites with strong surface soil, whereas pile bases provide essential support in weak or unstable soil conditions by reaching firm strata. Key differences include load capacity, installation depth, and suitability based on soil bearing capacity and structural requirements.
Material Selection for Pedestal and Pile Column Bases
Pedestal column bases are typically constructed using reinforced concrete or steel to provide a stable platform that evenly distributes structural loads, ensuring enhanced durability and resistance to compressive stresses. Pile column bases often incorporate concrete-filled steel casings or treated timber piles, selected for their ability to transfer loads deep into the soil, accommodating weak or expansive subsoil conditions. Material selection for both types prioritizes strength, corrosion resistance, and compatibility with environmental factors to maintain long-term structural integrity.
Structural Load Distribution in Column Base Types
Pedestal column bases transfer structural loads directly onto a concrete pedestal, offering concentrated load distribution ideal for moderate vertical loads and limited soil bearing capacity. Pile column bases distribute loads through deep foundation piles, effectively transferring heavy structural forces to deeper, more stable soil layers or bedrock, minimizing settlement risks. The choice between pedestal and pile column bases depends on soil conditions and load magnitude, impacting overall structural stability and foundation performance.
Applications and Suitability of Pedestal Column Bases
Pedestal column bases are especially suitable for structures requiring stable support on solid, level foundations such as concrete slabs or footings, commonly found in commercial buildings and bridges. They provide superior load distribution for columns in environments where the soil bearing capacity is adequate, minimizing settlement risks and enhancing structural integrity. In contrast to pile column bases, pedestal bases are less appropriate for weak or expansive soils where deep foundation support is necessary.
Applications and Suitability of Pile Column Bases
Pile column bases are ideal for applications involving weak or expansive soils where deep foundation support is critical for stability. These bases transfer load through piles driven deep into the ground, ensuring suitability for high-rise buildings, bridges, and heavy industrial structures requiring enhanced load-bearing capacity. Their design accommodates dynamic and uneven soil conditions, making them preferable over pedestal bases in challenging geotechnical environments.
Installation Process: Pedestal vs. Pile Column Base
The installation process of a pedestal column base involves precise alignment and anchoring on a prepared concrete foundation, ensuring stability through bolts fixed directly into the slab. In contrast, a pile column base requires driving or drilling deep structural piles into the ground to bear heavy loads, followed by attaching the column base to pile caps. Pedestal bases offer quicker installation on solid foundations, while pile bases are essential for weak soil conditions demanding deeper load transfer.
Cost Analysis: Pedestal Column Base vs. Pile Column Base
Pedestal column bases generally incur lower initial costs due to simpler construction requirements and less extensive excavation compared to pile column bases, which demand specialized equipment and deeper foundation work. However, pile column bases offer superior load-bearing capacity and durability in weak soil conditions, potentially reducing long-term maintenance expenses. Cost analysis must weigh immediate expenditures against the structural benefits and lifecycle performance associated with each foundation type.
Durability and Maintenance Considerations
Pedestal column bases typically offer enhanced durability due to their solid, raised platform design that resists soil moisture and erosion, reducing corrosion risks. Pile column bases require more frequent maintenance as they are directly embedded in the ground or water, exposing them to varying soil conditions and potential settlement issues. Regular inspections and protective coatings are essential for pile bases to ensure structural integrity and extend lifespan.
Choosing the Right Column Base for Your Project
Choosing the right column base between a pedestal column base and a pile column base depends on load requirements, soil conditions, and structural design. A pedestal column base is ideal for lighter loads and stable, compact soils, offering ease of installation and cost efficiency. In contrast, a pile column base suits heavy loads and weak soil conditions by transferring structural loads deep into the ground, ensuring stability and minimizing settlement risks.

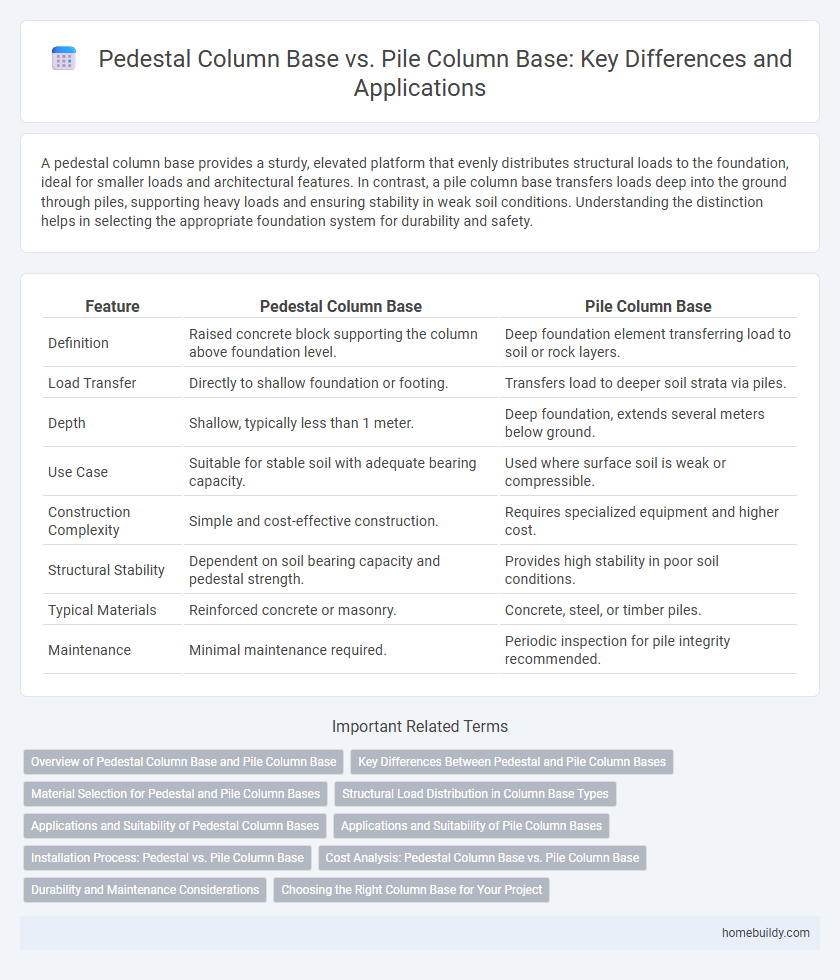

pedestal column base vs pile column base Infographic
