homebuildy.com Spread footings provide individual support for isolated columns, distributing loads over a larger area to prevent excessive settlement, making them ideal for structures with widely spaced columns. Strip footings, on the other hand, extend continuously beneath a row of columns or a load-bearing wall, effectively distributing loads along a linear path and suitable for supporting walls or closely spaced columns. Choosing between spread and strip footing depends on load distribution, soil bearing capacity, and structural layout requirements.
Table of Comparison
| Feature | Spread Footing | Strip Footing |
|---|---|---|
| Definition | Isolated footing supporting single columns. | Continuous footing supporting a line of columns or walls. |
| Application | Used for individual column loads. | Used under load-bearing walls or closely spaced columns. |
| Load Distribution | Distributes loads from one column over a larger area. | Distributes loads along the length of the footing. |
| Structural Type | Isolated footing. | Continuous footing. |
| Soil Requirement | Suitable for strong, uniform soil conditions. | Better for weaker soils requiring load spread. |
| Construction Complexity | Simple, faster to construct. | More complex, requires formwork for continuity. |
| Cost | Generally more economical for isolated loads. | Cost-effective for multiple close columns or walls. |
| Typical Dimensions | Square or rectangular pad footing wider than column. | Long strip with uniform width under wall or columns. |
Introduction to Column Base Foundations
Column base foundations transfer structural loads to the ground, ensuring stability and load distribution. Spread footings provide a wide area beneath individual columns to spread load over a larger soil surface, suitable for moderate loads and good soil conditions. Strip footings, extending linearly under a row of columns or walls, are ideal for supporting continuous loads and distributing weight along a linear axis.
What is Spread Footing?
Spread footing is a type of shallow foundation designed to distribute column loads over a wider area of soil, preventing excessive settlement. It typically consists of a concrete pad that supports one or more columns, spreading the load to ensure stability on soils with adequate bearing capacity. Spread footings are commonly used in residential and commercial buildings where soil conditions allow for shallow foundation applications.
What is Strip Footing?
Strip footing is a continuous strip of concrete that supports walls or closely spaced columns by distributing the load evenly along the length of the foundation. It is commonly used for load-bearing walls where the soil has sufficient bearing capacity and spans are relatively uniform. Compared to spread footings, strip footings provide a linear load distribution, making them more efficient for supporting wall structures.
Structural Differences: Spread vs. Strip Footing
Spread footing supports individual columns by distributing loads over a wide, square or rectangular base, while strip footing runs continuously beneath load-bearing walls, spreading weight along a linear path. The structural design of spread footings requires careful sizing to prevent excessive settlement or soil failure under concentrated loads, whereas strip footings are engineered to resist bending moments and shear forces over longer spans. Material thickness and reinforcement patterns differ, with spread footings often needing thicker footing pads and denser rebar compared to the elongated, thinner strip footings used along wall foundations.
Load Distribution in Spread and Strip Footings
Spread footings distribute column loads over a wider, square or rectangular area, providing enhanced load-bearing capacity and stability on soils with lower bearing strength. Strip footings distribute loads linearly beneath walls or continuous columns, effectively managing uniform loads over longer distances but with less lateral spread than spread footings. Proper load distribution in spread footings reduces soil pressure and settlement risks, while strip footings focus on uniform support along the length of structural elements.
Site Suitability: When to Use Spread or Strip Footing
Spread footings are ideal for sites with strong, uniform soil capable of supporting localized loads from individual columns, offering stability in areas with high bearing capacity. Strip footings suit sites with continuous load-bearing walls and relatively consistent soil conditions, distributing load along a linear path to prevent differential settlement. Selection depends on soil bearing capacity, load type, and structural layout to ensure optimal foundation performance and cost efficiency.
Material and Construction Cost Comparison
Spread footings typically require more concrete and reinforcement steel than strip footings, resulting in higher material costs due to their individual load-bearing design. Construction costs for spread footings are often greater because they need precise excavation and formwork for each column base, increasing labor and equipment expenses. In contrast, strip footings use continuous concrete strips which reduce material usage and streamline construction, usually lowering overall project costs.
Design Considerations for Spread and Strip Footings
Spread footing design requires careful assessment of load distribution and soil bearing capacity to ensure stability under concentrated column loads. Strip footing design emphasizes uniform load transfer along continuous walls, demanding precise determination of footing width and thickness based on soil properties and structural loads. Both footing types necessitate rigorous evaluation of settlement criteria and shear strength to optimize safety and performance in varying geotechnical conditions.
Common Applications in Column Base Construction
Spread footings are commonly used for individual columns supporting moderate loads, providing a wide base that distributes the load evenly to prevent excessive settlement. Strip footings are typically employed in row or continuous column arrangements, such as walls or closely spaced columns, where the load is spread along a linear path. Both types serve crucial roles in ensuring stability and load transfer efficiency in various column base construction projects.
Pros and Cons: Spread Footing vs. Strip Footing
Spread footing offers greater load distribution for individual columns, making it ideal for structures with isolated loads and varying soil conditions. Strip footing, designed for continuous load-bearing walls, provides cost-effective support over longer distances but may be less suitable for uneven loads or weaker soils. Both footing types require careful consideration of soil bearing capacity, structural load, and construction cost to determine the optimal foundation solution.

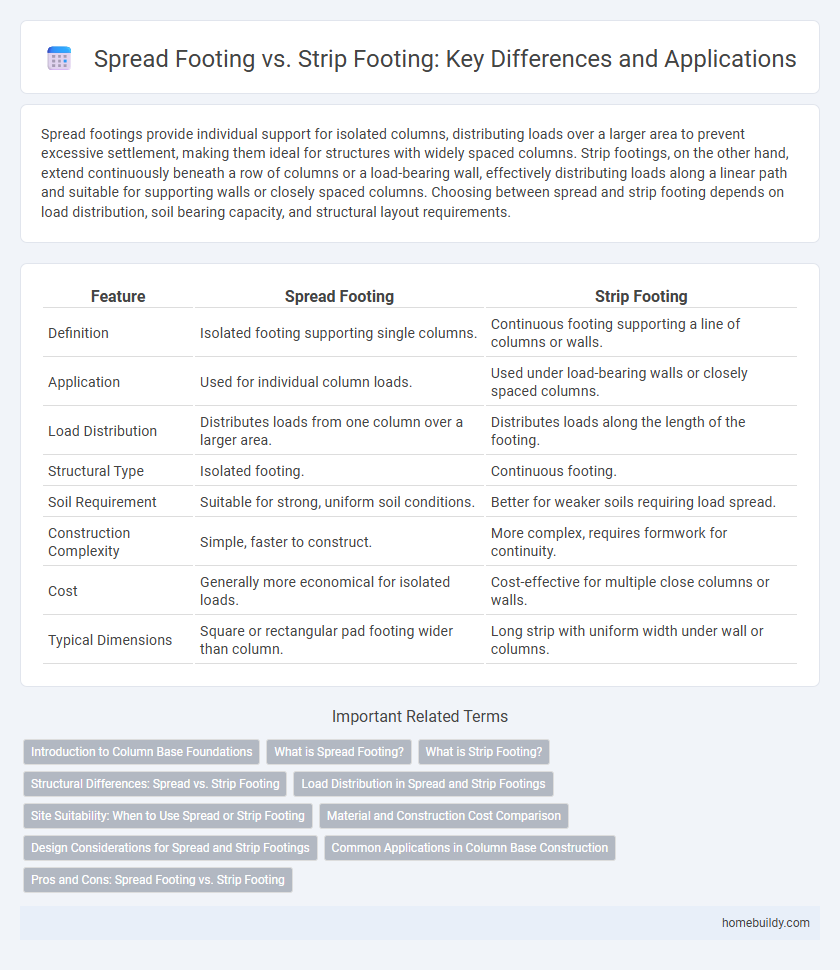

spread footing vs strip footing Infographic
