homebuildy.com Truss plates provide superior structural strength and stability compared to wood splices by securely fastening multiple wooden members together using metal connectors. Unlike wood splices, which rely solely on wood-to-wood contact and adhesives or fasteners, truss plates distribute loads evenly across joints, reducing the risk of failure. Their precision manufacturing ensures consistent quality, making truss plates a preferred choice in modern construction for durable and reliable wood framing connections.
Table of Comparison
| Feature | Truss Plate | Wood Splice |
|---|---|---|
| Material | Galvanized steel | Wood (matching species) |
| Primary Use | Connecting truss members securely | Extending or repairing wood members |
| Installation | Pressed or nailed into wood | Glued and fastened with nails or screws |
| Strength | High shear resistance | Moderate, depends on adhesive and fasteners |
| Durability | Corrosion-resistant steel | Prone to splitting or loosening over time |
| Typical Applications | Roof trusses, floor trusses | Beam repairs, wood member extensions |
| Cost | Low to moderate | Varies, often higher due to labor |
Understanding Truss Plates and Wood Splices
Truss plates are metal connectors used to join wooden members in prefabricated roof trusses, offering high-strength, efficient load transfer through embedded teeth that grip the wood securely. Wood splices involve joining timber sections end-to-end using mechanical fasteners or adhesives, often requiring more labor and providing variable strength depending on technique and materials. Understanding the mechanical properties and application differences between truss plates and wood splices is crucial for ensuring structural integrity and longevity in timber construction projects.
Structural Performance: Truss Plate vs Wood Splice
Truss plates provide superior structural performance by distributing loads evenly across connections, enhancing the overall stability and strength of wooden frameworks compared to wood splices, which rely on overlapping joints vulnerable to stress concentrations and potential failure points. The metal composition and precise stamping of truss plates ensure consistent load transfer and resistance to shear forces, while wood splices can weaken over time due to wood shrinkage and environmental factors. Engineers favor truss plates for load-bearing applications as they significantly improve rigidity and reduce the risk of joint deformation in roof trusses and timber structures.
Materials Used in Truss Plates and Wood Splices
Truss plates are primarily composed of galvanized steel, providing high tensile strength and corrosion resistance ideal for structural connections. Wood splices utilize timber or engineered wood products, relying on adhesive bonding or mechanical fasteners to join sections while maintaining the wood's natural flexibility. The choice of materials significantly affects the durability and load-bearing capacity of the joint in framing and construction applications.
Installation Process Comparison
Truss plates offer a quicker installation process compared to wood splices, as they simply require pressing the metal plate onto the timber using a hydraulic press or nail gun. Wood splice installation involves more precise cutting, fitting, and fastening, increasing labor time and complexity. The use of truss plates reduces on-site errors and ensures consistent joint strength with minimal adjustment.
Cost Analysis: Truss Plate vs Wood Splice
Truss plates generally offer a more cost-effective solution compared to wood splices due to lower material and labor expenses, with steel truss plates costing around $0.15 to $0.30 per plate versus the higher labor costs needed for custom wood splice fabrication. Installation of truss plates is faster, reducing overall construction time and associated costs, while wood splices require skilled carpentry and longer assembly times, increasing project expenses. When evaluating long-term durability and maintenance costs, truss plates provide a reliable, low-maintenance connection that often results in better overall value compared to wood splices.
Durability and Longevity
Truss plates offer superior durability compared to wood splices due to their corrosion-resistant galvanized steel composition, ensuring long-lasting structural integrity in various environmental conditions. Unlike wood splices, which rely on adhesive bonds and mechanical fasteners susceptible to moisture and temperature fluctuations, truss plates provide consistent load distribution and resistance to shear forces over time. This enhanced longevity makes truss plates the preferred choice in construction applications where maintenance and lifespan are critical factors.
Load-Bearing Capacity Differences
Truss plates provide significantly higher load-bearing capacity compared to wood splices due to their steel composition and optimized perforation design, which ensures superior joint strength and uniform load distribution. Wood splices, relying on mechanical fasteners and adhesive bonds, generally exhibit lower durability under heavy loads and are more susceptible to deformation and failure over time. Engineered truss plates allow for consistent, reliable structural performance in heavy-load applications, making them preferable for modern timber frame construction.
Common Applications and Use Cases
Truss plates are commonly used in prefabricated roof trusses and wall panels to provide strong, quick connections between wood members, ensuring structural integrity in residential and commercial construction. Wood splices are typically applied in repairing or extending wood beams and posts, allowing for seamless continuity in load-bearing elements without prefabrication. While truss plates excel in factory settings for mass production, wood splices are favored on-site for custom or repair work where precise alignment and strength restoration are critical.
Building Code and Certification Requirements
Truss plates must comply with ASTM standards and are recognized in building codes such as the International Building Code (IBC) for structural connections, ensuring certified load-bearing capacity and safety. Wood splices require adherence to specific guidelines outlined by codes like the National Design Specification (NDS) for Wood Construction, which governs splice location, length, and fastening to maintain structural integrity. Certification requirements for truss plates often include manufacturer testing and quality control programs, whereas wood splices depend heavily on proper on-site execution and inspection to meet code compliance.
Pros and Cons: Truss Plate vs Wood Splice
Truss plates offer superior load distribution and quicker installation compared to wood splices, enhancing structural integrity in wood framing. Wood splices provide better flexibility for custom or irregular joint configurations but require more labor and precise workmanship. While truss plates reduce the risk of joint failure due to metal reinforcement, wood splices maintain wood continuity, which can be advantageous in certain restoration or architectural applications.

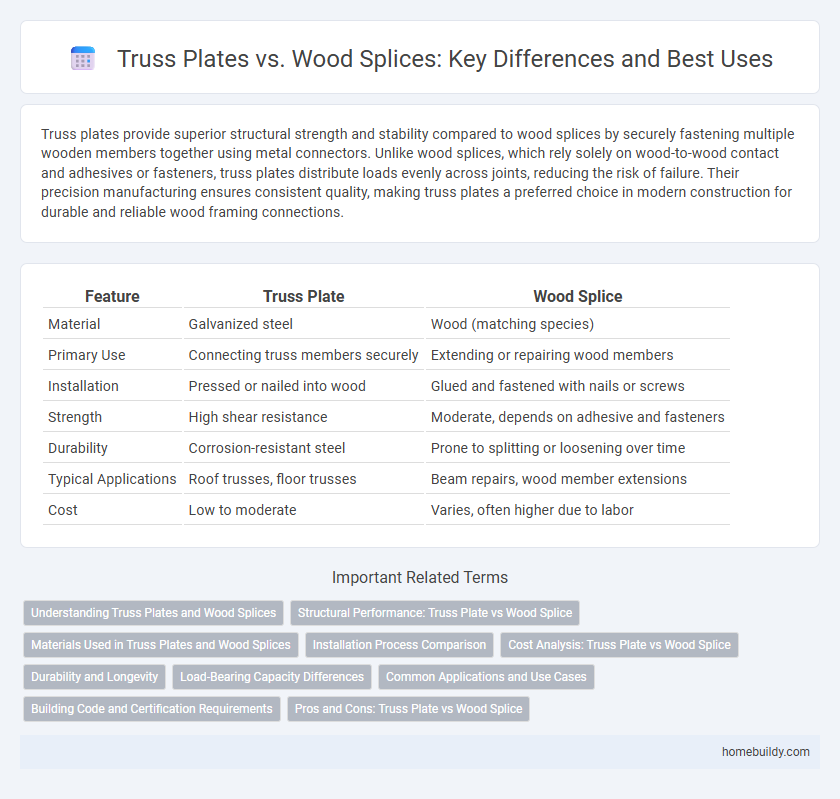

Truss plate vs Wood splice Infographic
