homebuildy.com Truss plates and gusset plates are essential components in structural engineering but serve distinct purposes. Truss plates are primarily used to connect multiple timber members at a joint by embedding metal teeth into the wood, providing strong and efficient load transfer. In contrast, gusset plates are flat steel plates used to reinforce connections in steel or wooden frameworks, often fastening beams and columns together with bolts or welds for added stability.
Table of Comparison
| Feature | Truss Plate | Gusset Plate |
|---|---|---|
| Definition | Steel connector plate with multiple teeth for joining truss members. | Flat steel plate used to connect beams, columns, or girders at joints. |
| Application | Primarily used in wooden roof trusses. | Commonly used in steel structures and frame joints. |
| Material | Galvanized steel with embedded teeth. | Thick steel plate, often welded or bolted. |
| Installation | Pressed into wood using hydraulic presses. | Attached using bolts or welds. |
| Function | Distributes load by gripping and fastening truss members. | Reinforces joint connections and transfers loads. |
| Load Types | Primarily shear loads in timber joints. | Handles tension, compression, and shear. |
| Typical Thickness | Thin, usually 1.5-3 mm. | Thick, ranging from 6 mm to over 20 mm. |
| Advantages | Quick installation, cost-effective for wooden trusses. | Strong, versatile for various structural connections. |
Overview of Truss Plates and Gusset Plates
Truss plates are metal connectors used to join timber members in a truss system, characterized by their thin, perforated steel design that allows for efficient load transfer and ease of installation. Gusset plates, in contrast, are thicker, typically solid steel plates employed to connect structural elements at joints, providing enhanced strength and rigidity in steel framework or heavy timber construction. Both plates serve critical roles in structural stability, with truss plates favored for light to medium timber frameworks and gusset plates preferred for high-stress, multi-directional load connections.
Key Structural Functions Compared
Truss plates primarily serve to connect wood members by embedding steel teeth into the timber, ensuring strong load transfer and tensile strength in timber frame construction. Gusset plates, typically made of thicker steel, provide a broader surface area for bolting or welding, enhancing structural stability by distributing stresses across joints in steel or composite frameworks. Each plate type optimizes joint performance based on material compatibility and load requirements, with truss plates excelling in wood connections and gusset plates in versatile, heavy-duty metal assemblies.
Material Composition Differences
Truss plates are typically made from galvanized steel with a thin, flat profile designed for easy embedding in wood joints, providing corrosion resistance and high tensile strength. Gusset plates consist of thicker, heavier steel or aluminum, often uncoated, offering greater rigidity and load-bearing capacity for connecting beams and girders. Material composition directly influences their specific applications, with truss plates optimized for lightweight, distributed loads and gusset plates suited for heavy structural support.
Typical Applications in Construction
Truss plates are typically used to connect wooden members in roof trusses, providing efficient load distribution in residential and light commercial buildings. Gusset plates are commonly employed in steel structures to join beams and columns, enhancing stability in bridges, towers, and heavy industrial frameworks. Both plates ensure structural integrity, but truss plates are optimized for timber framing, while gusset plates suit metal joinery in complex load-bearing applications.
Installation Methods and Techniques
Truss plates are typically installed by pressing or punching the plate into the timber, using hydraulic presses or specialized pneumatic tools that ensure deep penetration of the teeth for superior load transfer. Gusset plates require bolting or welding to connect structural members, often necessitating precise drilling and alignment for secure fastening. Installation of truss plates is faster and more efficient in prefabricated wooden frameworks, while gusset plates are favored in steel connections where adaptability and customization are crucial.
Strength and Load-Bearing Analysis
Truss plates, typically made from galvanized steel with multiple teeth, provide superior load distribution and tensile strength by embedding deeply into timber, enhancing joint stability under dynamic and shear forces. Gusset plates, often flat steel sheets bolted or welded to structural members, offer flexible connection options but may concentrate stress at bolt holes, potentially reducing overall load-bearing capacity. Structural engineers favor truss plates for integrating with wooden trusses where uniform load transfer is critical, while gusset plates are preferred in steel frameworks requiring tension and compression resistance in specific localized areas.
Cost Considerations: Truss Plate vs Gusset Plate
Truss plates typically offer a more cost-effective solution due to their standardized production and ease of installation, reducing labor expenses compared to custom-fabricated gusset plates. Gusset plates often incur higher costs because of the material thickness required and the complexity involved in fabrication and welding. When budget constraints are critical, truss plates provide a lower-cost alternative without compromising structural integrity in many applications.
Durability and Maintenance Requirements
Truss plates, typically made of galvanized steel, offer superior corrosion resistance and require minimal maintenance compared to gusset plates, which often involve welded or bolted connections prone to rust and fatigue over time. The punched design of truss plates ensures even load distribution and reduces stress concentrations, enhancing long-term durability in structural applications. Maintenance for truss plates primarily involves visual inspections for surface corrosion, while gusset plates may require more frequent checks and repairs due to potential joint degradation.
Industry Standards and Compliance
Truss plates and gusset plates differ significantly in industry standards and compliance requirements, with truss plates typically adhering to ASTM D8058 specifications for timber connections, ensuring proper load transfer and structural integrity. Gusset plates, often made from steel, must comply with AISC (American Institute of Steel Construction) standards, including ASTM A36, to guarantee appropriate strength and durability in metal frame connections. Both plates require strict adherence to respective building codes such as the International Building Code (IBC) and relevant local regulations to ensure safety and performance in construction applications.
Choosing Between Truss Plates and Gusset Plates
Choosing between truss plates and gusset plates depends on specific structural requirements and connection types. Truss plates, made from stamped steel with multiple teeth, offer efficient load transfer in wooden truss joints through direct embedding, while gusset plates, typically thicker and bolted or welded, provide enhanced rigidity in steel frameworks. Engineers must evaluate factors such as material compatibility, load distribution, and installation methods to select the optimal plate for stability and durability.

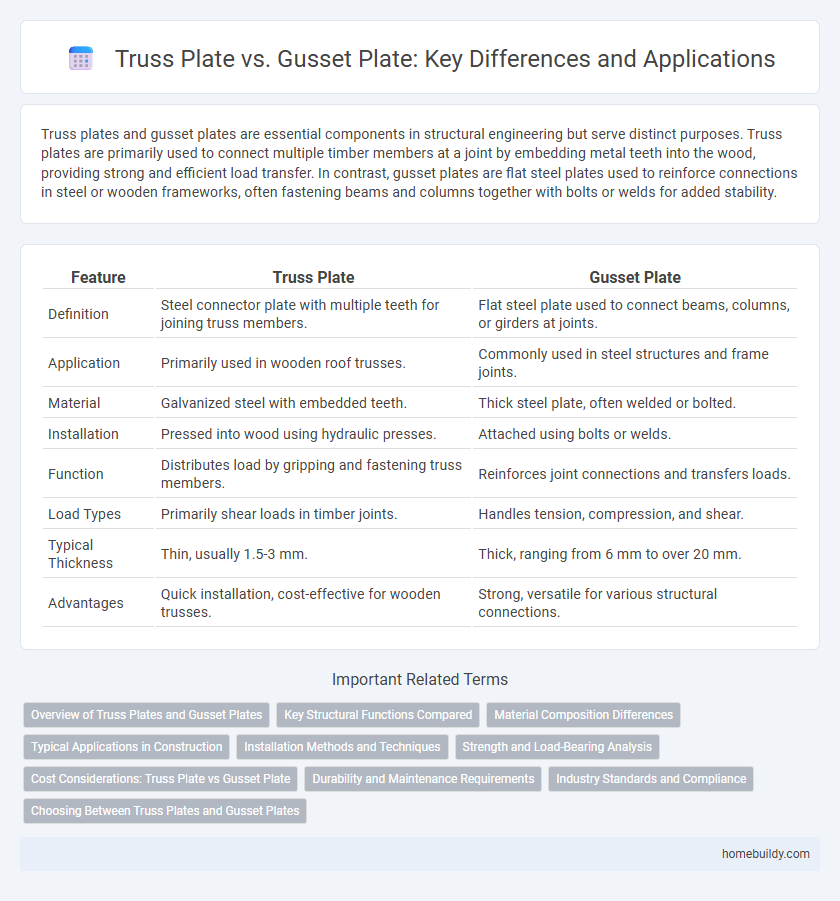

Truss plate vs Gusset plate Infographic
