homebuildy.com Truss plates and Simpson plates serve different structural purposes, with truss plates primarily designed for fastening timber members in roof trusses, providing strong load distribution through their embedded metal teeth. Simpson plates, on the other hand, offer versatile connection solutions for a wider range of construction applications, including joist hangers and anchor ties, with enhanced corrosion resistance and ease of installation. Choosing between truss plates and Simpson plates depends on specific project requirements, load conditions, and structural design preferences.
Table of Comparison
| Feature | Truss Plate | Simpson Plate |
|---|---|---|
| Material | Galvanized steel | Galvanized steel |
| Design | Perforated, flat metal plate with teeth | Stamped metal with specific connector shapes |
| Primary Use | Connecting timber truss members | Structural wood connectors (hangers, straps) |
| Installation | Pressed onto wood using hydraulic press | Fastened with nails or screws |
| Load Capacity | High shear capacity for truss joints | Varies by connector type, typically load-specific |
| Common Applications | Roof trusses, floor trusses | Joist hangers, post bases, angle connectors |
| Advantages | Strong, quick installation, cost-effective | Versatile, easy to install, code-compliant |
| Limitations | Requires specialized pressing equipment | Limited shear strength compared to truss plates |
Overview: Truss Plates and Simpson Plates Compared
Truss plates are typically flat, zinc-coated steel connectors designed to join wood components in structural frameworks, providing high strength and corrosion resistance. Simpson plates, made by Simpson Strong-Tie, are often heavier-gauge metal connectors with specific design variations for enhanced load-bearing capacity and installation versatility in wood construction. Both plates serve similar purposes in reinforcing truss joints, but Simpson plates are known for specialized engineering approvals and a wider product range tailored to diverse building codes and applications.
Material Composition: Truss Plates vs Simpson Plates
Truss plates are typically made from galvanized steel, offering corrosion resistance and high tensile strength essential for structural connections. Simpson plates, often composed of similar high-grade steel alloys, may include specialized coatings or treatments to enhance durability and load-bearing capacity. The material composition of both truss plates and Simpson plates ensures reliable performance in wood framing, but variations in steel grade and finishing can impact their suitability for specific construction applications.
Design Features: Key Differences
Truss plates feature a galvanized steel design with multiple pointed teeth that provide strong, distributed load transfer between wooden members, enhancing joint stability and structural integrity. In contrast, Simpson plates often incorporate pre-punched holes and varied thickness options tailored for specific applications, offering flexibility in fastening methods and load capacities. The key difference lies in truss plates emphasizing efficient load distribution through their tooth design, while Simpson plates focus on versatility and customizable installation for diverse construction needs.
Structural Applications of Each Plate Type
Truss plates, made from galvanized steel with multiple teeth, are primarily used in wood truss fabrication to provide strong, permanent connections under varied load conditions. Simpson plates, often thicker and with fewer, larger teeth, are designed for heavy-duty structural applications including timber framing and steel connections, offering enhanced shear resistance. The choice between truss plates and Simpson plates depends on load requirements, connection type, and material compatibility within construction projects.
Installation Methods and Tools Required
Truss plates typically require a hydraulic press or roller machine for installation to ensure uniform denting and secure fastening, while Simpson plates are designed for simpler, manual nail or screw application using common hand tools like hammers or drills. Truss plate installation demands precise alignment and often specialized equipment to embed the plate teeth into the wood, enhancing structural integrity. Simpson plates offer greater flexibility on-site with minimal tools, making them suitable for quick repairs or custom connections where heavy machinery is unavailable.
Strength and Load-Bearing Capacities
Truss plates typically offer higher strength and superior load-bearing capacities due to their thicker steel and deeper teeth, making them ideal for heavy timber connections. Simpson plates, while also strong, often have shallower teeth and thinner gauge steel, which can limit their ability to handle extremely high loads compared to truss plates. Engineers frequently select truss plates in applications requiring maximum structural integrity and resistance to shear forces.
Building Code Compliance and Certification
Truss plates and Simpson plates differ significantly in building code compliance and certification, with Simpson plates often holding ICC-ES or UL certifications ensuring adherence to stringent international building standards. Truss plates must comply with local building codes and typically require testing per ASTM standards to validate their load-bearing performance. Selecting a plate with recognized certification and documented code compliance is crucial for guaranteeing structural safety and regulatory approval in construction projects.
Durability and Longevity in Construction
Truss plates and Simpson plates differ significantly in durability and longevity within construction projects. Truss plates, typically made from galvanized steel, offer excellent corrosion resistance and maintain structural integrity under heavy loads, making them ideal for long-lasting wood connections. In contrast, Simpson plates, often composed of stainless steel or heavy-gauge materials, provide enhanced resistance to rust and wear, resulting in superior performance in harsh environmental conditions and longer lifespan in outdoor or high-moisture applications.
Cost Analysis: Truss Plate vs Simpson Plate
Truss plates generally offer a lower initial cost compared to Simpson plates due to simpler manufacturing processes and less expensive materials. However, Simpson plates may reduce long-term expenses by providing enhanced durability and corrosion resistance, potentially lowering maintenance and replacement costs. A thorough cost analysis should weigh upfront savings against lifecycle performance to determine the most economical choice for specific construction projects.
Best Use Cases for Truss Plates and Simpson Plates
Truss plates excel in connecting timber components in roof trusses and prefabricated wood frames due to their strong, corrosion-resistant steel design and ease of installation. Simpson plates, known for their varied shapes and heavier gauge steel, are ideal for structural reinforcement in heavy-load-bearing applications and complex framing. Choosing between truss plates and Simpson plates depends on factors such as load requirements, installation environment, and specific structural engineering needs.

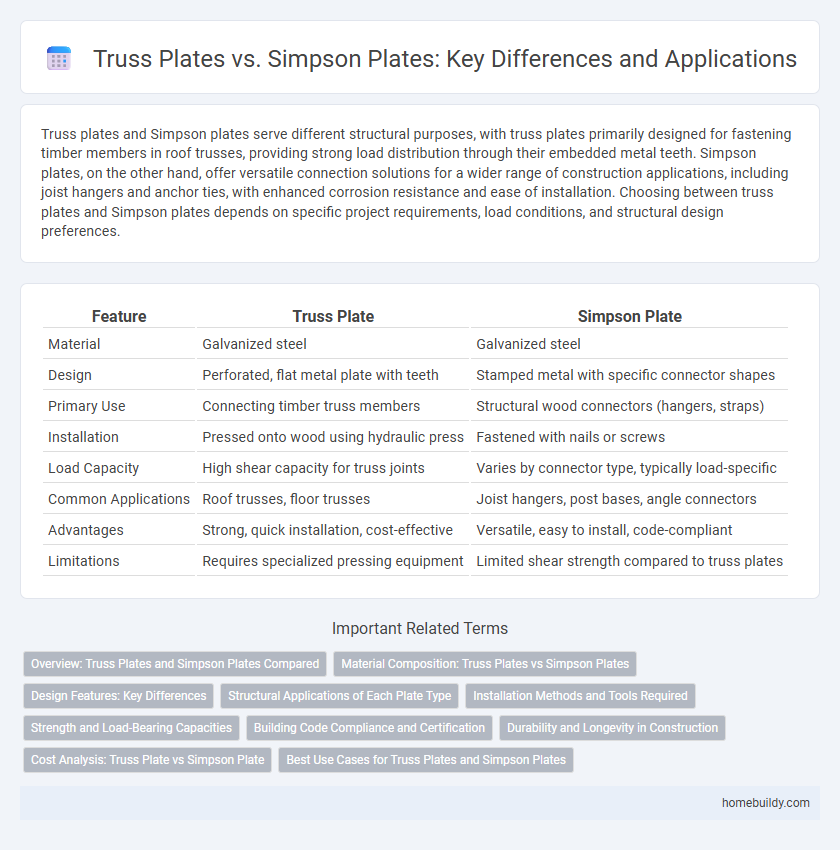

Truss plate vs Simpson plate Infographic
