homebuildy.com Truss plates and connector plates serve different purposes in structural framing, with truss plates specifically designed to join wooden truss members by providing strong, rigid connections through their embedded teeth. Connector plates, on the other hand, offer versatile fastening solutions for various materials and applications, often used to link beams, joists, or other components where custom configurations are required. Understanding the distinction between truss plates and connector plates ensures proper selection and enhanced stability in construction projects.
Table of Comparison
| Feature | Truss Plate | Connector Plate |
|---|---|---|
| Purpose | Joins timber members in roof trusses | Connects wood components in various structures |
| Material | Galvanized steel with pressed teeth | Galvanized or stainless steel, plain or toothed |
| Design | Pressed teeth for grip within wood fibers | Flat or toothed plates for wood or metal connections |
| Installation | Pressed into wood using hydraulic press | Fastened using nails, screws, or bolts |
| Common Use | Prefabricated wood roof trusses | General wood frame framing and metal connections |
| Load Capacity | High tensile and shear strength for truss integrity | Variable, depending on fasteners and plate type |
Truss Plate vs Connector Plate: Overview and Key Differences
Truss plates and connector plates are both essential components in structural framing, but truss plates are specifically designed for securing timber joints in roof trusses, featuring sharp teeth that induce mechanical interlock. Connector plates, while similar in appearance, have broader applications including steel-to-wood and steel-to-steel connections, often engineered with varied thickness and coatings for corrosion resistance. Key differences include their material composition, intended use cases, and load-bearing capacities, with truss plates optimized for wood truss assemblies and connector plates tailored for diverse structural connections.
Materials Used in Truss Plates and Connector Plates
Truss plates are typically made from galvanized steel, known for its durability and resistance to corrosion, ensuring structural integrity in wooden frameworks. Connector plates, while also often crafted from steel, may incorporate variations such as stainless steel or aluminum for specific applications requiring lightweight or enhanced corrosion resistance. The choice of material directly impacts the strength, longevity, and suitability of the plates in construction projects involving trusses and other structural connections.
Manufacturing Processes: Truss Plates vs Connector Plates
Truss plates are manufactured using a high-pressure stamping process that embeds galvanized steel teeth for optimal wood grip, ensuring structural integrity in truss systems. Connector plates, on the other hand, typically undergo a mechanical pressing or punching process, producing flat metal components used primarily for joining various construction elements without embedded teeth. The precision stamping in truss plate production enhances load distribution, while connector plate manufacturing prioritizes versatility and ease of installation.
Structural Performance: Strength and Durability Comparison
Truss plates, typically made from galvanized steel with pointed teeth, provide superior load transfer and resistance to shear forces compared to standard connector plates due to their deep tooth penetration and robust design. Connector plates, while effective for general joining tasks, often lack the enhanced durability and strength characteristics needed for high-stress structural applications found in roof and floor truss systems. The structural performance of truss plates results in improved long-term stability and resistance to deformation under heavy loads, making them the preferred choice in engineered wood construction.
Applications in Construction: Where Each Plate is Used
Truss plates are primarily used in wooden roof truss systems to securely join timber members with a focus on load distribution and structural integrity. Connector plates, often made of metal as well, find broader application in various framing projects, including steel or wood framing, where they serve to join beams, joists, or panels. The choice between truss plates and connector plates depends on the specific structural requirements and materials involved in the construction project.
Installation Methods: Truss Plate vs Connector Plate
Truss plates are typically installed by pressing or stamping them directly into wooden surfaces using hydraulic presses or pneumatic tools, ensuring secure and flush connections within timber frames. Connector plates, in contrast, often require mechanical fastening methods such as screws or nails, allowing for adjustable positioning and easier on-site modifications. Both installation methods aim to enhance structural stability but differ in application speed and customization flexibility.
Cost Efficiency and Availability
Truss plates offer superior cost efficiency compared to connector plates due to their stamped steel design, which reduces manufacturing expenses and installation time. They are widely available through timber suppliers and construction hardware stores, ensuring quick procurement for large-scale projects. Connector plates, often custom-fabricated from heavier gauge metals, incur higher costs and longer lead times, making truss plates the preferred choice for budget-conscious builders.
Industry Standards and Compliance
Truss plates and connector plates both adhere to industry standards such as those established by the American Wood Council (AWC) and the International Code Council (ICC) to ensure structural integrity and safety. Truss plates typically meet the stringent requirements of ASTM A653/A653M for zinc-coated steel, providing reliable corrosion resistance and load-bearing capacity in wood truss assemblies. Connector plates must comply with building codes like the National Design Specification (NDS) for Wood Construction, ensuring consistent performance across various structural applications.
Longevity and Maintenance Considerations
Truss plates, typically made from galvanized steel with embedded teeth, offer superior corrosion resistance and require minimal maintenance compared to traditional connector plates, which may use less durable materials and coatings. The longevity of truss plates is enhanced by their robust design that ensures consistent structural integrity over decades, reducing the need for frequent inspections or replacements. Maintenance considerations favor truss plates in environments prone to moisture or chemical exposure, as their protective galvanization prevents rust and degradation more effectively than standard connector plates.
Choosing the Right Plate for Your Project
Truss plates and connector plates serve distinct purposes in construction, with truss plates specifically designed to join timber components in roof trusses, offering robust load distribution and structural integrity. Connector plates, while similar, are more versatile and commonly used for various wood-to-wood connections beyond trusses, often featuring different metals and hole configurations tailored to specific joint requirements. Selecting the right plate depends on factors such as the project's load demands, timber thickness, and joint type, ensuring optimal strength and durability in the final structure.

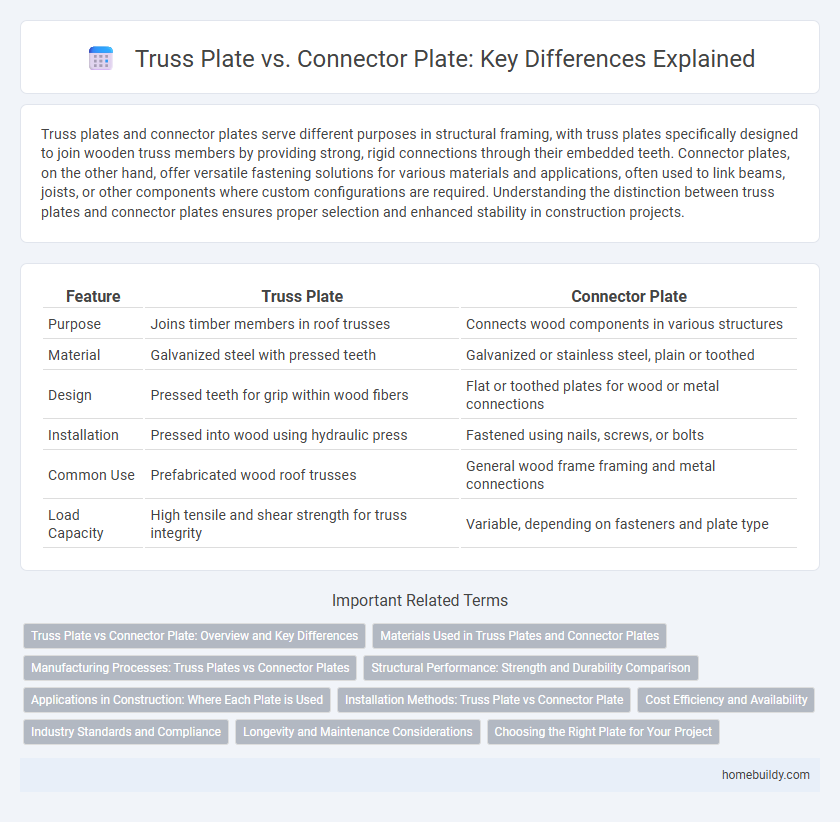

Truss plate vs Connector plate Infographic
