homebuildy.com Truss plates provide strong, rigid connections specifically designed to join wood components in roof trusses, ensuring structural integrity under heavy loads. Framing anchors, while also used in wood construction, serve to attach framing members to foundations or other structural elements, offering flexibility in load direction and increased resistance to lateral forces. Choosing between truss plates and framing anchors depends on the application requirements, with truss plates ideal for internal truss connections and framing anchors suited for securing frames to other structural parts.
Table of Comparison
| Feature | Truss Plate | Framing Anchor |
|---|---|---|
| Purpose | Connects wooden truss members for structural support | Secures framing components to foundation or other structures |
| Material | Galvanized steel with punched teeth | Galvanized steel, often with holes for nails or screws |
| Installation | Pressed into wood surfaces using hydraulic press | Nailed or screwed onto framing members |
| Load Capacity | High; designed for heavy structural loads in trusses | Varies; supports lateral and uplift forces in framing |
| Typical Use | Roof truss assembly | Wall-to-foundation anchoring, beam connections |
| Strength | Rigid, distributes load across connected members | Strong but focused on anchoring rather than full member integration |
Introduction to Truss Plates and Framing Anchors
Truss plates are metal connectors designed to join timber components in roof and floor truss systems, providing structural strength and stability by distributing loads across the truss joints. Framing anchors, on the other hand, secure framing members to foundations or other structural elements, ensuring resistance to uplift, lateral forces, and seismic activity. Both components are essential in construction, with truss plates primarily focused on internal truss integrity while framing anchors reinforce the attachment between framing and supports.
Structural Functions: Truss Plates vs. Framing Anchors
Truss plates primarily provide structural support by connecting wooden members at joints, ensuring load distribution and stability in roof and floor trusses. Framing anchors serve to reinforce connections between framing elements and foundations or other structural components, enhancing resistance to lateral forces such as wind or seismic activity. Both components play crucial roles in maintaining overall structural integrity, with truss plates optimizing internal joint strength while framing anchors secure the building framework against external stresses.
Material Composition and Manufacturing Differences
Truss plates are typically made from galvanized steel with a zinc coating to prevent corrosion, produced through a stamping process that creates integrated teeth for wood fastening. In contrast, framing anchors consist of heavier gauge steel and are often manufactured by cutting and bending steel sheets to form structural connectors with punched holes for fasteners. These material compositions and manufacturing techniques result in truss plates offering a more distributed load transfer in wood joints, while framing anchors provide rigid, localized support for framing assemblies.
Common Applications in Construction
Truss plates are primarily used to join wooden components in roof and floor trusses, ensuring structural integrity through strong, metal plate connectors embedded in timber. Framing anchors serve to secure framing members to foundations, beams, or other structural elements, providing lateral support and resisting uplift forces. Common applications place truss plates in prefabricated truss assemblies for residential and commercial roofing, while framing anchors are essential in securing wall studs and beams in framing systems and foundation connections.
Load Capacity Comparison
Truss plates typically offer higher load capacity than framing anchors due to their larger surface area and multiple embedded teeth, which distribute forces more evenly across wooden joints. Framing anchors, while easier to install and versatile for various applications, often have lower load ratings designed for lateral or uplift forces rather than heavy compression loads. Engineers select truss plates for critical structural connections requiring maximum load-bearing performance, whereas framing anchors serve well in moderate load scenarios.
Installation Methods for Truss Plates vs. Framing Anchors
Truss plates install by pressing the metal connector into wood members using hydraulic or pneumatic presses, ensuring a secure, embedded fit that distributes load evenly across the joint. Framing anchors require mechanical fastening with nails or screws to attach metal brackets to wood framing, focusing on surface attachment and load transfer through fasteners. The truss plate's embedding method reduces installation time and provides uniform load distribution, while framing anchors emphasize flexibility in positioning but rely heavily on fastener quality and spacing.
Durability and Longevity Factors
Truss plates exhibit superior durability and longevity due to their galvanized steel composition, which resists corrosion and withstands heavy loads over time. Framing anchors, often made from thinner metals, may experience faster wear and potential weakening under prolonged stress and exposure to moisture. The robust design and material integrity of truss plates ensure a more reliable connection in structural applications, enhancing overall lifespan.
Building Code Compliance and Standards
Truss plates and framing anchors serve distinct roles in structural connections, with truss plates primarily used to secure timber truss joints while framing anchors connect structural members to foundations or other framing components. Building codes such as the International Building Code (IBC) mandate specific standards for each, with truss plates typically required to meet ANSI/TPI 1 standards for metal connector plates and framing anchors governed by ASTM F 1667 or equivalent. Compliance with these standards ensures structural integrity, load transfer efficiency, and adherence to safety regulations critical for residential and commercial construction.
Cost-Efficiency and Project Considerations
Truss plates offer superior cost-efficiency compared to framing anchors due to their rapid installation and reduced labor costs in large-scale timber projects. While framing anchors provide versatile connection solutions, truss plates excel in engineered wood assembly by ensuring consistent structural integrity and minimizing material waste. Project considerations such as load requirements and design complexity often favor truss plates for standardized roof trusses, optimizing overall budget and construction timelines.
Choosing Between Truss Plates and Framing Anchors
Choosing between truss plates and framing anchors depends on structural requirements and installation methods. Truss plates excel in load distribution for web members in timber trusses, while framing anchors provide robust connection points for framing components under tension or shear forces. Evaluating project-specific loads and fastening techniques ensures optimal performance and safety in wood construction.

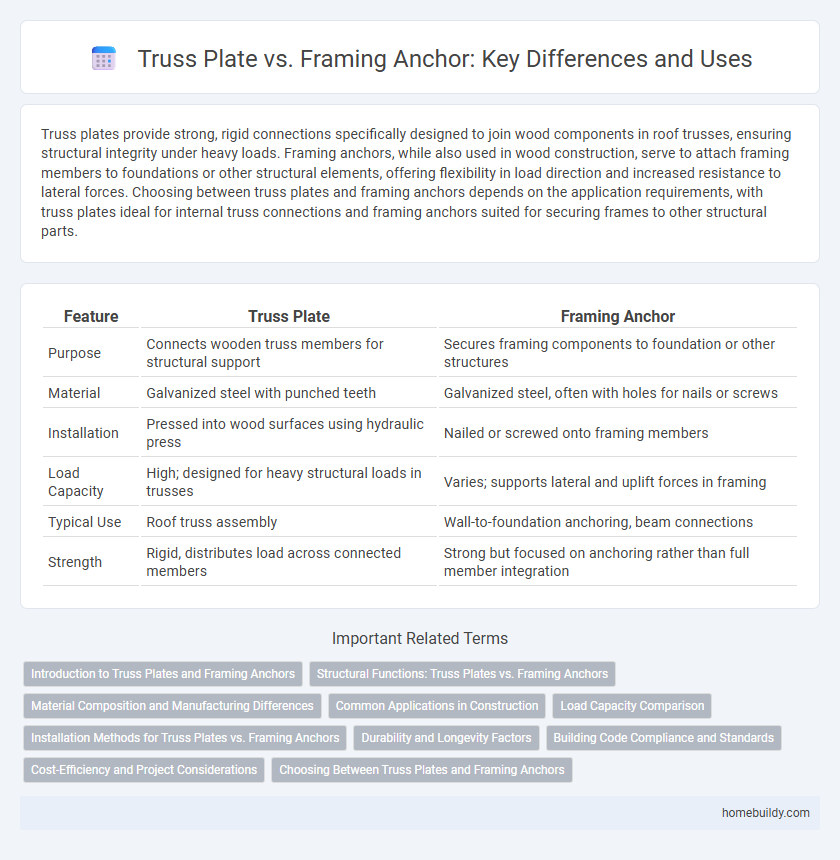

Truss plate vs Framing anchor Infographic
