homebuildy.com Truss plates are specialized metal components designed to join timber elements in roof trusses, providing strong, reliable connections through embedded teeth that grip wood securely. Unlike general metal connectors, which may include brackets, straps, or angles used for various structural applications, truss plates are specifically engineered for efficient load transfer in engineered wood frameworks. Their precision manufacturing and integration into prefabricated truss systems optimize structural integrity and installation speed compared to standard metal connectors.
Table of Comparison
| Feature | Truss Plate | Metal Connector |
|---|---|---|
| Material | Pressed steel with teeth | Steel or galvanized metal |
| Primary Use | Join truss members securely | Connect structural components |
| Installation | Pressed into wood with hydraulic press | Fastened with screws or nails |
| Load Capacity | High, distributes load evenly | Varies by design, typically lower than truss plates |
| Cost | Cost-effective for truss assembly | Varies widely, often higher per connection |
| Typical Applications | Roof trusses, floor trusses | Joists, beams, framing connections |
| Corrosion Resistance | Galvanized steel option available | Often galvanized or stainless steel |
Understanding Truss Plates and Metal Connectors
Truss plates are specialized steel components used to join wooden truss members by embedding the plate's teeth into the wood, providing strong, reliable connections for structural frameworks. Metal connectors, on the other hand, encompass a broader category of hardware including brackets, straps, and hangers designed to reinforce joints between various structural elements beyond trusses. Understanding the distinct applications and load-bearing capabilities of truss plates versus metal connectors is essential for selecting the appropriate fastening system in construction projects.
Material Composition: Truss Plate vs Metal Connector
Truss plates are typically made from galvanized steel with a thin, flat profile featuring a series of sharp teeth designed to embed into wood, providing strong, corrosion-resistant joints. Metal connectors, on the other hand, are often fabricated from heavier gauge steel or stainless steel with varied thicknesses and shapes tailored for specific load-bearing applications and enhanced durability. The choice between truss plates and metal connectors hinges on the required structural performance, corrosion resistance, and compatibility with wood framing materials.
Applications in Construction: Truss Plate vs Metal Connector
Truss plates primarily serve as fasteners in prefabricated wood trusses, ensuring strong joints by embedding into timber for load distribution and structural stability. Metal connectors are versatile in construction, used for framing, joining different materials, and reinforcing corners in both wood and steel structures. The application choice depends on design requirements: truss plates excel in rapid assembly of roof and floor trusses, while metal connectors offer adaptability for varied framing and repair tasks.
Structural Strength Comparison
Truss plates exhibit superior structural strength compared to standard metal connectors due to their larger surface area and multiple pointed teeth that distribute loads evenly across wooden members. Metal connectors typically concentrate stress at specific points, potentially leading to localized wood failure under high loads. The design of truss plates allows for efficient load transfer and improved resistance to shear forces, making them ideal for truss joint reinforcement in heavy structural applications.
Installation Process: Truss Plate vs Metal Connector
Truss plates feature a straightforward installation process involving pressing or nailing them into wooden joints, offering quick and secure connections. Metal connectors require precise aligning and fastening with multiple screws or bolts, often demanding more time and specialized tools. The simplified application of truss plates typically reduces labor costs and accelerates framing, while metal connectors provide adjustable and reusable options for complex assemblies.
Durability and Longevity Analysis
Truss plates, typically made from galvanized steel, offer superior corrosion resistance compared to standard metal connectors, enhancing their durability in various environmental conditions. Metal connectors may experience faster wear and corrosion, especially in moist or outdoor settings, reducing their longevity without specialized coatings. The advanced galvanization process on truss plates ensures extended structural integrity and lifespan, making them a preferred choice for long-term applications in timber framing.
Cost Efficiency: Truss Plate vs Metal Connector
Truss plates offer superior cost efficiency compared to metal connectors due to their simpler manufacturing process and lower material usage, reducing overall project expenses. Metal connectors typically involve higher costs linked to intricate fabrication and additional installation labor. Choosing truss plates can significantly lower upfront costs while maintaining structural integrity in timber framing applications.
Design Flexibility and Customization
Truss plates offer superior design flexibility due to their ability to be easily customized in size, shape, and hole pattern to fit specific structural requirements. Metal connectors provide standardized options that may limit adaptability but ensure consistent performance across common applications. Custom truss plates enable architects and engineers to create complex joint configurations, enhancing structural integrity and aesthetic appeal.
Building Code Compliance and Standards
Truss plates and metal connectors both must comply with rigorous building codes such as the International Building Code (IBC) and standards set by the American Wood Council (AWC). Truss plates are specifically designed and tested to meet ASTM standards (e.g., ASTM A653 for steel quality), ensuring structural integrity in wood truss assemblies. Metal connectors, governed by standards like ASTM A1011 and the National Design Specification (NDS) for Wood Construction, provide versatile connections but require careful installation to meet code requirements and avoid structural failures.
Choosing the Right Connector for Your Project
Truss plates provide strong, reliable joints specifically designed for timber framing, ensuring optimal load distribution and structural integrity. Metal connectors offer versatile solutions for various materials and complex angles but may require additional fastening for secure attachment. Selecting the right connector depends on the project's material, load requirements, and installation complexity, with truss plates ideal for timber trusses and metal connectors better suited for mixed-material or custom configurations.

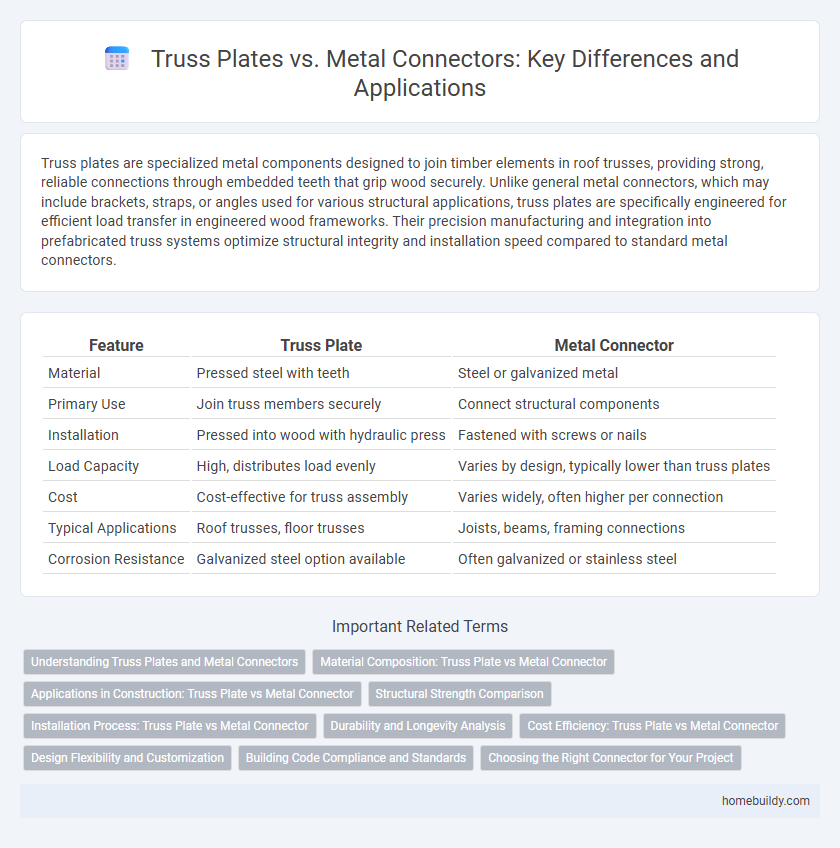

Truss plate vs Metal connector Infographic
