homebuildy.com Stud anchors provide superior load-bearing capacity and stability compared to sleeve anchors, making them ideal for heavy-duty applications. Unlike sleeve anchors, stud anchors are designed for permanent, flush installations that minimize movement and enhance durability. Their threaded design allows for easy removal and replacement of fixtures, improving maintenance efficiency over sleeve anchors.
Table of Comparison
| Feature | Stud Anchor | Sleeve Anchor |
|---|---|---|
| Design | Threaded stud with expansion mechanism | Metal sleeve that expands within the hole |
| Material | Steel or stainless steel | Steel with zinc or stainless coating |
| Installation | Insert stud, tighten nut to expand | Insert sleeve, tighten bolt to expand |
| Load Capacity | High shear and tensile strength | Moderate tensile strength, suitable for medium loads |
| Suitable Applications | Heavy-duty anchoring, machinery, structural support | Medium-duty anchoring, fixtures, conduit fastenings |
| Base Materials | Concrete, masonry | Concrete, brick, block |
| Advantages | Strong hold, reusable stud | Easy installation, versatile use |
| Disadvantages | Requires precise installation torque | Lower load capacity, not reusable |
Introduction: Stud Anchor vs Sleeve Anchor
Stud anchors provide superior load-bearing capacity and are ideal for heavy-duty fastening in concrete and masonry. Sleeve anchors offer versatility with ease of installation and are suitable for medium-duty applications in various base materials. Comparing stud anchors versus sleeve anchors highlights differences in strength, installation method, and ideal use cases for construction and industrial projects.
What is a Stud Anchor?
A stud anchor is a type of fastener designed to secure heavy loads into concrete or masonry. It consists of a threaded stud and an expansion mechanism that grips the base material when installed. Stud anchors offer superior load capacity and durability compared to sleeve anchors, making them ideal for structural applications.
What is a Sleeve Anchor?
A sleeve anchor is a type of fastener designed for use in solid materials such as concrete, brick, or stone, featuring a cylindrical metal sleeve that expands when the bolt is tightened. Unlike stud anchors, which have a threaded stud projecting from the sleeve for direct attachment, sleeve anchors provide a versatile and adjustable fastening solution due to their expandable sleeve mechanism. Sleeve anchors are commonly used for medium-duty applications requiring secure anchoring where shear and tensile forces are moderate.
Key Differences Between Stud Anchors and Sleeve Anchors
Stud anchors are best suited for heavy-duty applications requiring high load capacity, as they embed directly into concrete, providing superior strength and durability. Sleeve anchors expand within a drilled hole to grip a wider range of base materials, offering versatility but generally lower tensile strength compared to stud anchors. Key differences include installation methods, load-bearing capacity, and material compatibility, with stud anchors preferred for structural support and sleeve anchors for medium-duty fastening tasks.
Load Capacity: Stud Anchor vs Sleeve Anchor
Stud anchors provide higher load capacity compared to sleeve anchors due to their direct mechanical bond with the base material, offering superior pull-out resistance. Sleeve anchors rely on expansion within the drilled hole, which can result in lower load capacity under tensile and shear forces. For heavy-duty applications demanding maximum load performance, stud anchors are generally the preferred choice over sleeve anchors.
Installation Process Comparison
Stud anchors require drilling a precise hole followed by cleaning and inserting the anchor before tightening the stud, ensuring a secure embedment in concrete or masonry. Sleeve anchors expand against the hole wall as the nut is tightened, offering a simpler installation with fewer preparation steps but less control over embedment depth. Both anchors demand accurate hole size matching their diameters, but stud anchors provide superior load distribution due to the threaded stud's full engagement within the material.
Material and Corrosion Resistance
Stud anchors are typically made from high-strength steel with a zinc or epoxy coating, offering superior corrosion resistance in various environments compared to sleeve anchors, which often use lower-grade steel with minimal protective coatings. The material composition of stud anchors enhances durability and performance, especially in outdoor or marine applications where exposure to moisture accelerates corrosion. Sleeve anchors may degrade faster under such conditions due to their limited corrosion-resistant properties, reducing their overall lifespan and reliability.
Applications: Where to Use Stud Anchors vs Sleeve Anchors
Stud anchors are ideal for heavy-duty applications in concrete, such as securing structural steel, machinery, or heavy equipment, due to their strong pull-out resistance and load-bearing capacity. Sleeve anchors are better suited for lighter to medium loads in materials like brick, block, or concrete, often used for attaching fixtures like handrails, window frames, or shelving. Choosing stud anchors is essential in high-stress environments requiring maximum holding power, while sleeve anchors excel in versatility and ease of installation for moderate load applications.
Pros and Cons of Each Anchor Type
Stud anchors offer superior load capacity and improved resistance to dynamic forces, making them ideal for heavy-duty structural applications; however, they require larger and more precise holes, increasing installation complexity and time. Sleeve anchors provide versatile use in a variety of base materials and easier installation due to their expansion mechanism, but often deliver lower pull-out strength and are less effective under vibration or shear loads. Selecting between stud and sleeve anchors depends on the specific load requirements and base material conditions, balancing installation ease against performance demands.
Choosing the Right Anchor for Your Project
Stud anchors provide superior shear strength and are ideal for heavy-duty applications requiring high load capacity, while sleeve anchors are versatile and suited for medium-duty tasks in concrete, brick, or block materials. Selecting the right anchor depends on the substrate type, load requirements, and installation environment; stud anchors are preferred for structural support and permanent fixtures, whereas sleeve anchors offer ease of installation and adaptability. Evaluating factors such as expansion mechanism, corrosion resistance, and installation torque ensures optimal performance and durability for your specific project needs.

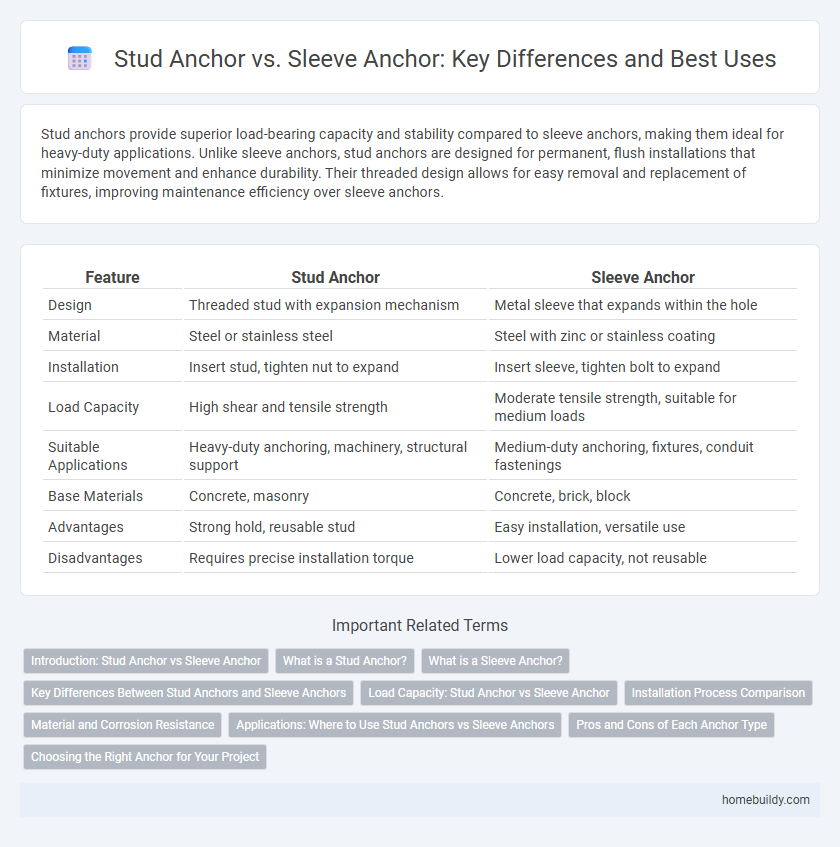

Stud anchor vs sleeve anchor Infographic
