homebuildy.com Stud anchors provide superior load-bearing capacity and are often preferred for heavy-duty applications, while drop-in anchors offer easy installation and versatility for medium-duty tasks. Stud anchors require pre-drilled holes and mechanical expansion to secure tightly, whereas drop-in anchors use an internal expansion mechanism activated by a setting tool. Choosing between stud anchors and drop-in anchors depends on the specific load requirements, installation conditions, and the type of substrate involved.
Table of Comparison
| Feature | Stud Anchor | Drop-In Anchor |
|---|---|---|
| Installation | Requires pre-drilled hole and hammer setting | Installed in pre-drilled hole; expanded by setting tool |
| Material | High-strength steel | Durable steel alloy |
| Load Capacity | High tensile and shear strength | Medium to high load capacity |
| Use Case | Heavy-duty anchoring in concrete | Medium-duty anchoring in concrete |
| Reusability | Anchor removed with difficulty; often permanent | Removable with proper tools |
| Corrosion Resistance | Galvanized or stainless steel options | Available in stainless steel versions |
| Cost | Generally higher due to strength and durability | Moderate cost |
Understanding Stud Anchors and Drop-in Anchors
Stud anchors offer superior load-bearing capacity by expanding against the concrete when tightened, making them ideal for heavy-duty applications. Drop-in anchors are internally threaded and require installation by setting them into a drilled hole, providing a flush finish preferred for lighter to medium loads. Choosing between stud and drop-in anchors depends on the specific structural requirements and installation conditions.
Key Differences Between Stud Anchors and Drop-in Anchors
Stud anchors offer superior load-bearing capacity and are ideal for heavy-duty applications, whereas drop-in anchors provide easier installation in solid concrete but support moderate loads. Stud anchors require welding or threading for securing components, while drop-in anchors utilize an expansion mechanism to anchor firmly within pre-drilled holes. The choice depends on factors like installation environment, load requirements, and the type of base material involved.
Installation Process: Stud Anchor vs Drop-in Anchor
Stud anchors offer a straightforward installation process by drilling a hole, inserting the anchor, and tightening the nut to secure the fixture, eliminating the need for sleeves or expansion components. Drop-in anchors require drilling, inserting the anchor, and using a setting tool to expand the anchor inside the concrete, which can be more time-consuming and requires precise tool application. Stud anchors typically provide faster installation with less specialized equipment compared to the drop-in anchors' more involved expansion procedure.
Load Capacity and Performance Comparison
Stud anchors generally offer higher load capacity and superior performance in heavy-duty applications compared to drop-in anchors. Their design allows for direct embedment into the concrete, providing greater shear and tensile strength, making them ideal for structural supports and seismic resistance. Drop-in anchors perform well in lighter load scenarios but typically exhibit lower pull-out strength and reduced reliability under dynamic loads.
Material Compatibility: Which Substrates Suit Each Anchor?
Stud anchors, typically made from stainless steel or carbon steel, are best suited for concrete and masonry substrates due to their robust corrosion resistance and high load-bearing capacity. Drop-in anchors, often manufactured from zinc-plated steel or stainless steel, are designed for use in solid concrete and provide secure anchorage in heavier-duty applications where flush installation is required. Material compatibility with substrates ensures optimal performance: stud anchors excel in dense materials like stone and brick, while drop-in anchors perform well in solid cast concrete but are less effective in softer or hollow substrates.
Common Applications for Stud and Drop-in Anchors
Stud anchors are commonly used in structural steel connections, heavy machinery installations, and securing equipment where high load capacity and vibration resistance are essential. Drop-in anchors are frequently applied for medium-duty fixtures such as electrical boxes, handrails, and lightweight machinery supports in concrete substrates. Both anchors serve critical roles, but stud anchors excel in heavy-duty applications, while drop-in anchors are preferred for versatility in lighter, non-structural attachments.
Pros and Cons of Stud Anchors
Stud anchors offer superior load-bearing capacity and corrosion resistance compared to drop-in anchors, making them ideal for heavy-duty applications in concrete structures. Their installation requires precise drilling and setting, which may increase labor time and cost, but they provide a more secure and vibration-resistant fastening. However, they are less adaptable for retrofit tasks where ease of installation and minimal surface damage are priorities.
Pros and Cons of Drop-in Anchors
Drop-in anchors provide a flush installation ideal for securing medium to heavy loads in concrete, offering strong holding power with minimal surface disturbance. They can be quickly installed without pre-assembled studs, reducing preparation time compared to stud anchors. However, drop-in anchors may be less suitable for overhead or tension-heavy applications due to potential pullout risks and require precise hole depth for optimal performance.
Cost Comparison: Stud Anchors vs Drop-in Anchors
Stud anchors generally offer a lower initial cost compared to drop-in anchors due to simpler installation and lower material expenses. Drop-in anchors require precise drilling and setting tools, which increase labor costs and installation time. When factoring long-term durability and maintenance, stud anchors often provide better value for budget-conscious construction projects.
Choosing the Right Anchor for Your Project
Stud anchors offer superior load-bearing capacity and ease of installation compared to drop-in anchors, making them ideal for heavy-duty fastening in concrete structures. Drop-in anchors, while versatile and flush-mounted, may require more precise installation tools and are better suited for medium-load applications. Selecting the right anchor depends on project requirements such as load intensity, concrete thickness, and installation environment to ensure optimal structural integrity.

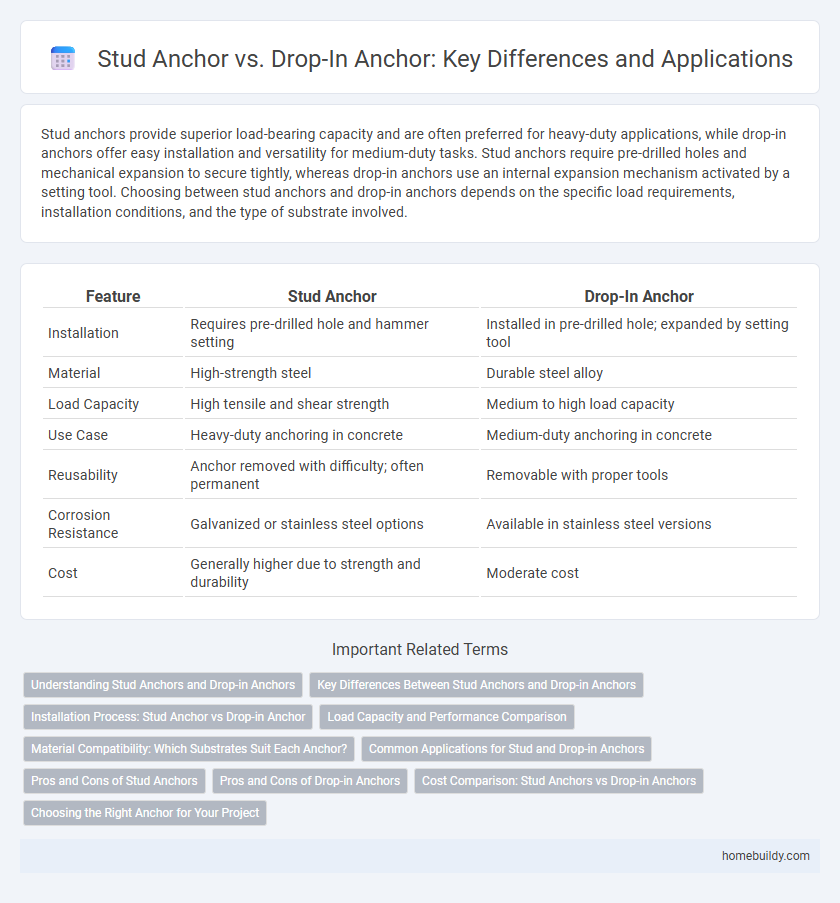

Stud anchor vs drop-in anchor Infographic
