homebuildy.com The sill plate is the horizontal timber anchored to the foundation, providing a base for the wall framing, while the wall plate sits atop the wall studs to support the roof or upper floors. Sill plates must be treated for moisture resistance since they contact the foundation, whereas wall plates are typically placed inside the structure and don't face constant exposure. Both components are essential for structural stability but serve distinct roles in load distribution and framing alignment.
Table of Comparison
| Feature | Sill Plate | Wall Plate |
|---|---|---|
| Location | Bottom of wall frame, attached to foundation | Top of wall frame, below roof or upper floor |
| Function | Anchors wall to foundation, provides structural base | Supports roof or upper structures, ties wall studs |
| Material | Treated lumber to resist moisture and decay | Untreated or standard lumber |
| Installation | Secured with anchor bolts to concrete or masonry | Nailed or bolted atop wall studs |
| Structural Role | Key for load transfer from walls to foundation | Distributes loads from roof/floor to studs |
Understanding the Role of Sill Plates and Wall Plates
Sill plates anchor the building framework to the foundation, providing a critical interface for load transfer and moisture barrier functionality. Wall plates, positioned atop the sill plates, serve as the horizontal support for wall studs, distributing structural loads evenly across the building. Understanding the distinct roles of sill plates in foundation attachment and wall plates in load distribution ensures proper framing and structural integrity in construction projects.
Key Differences Between Sill Plate and Wall Plate
The sill plate is a horizontal timber positioned directly on the foundation, serving as the base for wall framing, while the wall plate sits atop the wall studs providing structural support for the roof or upper floors. The sill plate is typically treated lumber to resist moisture and insects as it contacts the concrete foundation, contrasting with the wall plate, which often uses standard framing lumber. Functionally, the sill plate anchors the entire building to the foundation, whereas the wall plate distributes loads from the roof or upper levels evenly across the walls.
Materials Commonly Used for Sill Plates vs Wall Plates
Sill plates are typically made from pressure-treated lumber to resist moisture and decay, ensuring a strong, durable foundation connection. Wall plates, on the other hand, are commonly constructed from standard lumber such as SPF (spruce-pine-fir) or Douglas fir, as they are usually positioned in drier, less exposed areas. The use of pressure-treated wood for sill plates is critical in preventing rot and termite damage where the structure meets the foundation.
Installation Process: Sill Plate Compared to Wall Plate
The installation process of a sill plate involves fastening it directly to the foundation, typically using anchor bolts embedded in the concrete to ensure stability and prevent shifting. In contrast, wall plates, also known as top plates, are installed horizontally on top of wall studs to provide a base for the roof or upper floors, often secured with nails or screws rather than bolts. Proper alignment and leveling of the sill plate are critical for structural integrity, whereas wall plate installation prioritizes precise alignment with interior walls and ceiling components.
Structural Importance of Sill Plates Versus Wall Plates
Sill plates serve as the foundational horizontal lumber anchored directly to the building's concrete or masonry foundation, providing critical structural stability by distributing loads from the walls to the foundation and resisting moisture and insect damage. Wall plates, also known as top plates, are positioned at the top of wall studs to secure roof and floor framing, playing a vital role in maintaining wall alignment and structural integrity. The structural importance of sill plates lies in their role as the primary interface between the foundation and the framing, while wall plates ensure load transfer within the superstructure and contribute to the overall rigidity of the building frame.
Moisture Resistance: Sill Plate vs Wall Plate
Sill plates are typically treated with preservatives or made from moisture-resistant materials like pressure-treated wood to withstand ground moisture and prevent rot at the base of a structure. Wall plates, positioned higher up in framing, generally do not require the same level of moisture resistance since they are less exposed to damp conditions. Using a sill plate with enhanced moisture resistance significantly improves the durability and longevity of the foundation by providing a protective barrier between the concrete slab and the wooden framing.
Code Requirements for Sill Plates and Wall Plates
Sill plates must comply with building codes such as the International Residential Code (IRC), requiring pressure-treated lumber or naturally decay-resistant materials when in contact with concrete or masonry to prevent rot and pest damage. Wall plates, including top and bottom plates, are subject to specific sizing and fastening requirements to ensure structural integrity, but generally do not require pressure-treated wood unless they rest on concrete or are exposed to moisture. Both sill plates and wall plates must meet seismic and anchoring standards outlined in local codes to ensure proper load transfer and resistance to lateral forces.
Cost Considerations: Sill Plate Compared to Wall Plate
Sill plates typically cost less than wall plates due to the common use of pressure-treated lumber to resist moisture damage, which balances affordability with durability. Wall plates, often crafted from higher-grade or finished wood, may increase material expenses but provide enhanced structural support and aesthetic appeal. Comparing costs should also consider installation complexity and long-term maintenance, where sill plates offer budget-friendly solutions for foundational elements.
Longevity and Maintenance of Sill Plates and Wall Plates
Sill plates, typically made from pressure-treated lumber, offer superior resistance to moisture and insect damage compared to standard wall plates, enhancing their longevity in foundation contact zones. Wall plates, often constructed from untreated wood, require more frequent maintenance to prevent rot and structural degradation in humid conditions. Proper installation and regular inspections of sill plates significantly reduce maintenance needs, ensuring long-term structural stability.
Choosing Between Sill Plate and Wall Plate for Your Project
Selecting between a sill plate and a wall plate hinges on their distinct roles in construction; the sill plate anchors the structure to the foundation, providing stability and moisture resistance, while the wall plate serves as a horizontal support for wall framing. For projects involving a concrete foundation, a treated lumber sill plate is essential to prevent rot and insect damage, whereas a wall plate is typically used on top of framed walls to distribute loads evenly. Understanding the specific application and environmental factors ensures choosing the right plate for durability and structural integrity.

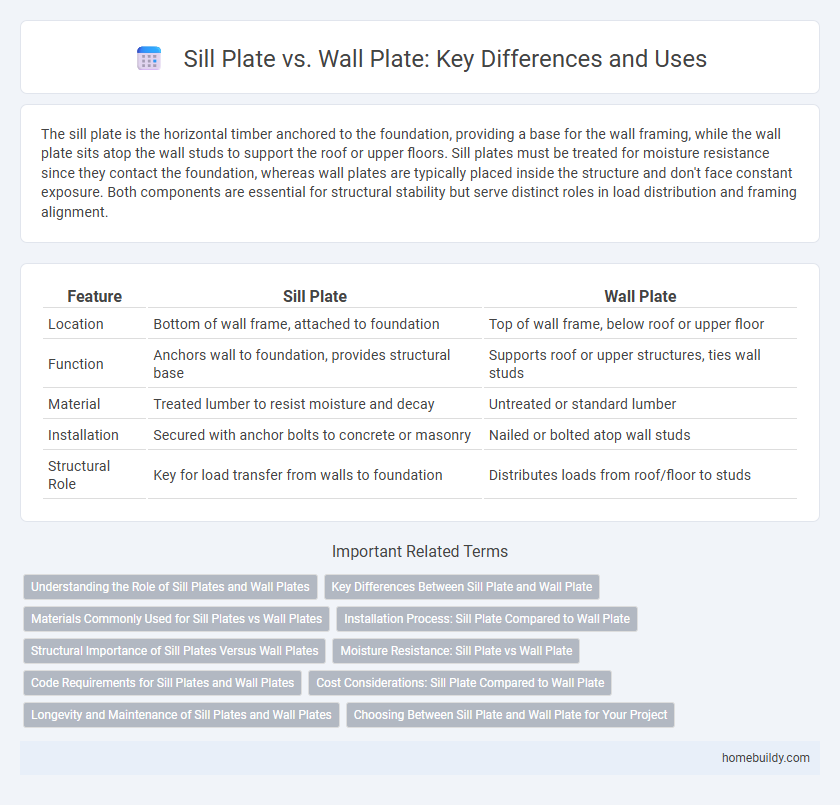

Sill plate vs Wall plate Infographic
