homebuildy.com The sill plate serves as the critical base framing member anchored directly to the foundation, providing a stable surface for wall construction. Anchor bolts secure the sill plate to the concrete foundation, ensuring structural stability and resistance to lateral forces such as wind or seismic activity. Proper installation and spacing of anchor bolts are essential to maintain the integrity and safety of the building's framework.
Table of Comparison
| Feature | Sill Plate | Anchor Bolt |
|---|---|---|
| Definition | Wooden or metal base plate secured to the foundation wall. | Steel bolts embedded in concrete to secure sill plates to foundation. |
| Material | Typically pressure-treated lumber or metal. | Steel, often galvanized for corrosion resistance. |
| Purpose | Provides a stable base for wall framing on foundation. | Anchors sill plate firmly to the concrete foundation. |
| Installation Location | Directly on top of the foundation wall. | Embedded vertically into concrete foundation before pouring. |
| Load Transfer | Distributes structural loads to foundation. | Resists uplift and lateral forces to prevent movement. |
| Common Usage | Framing base in wood and steel construction. | Seismic and wind load resistance in building codes. |
| Building Code Reference | IRC Section R602.3 (Sill Plates) | IBC Section 1908 (Anchor Bolts) |
Understanding Sill Plates and Anchor Bolts: Key Differences
Sill plates serve as the foundational wood framing that sits directly on the concrete foundation, providing a base for wall construction, while anchor bolts secure the sill plates to the foundation, preventing lateral movement. Understanding the key differences highlights that sill plates are structural framing components, whereas anchor bolts are fasteners designed to resist seismic and wind forces. Proper installation of both elements is critical for structural stability and compliance with building codes.
Roles of Sill Plates in Structural Framing
Sill plates serve as the crucial interface between a building's foundation and its framing system, providing a stable base that anchors walls and distributes structural loads evenly. They are typically treated lumber secured directly to the foundation with anchor bolts, which ensure resistance to lateral and uplift forces during seismic or wind events. Unlike anchor bolts that primarily provide mechanical fastening, sill plates also function as a moisture barrier and help prevent termite intrusion, contributing to the overall durability and integrity of structural framing.
The Purpose and Function of Anchor Bolts
Anchor bolts serve as critical connectors that secure the sill plate to the concrete foundation, preventing lateral movement and uplift caused by winds or seismic forces. Their primary function is to ensure structural stability by transferring loads from the wood framing to the foundation, maintaining the building's integrity. Unlike the sill plate, which acts as a wood base for framing, anchor bolts provide the mechanical fastening needed to resist external forces and enhance overall safety.
Materials Used: Sill Plate vs Anchor Bolt
Sill plates are typically made from pressure-treated wood, designed to resist moisture, decay, and insect damage where the structure meets the foundation. Anchor bolts are usually constructed from galvanized or stainless steel, providing strong corrosion resistance and secure attachment of the sill plate to the concrete foundation. The choice of materials ensures durability and stability by preventing wood rot in sill plates and maintaining structural integrity through the robust metal of anchor bolts.
Installation Methods: Sill Plate vs Anchor Bolt
Sill plate installation involves securely fastening treated lumber directly to the foundation using construction adhesive and nails or screws, ensuring a level and stable base for framing. Anchor bolts are typically embedded in concrete during the foundation pour or set into epoxy afterward, providing strong, permanent connections that resist lateral and uplift forces. Proper installation of sill plates requires precise alignment with anchor bolts to create a secure tie between the wooden structure and the foundation, preventing shifts and providing structural integrity.
Building Code Requirements for Sill Plates and Anchor Bolts
Building codes require sill plates to be securely anchored to the foundation with anchor bolts spaced typically 6 to 8 feet apart, ensuring structural stability during seismic or wind events. The International Residential Code (IRC) mandates that anchor bolts must embed at least 7 inches into concrete or grout and be of minimum 1/2-inch diameter to resist lateral forces. Proper installation following these specifications prevents uplift and shear failures, maintaining the integrity of the building envelope.
Connection Techniques: How Sill Plates Link with Anchor Bolts
Sill plates are typically fastened to the foundation using anchor bolts embedded in concrete to ensure structural stability and resistance to seismic forces. The connection involves positioning the sill plate over the anchor bolts and securing it with washers and nuts, creating a robust link between the wood framing and the foundation. Proper placement and spacing of anchor bolts, often 6 to 12 inches from corners and spaced no more than 6 feet apart, are critical for effective load transfer and compliance with building codes.
Common Mistakes in Sill Plate and Anchor Bolt Installation
Common mistakes in sill plate and anchor bolt installation often include improper spacing and misalignment, which can compromise structural integrity. Failing to secure anchor bolts correctly in the sill plate may lead to insufficient resistance against seismic and wind forces. Additionally, using incorrect bolt length or not embedding bolts deeply enough reduces the connection's strength and durability.
Cost Comparison: Sill Plate vs Anchor Bolt
Sill plates typically cost less than anchor bolts due to simpler installation and lower material expenses. Anchor bolts require precise placement and more expensive steel, increasing overall project costs. Choosing sill plates can reduce initial expenses but may affect long-term structural stability compared to anchor bolts.
Longevity and Maintenance: Sill Plates and Anchor Bolts
Sill plates, typically made of treated wood, provide a stable base for framing but require regular inspection and maintenance to prevent rot and termite damage, impacting longevity. Anchor bolts, usually made of galvanized steel, enhance structural stability by securing sill plates to the foundation and offer greater durability with minimal upkeep due to their corrosion-resistant properties. Combining treated sill plates with properly installed anchor bolts extends the lifespan of the foundation connection while reducing maintenance needs.

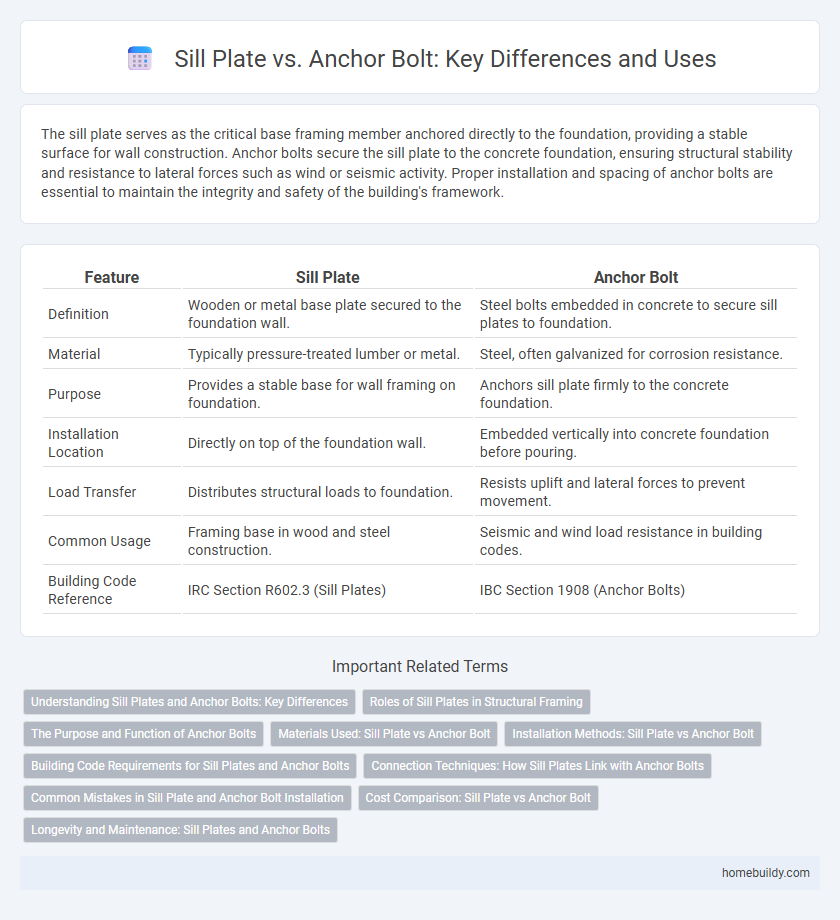

Sill plate vs Anchor bolt Infographic
