homebuildy.com A sill plate is the horizontal wood member anchored directly to the foundation, serving as the base for wall framing, whereas a ledger board is attached to an existing structure to support floor joists or decks. The sill plate provides a critical connection between the foundation and the building framework, ensuring stability and load transfer. In contrast, the ledger board acts as a support for extensions or additions, making it essential for deck construction and remodeling projects.
Table of Comparison
| Feature | Sill Plate | Ledger Board |
|---|---|---|
| Definition | Horizontal wood member anchored to the foundation wall. | Horizontal wood board attached to a structural frame for supporting floor joists. |
| Function | Transfers load from the frame to the foundation. | Supports and secures floor joists or decking. |
| Location | Bottom of the wall, directly on foundation. | Attached to existing framed walls or beams. |
| Material | Treated lumber to resist moisture and rot. | Typically treated lumber for outdoor durability. |
| Installation | Bolted to foundation using anchor bolts. | Nailed or bolted to framing members. |
| Purpose | Base plate for wall framing; creates a stable, level surface. | Provides a ledger support for joists or decks. |
| Load Bearing | Primary load transfer to foundation. | Supports lateral loads of attached structures. |
Introduction to Sill Plates and Ledger Boards
Sill plates are horizontal framing members anchored to the foundation, providing a secure base for wall studs and evenly distributing structural loads. Ledger boards are attached to existing structures, such as decks or stairs, serving as a support point for joists or other framing components. Understanding the distinct roles of sill plates in foundation connection and ledger boards in structural attachment is essential for proper framing and load management in construction.
Defining Sill Plates: Purpose and Function
Sill plates are horizontal wooden members anchored directly to the foundation, serving as the base for wall framing and providing a stable interface between the foundation and the structure. Unlike ledger boards, which attach to existing framing to support decks or floors, sill plates distribute structural loads evenly while resisting moisture and pest intrusion. Their primary function is to secure the building frame to the foundation, ensuring structural integrity and alignment throughout the construction process.
Understanding Ledger Boards: Key Roles in Construction
Ledger boards serve as critical horizontal supports attached to existing structures, providing a secure anchoring point for decks or flooring systems, whereas sill plates are the foundational wood pieces anchored directly to the concrete foundation in building framing. Understanding that ledger boards must be properly fastened with corrosion-resistant hardware and flashing is essential to prevent water infiltration and structural failure. Their precise installation ensures stability and load transfer between the deck and the main building framework, distinguishing them fundamentally from sill plates which form the base of wall framing.
Material Differences: Sill Plate vs. Ledger Board
Sill plates are typically made from pressure-treated lumber to resist moisture and decay since they are in direct contact with the foundation, whereas ledger boards are often standard dimensional lumber, as they are attached to existing structures and less exposed to ground-level moisture. The choice of material impacts durability, with sill plates requiring enhanced rot resistance to maintain structural integrity over time. Understanding these material differences ensures proper selection for their distinct roles in framing and structural support.
Installation Methods: Comparing Sill Plates and Ledger Boards
Sill plates are anchored directly to the foundation using anchor bolts, providing a secure base for wall framing, while ledger boards are fastened to existing structures such as decks or floors utilizing lag screws or bolts for added support. Installation of sill plates requires precise measurement and placement to ensure a level surface for the framing, whereas ledger boards demand careful alignment and waterproof flashing to prevent water infiltration and structural damage. Both methods call for corrosion-resistant fasteners and compliance with local building codes to guarantee long-term stability and safety.
Structural Significance: Where Each Fits in Building Frames
The sill plate anchors the building frame to the foundation, providing a critical base for wall studs and ensuring load distribution to the foundation. In contrast, the ledger board attaches to an existing structure to support extended elements like decks, transferring loads horizontally rather than vertically. Understanding the distinct roles of sill plates and ledger boards is essential for maintaining structural integrity and enhancing building frame stability.
Common Applications: Sill Plates vs. Ledger Boards
Sill plates serve as the foundational wood framing anchored directly to the concrete slab or foundation wall, providing a base for wall studs in residential and commercial construction. Ledger boards are attached to existing structures to support decks, stairs, or other additions by transferring loads to the house framing. While sill plates are essential for new construction framing, ledger boards are primarily used in remodeling and outdoor projects where attaching to existing structures is necessary.
Building Codes and Compliance Considerations
Sill plates, required by building codes such as the International Residential Code (IRC), serve as the foundational wood members anchored to the concrete foundation, providing a critical interface for wall framing. Ledger boards, while commonly used for deck attachments, must meet specific code requirements including proper flashing and structural fastening to prevent water intrusion and ensure load transfer. Compliance with local building codes mandates that sill plates use pressure-treated lumber or other approved materials to resist decay, whereas ledger boards require verified attachment to the band joist with approved fasteners to maintain structural integrity.
Pros and Cons: Sill Plate vs. Ledger Board
Sill plates provide a secure base for wall framing directly anchored to the foundation, enhancing structural stability and resistance to shear forces, but they require precise installation to prevent moisture intrusion. Ledger boards offer flexibility for attaching decks or additions to existing structures, supporting load transfer effectively while making future modifications easier; however, improper flashing or fastening can lead to water damage and reduced durability. Choosing between a sill plate and a ledger board depends on the specific application, balancing factors like load requirements, exposure to elements, and ease of maintenance.
Choosing the Right Component for Your Project
Choosing between a sill plate and a ledger board depends on the structural needs of your project; sill plates serve as the foundational base anchoring the frame to the concrete slab, providing stability and load distribution. Ledger boards are typically used for attaching decks or additional structures to an existing building, requiring proper flashing and waterproofing to prevent water damage. Assess project requirements like load support, connection type, and exposure to elements to select the right component for durability and safety.

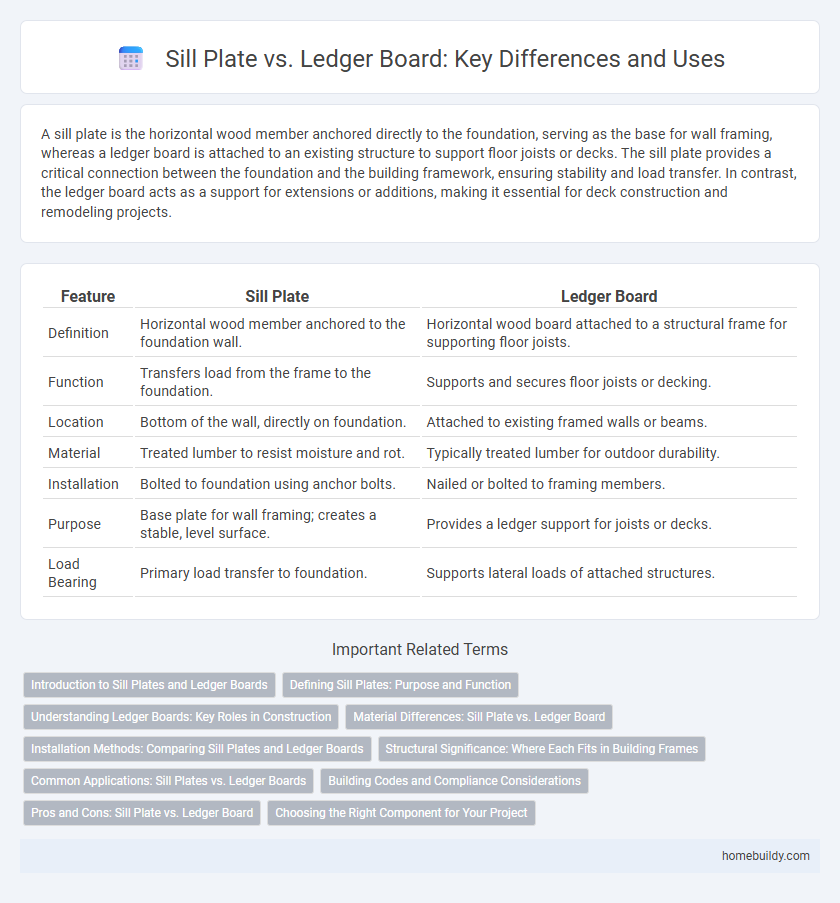

Sill plate vs Ledger board Infographic
