homebuildy.com A sill pan is installed beneath window or door frames to prevent water from seeping into the wall structure, effectively directing moisture away from the building envelope. A drip cap is a protective molding placed above windows or doors, designed to deflect rainwater and prevent it from running down the face of the structure. Both components enhance water management but serve distinct roles in maintaining a dry, durable building facade.
Table of Comparison
| Feature | Sill Pan | Drip Cap |
|---|---|---|
| Purpose | Prevents water infiltration under window sills and door thresholds | Diverts rainwater away from window and door tops |
| Location | Installed beneath the window or door frame | Installed above the window or door frame |
| Material | Metal or plastic flashing, often self-adhered membrane | Metal or wood trim piece |
| Water Protection | Seals bottom edges to prevent water entry | Prevents water from flowing down into the frame |
| Installation Complexity | Requires precise sealing and integration with flashing | Relatively simple trim installation |
| Key Benefits | Enhances drainage, reduces rot and mold risk at sills | Protects upper frames, reduces paint damage |
Introduction to Sill Pan and Drip Cap
A sill pan is a waterproof barrier installed beneath window sills to prevent water infiltration and direct moisture away from the building envelope. A drip cap is a small overhanging trim installed above doors and windows that diverts rainwater away from the top edge, reducing water entry risks. Both components protect structural integrity but serve different roles in managing water intrusion around openings.
Purpose and Function: Sill Pan vs Drip Cap
A sill pan provides a waterproof barrier that directs water away from window sills and prevents moisture intrusion into the wall assembly, ensuring long-term structural integrity. In contrast, a drip cap is installed above window or door frames to shed rainwater, reducing the risk of water infiltration by diverting runoff away from the vertical edges. Both components work together to enhance building envelope performance but serve distinct roles: sill pans protect the horizontal base, while drip caps guard the upper frame.
Key Differences Between Sill Pan and Drip Cap
Sill pans are waterproof barriers installed beneath window sills to prevent water infiltration and direct moisture away from the building envelope. Drip caps are protective flashing elements installed above windows and doors that divert rainwater away from the frame to reduce water damage. The key difference lies in their placement and function: sill pans manage water at the window base, while drip caps protect from overhead water exposure.
Installation Process: Sill Pan Compared to Drip Cap
Sill pans require precise measurements and careful sealing to create a waterproof barrier beneath window or door frames, preventing water infiltration at the base of the opening. Installation involves integrating the sill pan with flashing and ensuring proper slope for drainage, which is more complex compared to the straightforward placement of a drip cap that primarily directs water away from the top edge. Unlike drip caps that focus on shedding water over the exterior surface, sill pans provide a comprehensive waterproof base layer critical for long-term moisture management.
Material Options for Sill Pans and Drip Caps
Sill pans are commonly made from materials like PVC, aluminum, and galvanized steel, providing excellent durability and water resistance tailored for window and door installations. Drip caps typically utilize aluminum or vinyl, designed to direct water away from the siding with materials optimized for lightweight and corrosion resistance. Selecting the appropriate material depends on environmental exposure and installation requirements, ensuring effective moisture management and longevity.
Water Protection: Which Offers Better Defense?
Sill pans provide superior water protection by creating a continuous waterproof barrier at the base of windows and doors, effectively directing water away from the wall assembly to prevent infiltration and damage. Drip caps, while designed to deflect rainwater from the top edge of windows, lack the comprehensive sealing function that sill pans offer at the bottom sill, where water intrusion risks are highest. The enhanced defense of sill pans against water penetration makes them a preferred choice for long-term moisture control and structural integrity in building envelopes.
Cost Considerations: Sill Pan Versus Drip Cap
Sill pans generally involve higher initial costs due to custom fitting and waterproofing materials essential for preventing water intrusion at window bases. Drip caps are typically more affordable and easier to install but offer less comprehensive protection against water damage compared to sill pans. Investing in sill pans can reduce long-term repair expenses by enhancing durability and moisture management around window openings.
When to Use a Sill Pan Instead of a Drip Cap
A sill pan is essential when installing windows or doors at the base of an exterior wall to prevent water infiltration and direct moisture away from the structure, providing superior protection compared to a drip cap. Drip caps primarily deflect water above openings but do not address potential drainage issues beneath window or door sills, making sill pans necessary in areas prone to heavy rainfall or where proper flashing details are required. Opt for sill pans in new construction or renovations involving window or door replacement, especially in climates with frequent water exposure to ensure long-term structural integrity.
Building Code Requirements for Sill Pans and Drip Caps
Building codes require sill pans to prevent water intrusion at window and door sills by directing water away from the structure, ensuring moisture management and protecting framing components. Drip caps, used above windows and doors, are mandated to shed rainwater effectively, preventing water from entering wall assemblies through the head flashing area. Compliance with ASTM standards and local building codes ensures both sill pans and drip caps function correctly within the building envelope to prevent water damage and maintain structural integrity.
Choosing the Right Solution: Sill Pan or Drip Cap?
A sill pan provides superior water protection by creating a watertight barrier beneath window sills, preventing leaks and water damage. Drip caps, installed above windows and doors, redirect rainwater away but do not offer protection against water infiltration at the sill level. For areas prone to heavy moisture or where enhanced water management is critical, a sill pan is the more effective solution, while drip caps are suitable for redirecting surface water.

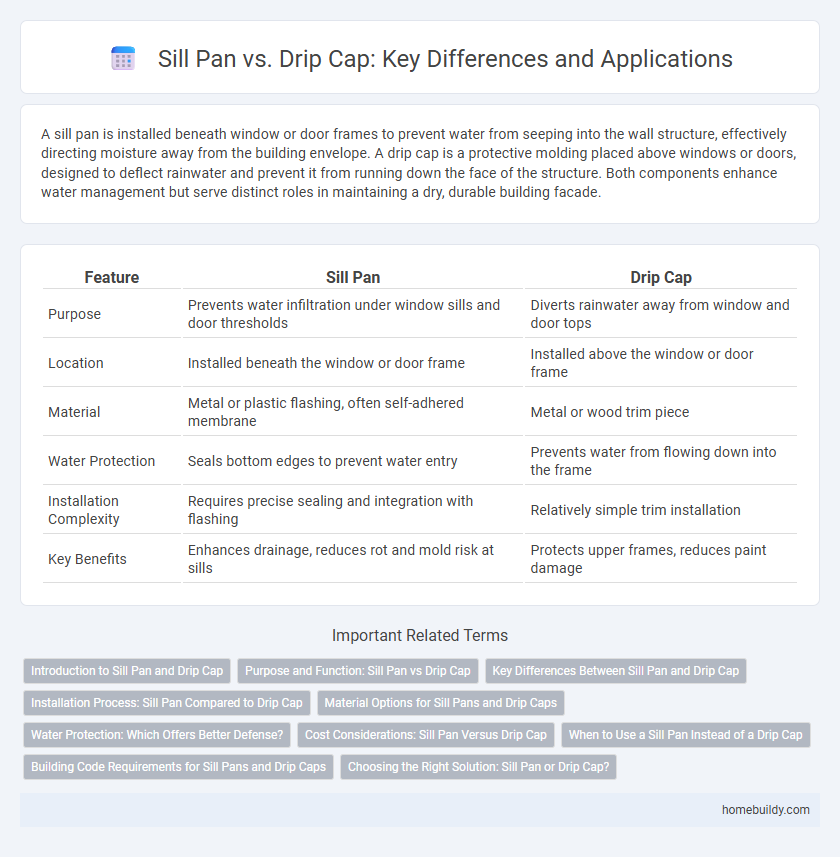

sill pan vs drip cap Infographic
