homebuildy.com A sill pan is a protective flashing installed at the base of window and door openings to prevent water infiltration, while an air barrier is a continuous material or system designed to control air leakage and improve energy efficiency in a building envelope. Both components are crucial for moisture management but serve different functions; the sill pan directs water out, and the air barrier restricts unwanted air movement. Proper integration of sill pans with air barriers enhances overall building durability and indoor comfort.
Table of Comparison
| Feature | Sill Pan | Air Barrier |
|---|---|---|
| Purpose | Prevents water intrusion at window and door sills | Blocks air leakage through building envelope |
| Location | Installed under window and door openings | Applied continuously on walls, roofs, and floors |
| Material | Typically rigid PVC, metal, or flexible flashing | Membranes, spray foam, or rigid boards |
| Function | Channels water to exterior drainage | Reduces energy loss by controlling airflow |
| Installation | Fitted precise to openings, sealed at edges | Continuous sealing across entire envelope |
| Impact on building | Prevents moisture damage and rot in framing | Improves indoor comfort and energy efficiency |
Understanding Sill Pans: Purpose and Importance
Sill pans are critical components in building envelopes designed to prevent water intrusion at window and door openings by directing moisture away from the structure. Unlike air barriers, which primarily control air leakage and improve energy efficiency, sill pans specifically address water management to protect framing and prevent mold growth. Proper installation of sill pans enhances durability and maintains the integrity of the building by creating a reliable drainage plane beneath openings.
What Is an Air Barrier? Functions and Benefits
An air barrier is a material or system designed to control airflow through the building envelope, preventing undesired air leakage and enhancing energy efficiency. Unlike a sill pan, which is specifically installed at window or door openings to manage water intrusion and drainage, an air barrier provides continuous protection against air infiltration across walls, ceilings, and floors. Effective air barriers improve indoor air quality, reduce energy costs, and increase overall building durability by minimizing moisture-related damage.
Sill Pan vs Air Barrier: Key Differences
Sill pans serve as physical drainage systems designed to channel water away from window and door openings, preventing moisture intrusion at the base of frames. Air barriers function as continuous membranes that control air leakage through the building envelope to enhance energy efficiency and indoor air quality. The key difference lies in their primary purpose: sill pans manage liquid water infiltration, while air barriers focus on controlling airflow and vapor diffusion within wall assemblies.
Common Materials Used in Sill Pans and Air Barriers
Common materials used in sill pans include PVC, metal, and rubberized membranes designed to prevent water infiltration at window and door openings. Air barriers typically utilize materials like house wraps, spray foam, and fluid-applied membranes to control airflow and improve energy efficiency. Selecting appropriate materials ensures optimal performance by combining water resistance from sill pans with air and vapor control from air barriers.
Installation Process: Sill Pan vs Air Barrier
The installation process of a sill pan involves placing a pre-formed or custom-fabricated waterproof barrier directly under the window or door sill to prevent water infiltration and manage drainage. In contrast, an air barrier is installed as a continuous membrane or coating around the building envelope to control air leakage and improve energy efficiency, often requiring meticulous sealing at joints and penetrations. While sill pans focus on localized water management during rough framing, air barriers require integration into the entire wall assembly for effective airtightness.
Moisture Management: Comparing Effectiveness
Sill pans provide a physical barrier that directs water away from window and door openings, effectively preventing moisture infiltration at the sill, while air barriers primarily control air leakage and reduce vapor diffusion but do not address bulk water intrusion as effectively. Moisture management in building envelopes relies on sill pans to mitigate water damage by channeling moisture out, whereas air barriers enhance overall energy efficiency by sealing gaps against air leakage. Combining both systems creates a synergistic approach where sill pans handle liquid water intrusion and air barriers reduce moisture-related risks from air movement and vapor permeation.
Energy Efficiency Impacts: Sill Pan and Air Barrier
Sill pans provide a critical waterproofing layer that prevents water infiltration at window and door openings, directly reducing moisture-related energy losses and enhancing building envelope durability. Air barriers control airflow and minimize air leakage, which is essential for maintaining consistent indoor temperatures and optimizing HVAC efficiency. Integrating both sill pans and air barriers maximizes energy efficiency by combining moisture management with airtight construction, leading to significant reductions in heating and cooling costs.
Building Code Requirements for Sill Pans and Air Barriers
Building codes such as the International Residential Code (IRC) and International Building Code (IBC) mandate the installation of sill pans to prevent water intrusion at window and door openings, requiring materials to be durable and continuous. Air barriers, governed by standards like ASTM E2357, focus on controlling air leakage and enhancing energy efficiency by sealing the building envelope, often integrated with vapor barriers. Compliance with both sill pan and air barrier requirements ensures moisture control and energy performance, reducing risks of structural damage and improving occupant comfort.
Cost Analysis: Sill Pan vs Air Barrier
Sill pans generally have a lower initial installation cost compared to air barriers due to simpler materials and faster application processes, making them a cost-effective solution for preventing water intrusion at window openings. Air barriers often require more specialized materials and skilled labor, which increases upfront costs but can provide superior long-term energy savings by enhancing building envelope performance. Evaluating life-cycle costs reveals that sill pans reduce short-term expenses, while air barriers may offer greater return on investment through improved thermal efficiency and reduced maintenance over time.
When to Use Sill Pans, Air Barriers, or Both
Sill pans provide critical waterproofing at window and door openings by directing water away from the framing, making them essential in areas prone to moisture intrusion. Air barriers control airflow and improve the building's energy efficiency and indoor air quality, typically installed around the entire building envelope. Use sill pans in conjunction with air barriers when enhanced moisture management and airtightness are necessary, especially in high-humidity or heavy-rain regions for optimal protection.

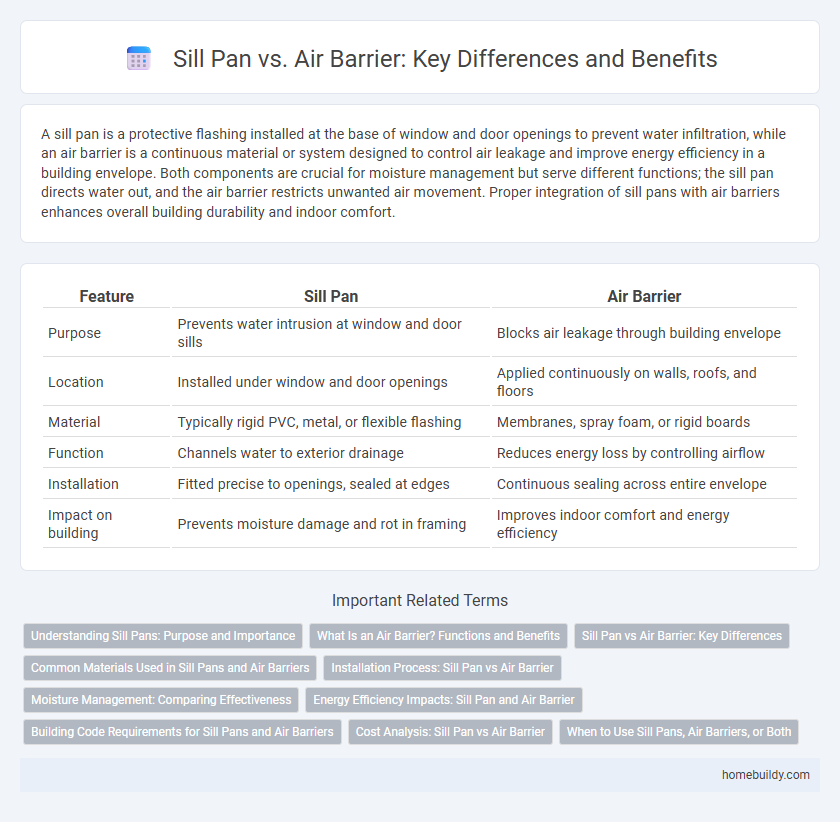

sill pan vs air barrier Infographic
